Summary of Contents for Surpass SP-16AMC

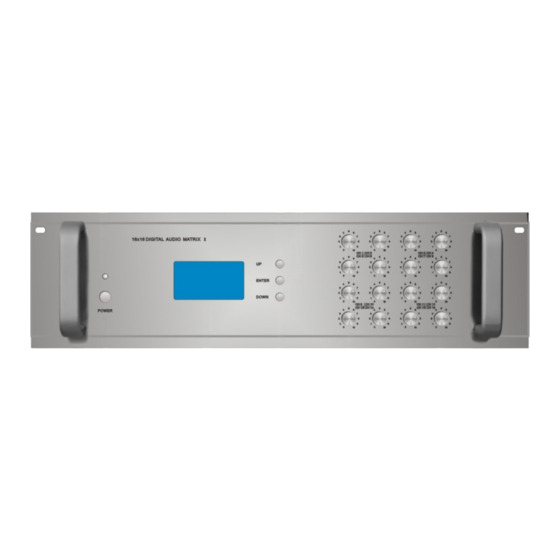

- Page 2 16x16 Digital Audio Matrix SPECIFICATION Features: MODEL SP-16AMC 1．16-channel audio input &16-channel output； LINE input 16 channel:1~F can be connected randomly,EMC2 for emergency broadcast 2．Each channel has independent volume control knob； MIC input RMIC1~RMIC5：10k ohms(Ω) 10V ,balanced input 3．16 extension jack for linking with more audio matrix.
- Page 3 ⑹ ENTER ⑺ Channel: CH1～CH16 volume control knob ⑴ ⑵ ⑶ ⑷ 4．Operation diagram INPUT EMC 2 RMIC 5 RMIC 4 RMIC 3 RMIC 2 RMIC 1 ADDRESS Alarm signal LINK OUT MASTER POWER CONTROL ACTIVE CONTROL POWER ALARM IN CH 8 CH 7 CH 6...
- Page 4 power is on. diagram is below: 3) Check working status The first two lines of the interface displays the selected audio sources of channel CH1~CH16. The third line displays start time of the program and the last line displays current date and time. paging Mic1 paging Mic5 Off off off off off off off off...
- Page 5 and diagram is as below: MODE manual control set channel 01 confirm cancel It's main equipment if MODE switched to "M" and "S" for slave. 15) Alarm function Select audio sources of channel 1 It can check and switch the signal to the 16th audio source automatically if Users can select channels by "UP"&"DOWN", it will display the selected there's emergency signal input.(The 16th audio source can be used for alarm channel and 0~F are available.
- Page 6 add record Confirm Cancel Set off-day Edit program 10) Set holiday ① Enter "add record" and select date(within a week/month) to set timing The timing program doesn't work during holiday. There are three record. It will enter setting interface directly if under date cycle mode.. Use submenus: "add","delete"...
