- Page 1 TX80 Urba / TX80 Urba One USER MANUAL...
-
Page 2: Table Of Contents
INTERFACOM, S.A.U. INDEX CONTROL PANEL ........................2 SWITCHING THE TAXIMETER ON................... 3 TRIP SEQUENCE ........................4 3.1. HIRED POSITION ......................4 3.2. ADDING EXTRAS IN HIRED ....................4 3.3. STOPPED POSITION ......................4 3.4. ENTERING EXTRAS IN STOPPED ................... 5 3.5. -
Page 3: Control Panel

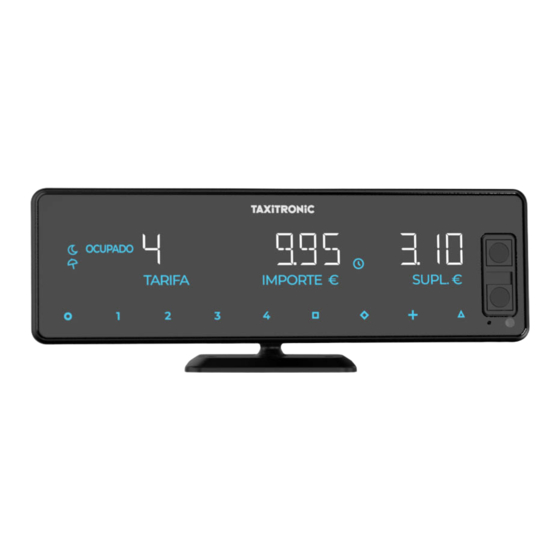

INTERFACOM, S.A.U. 1. CONTROL PANEL Indicates the rooflight status Indicates if it is a night rate Indicates if it is a holiday rate Indicates if a passenger is seated Indicates the status of the taximeter (for hire status) Indicates the status of the taximeter (hired status) Indicates the status of the taximeter (stopped status) Indicates if the taximeter is linked by Bluetooth with any app Indicates if there is GPS signal... -
Page 4: Switching The Taximeter On
INTERFACOM, S.A.U. 2. SWITCHING THE TAXIMETER ON. Taximeter OFF. Press the O key to turn the Taximeter ON. If a password is required, the second point in the status display will blink, waiting for the introduction of the code. If no password is required, or once the correct code is entered, the taximeter goes to ON. -
Page 5: Trip Sequence
INTERFACOM, S.A.U. 3. TRIP SEQUENCE 3.1. HIRED POSITION Press 1 , 2 , 3 or 4 key to start the right tariff. Δ For tariffs 5, 6, 7 and 8, first press the key, and then press key 1 , 2 , 3 or 4 . 3.2. -
Page 6: Entering Extras In Stopped
INTERFACOM, S.A.U. 3.4. ENTERING EXTRAS IN STOPPED By pressing key the text STOPPED will start flashing. Δ Add the extras by pressing keys 1, 2, 3 or 4. For extras 5, 6, 7 and 8, press the key, and then press key 1, 2, 3 or 4. -
Page 7: End Trip
INTERFACOM, S.A.U. 3.7. END TRIP By pressing key . The status will start to blink for some seconds, until the taximeter switches to FOR HIRE. 3.8. PRINT A TICKET By pressing while the status indication is blinking, the trip receipt will be printed. Copies of the receipt can be printed by pressing key again. -
Page 8: Display Last Trip Data
INTERFACOM, S.A.U. 4. DISPLAY LAST TRIP DATA Only works when the car is stopped. While in FOR HIRE, press the key. The taximeter will show the following data successively: - The Fare amount and Extras - The duration of the trip: Hours and minutes. - The trip distance in kilometers. -
Page 9: Totalizers Sequence
INTERFACOM, S.A.U. 5. TOTALIZERS SEQUENCE Only works when the car is stopped. 5.1. ACCUMULATIVE TOTALIZERS By pressing key the first totalizer is shown. Press key to print the totalizers. By pressing again key the next figures of the total will be displayed. The totalizers sequence can be aborted at any moment by pressing the After few seconds, if the key is not pressed, it switches to the next total, following the next list. -
Page 10: Daily Totalizers
INTERFACOM, S.A.U. 5.2. DAILY TOTALIZERS After the accumulated totalizers, the daily totalizers are showed by continuing pressing the according to the next list. Press key to print the totalizers. By pressing again key the next figures of the total will be displayed. The totalizers sequence can be aborted at any moment by pressing the key - 1. -
Page 11: For Hire Menu
INTERFACOM, S.A.U. 6. FOR HIRE MENU In FOR HIRE, by pressing the key you access to the FOR HIRE MENU. 6.1. TURN OFF If shift control is not enabled, press key to turn off the taximeter. To turn it back on, press the key. -
Page 12: Turn Off
INTERFACOM, S.A.U. 6.2.1. TURN OFF If there is no interaction with the taximeter in the closed shift state, it turns OFF after a few seconds. It turns to shift closed again pressing the key, or when the vehicle starts to move. 7. -
Page 13: Date And Time Visualization
INTERFACOM, S.A.U. 7.2.1. DATE AND TIME VISUALIZATION The display of date and time is the first option shown. By pressing key if shift control enabled, the remaining time and the available breaks will appear. If the shift control is not enabled, it will directly show the time. By pressing key it switches to FOR HIRE. -
Page 14: Volume
INTERFACOM, S.A.U. By pressing key or after few seconds it switches to FOR HIRE. 7.2.2. VOLUME Δ By pressing key after light setting. By pressing key to set the volume of the beep. The circular indicator shows the selected intensity. By pressing changes the beep mode. -
Page 15: Taximeter Control Blocks Visualization
INTERFACOM, S.A.U. 7.2.4. TAXIMETER CONTROL BLOCKS VISUALIZATION Δ By pressing key after test sequence. By pressing key or after few seconds it switches to FOR HIRE. 7.2.4.1. BLOCK 1 VISUALIZATION Displays the current K Constant. Press key for going to the next visualization or it goes automatically after few seconds: - C.1 Current "K"... - Page 16 INTERFACOM, S.A.U. In case the shift control is set: - C.C Shift duration on weekdays - C.d Shift duration on weekends and holidays - C.E Remaining time of the current shift Press key to print the control blocks. BLOCK 2 VISUALIZATION Car License number.
- Page 17 INTERFACOM, S.A.U. 7.2.4.2. BLOCK 3 VISUALIZATION State led tariff 1 indication Press key for going to the next visualization or it goes automatically after few seconds. The data displayed in the block 3 are the following: - I.1 State led tariff indication - b.1 Flag drop - M.1 Meters first drop...
-
Page 18: Urba Control Blocks Visualization
INTERFACOM, S.A.U. Once the blocks visualization is finished, parameters of the versions are shown. - Pr Date of the update and taximeter version - Pr User who updated it and checksum - tF Date of the update and tariff Date of the update and constant - Po Date and time of power failures. - Page 19 INTERFACOM, S.A.U. 7.2.5.1. BLOCKS VISUALIZATION Serial number. Press key to go to the next visualization, or automatically after few seconds: - E.1 Urba serial number - E.2 Hardware version - E.3 Metrological version - E.4 Metrological checksum - E.5 Non metrological version - E.6 Shift control Checksum - Pr...
-
Page 20: Language Settings
INTERFACOM, S.A.U. 7.2.6. LANGUAGE SETTINGS Δ By pressing key after Urba control blocks visualization. By pressing key or after few seconds it switches to FOR HIRE. By pressing key to select the language. 7.2.7. TEST LUMINOSO EXTERNO Δ By pressing key after language settings visualization. -
Page 21: Error Messages
