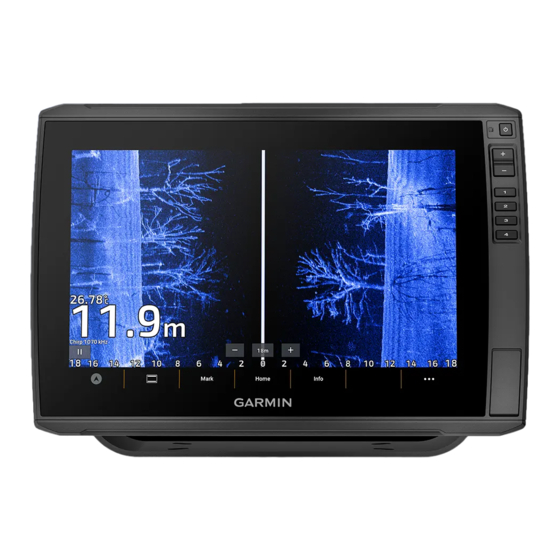

Garmin ECHOMAP ULTRA 2 Installation Instructions Manual

Important Safety Information
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or
product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product
specifications. Connecting the power cable without the appropriate fuse in place voids the product warranty.
Failure to install this device according to these instructions could result in personal injury, damage to the vessel
or device, or poor product performance.
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
To avoid possible personal injury or damage to the device and vessel, disconnect the vessel's power supply
before beginning to install the device.
To avoid possible personal injury or damage to the device or vessel, before applying power to the device, make
sure that it has been properly grounded, following the instructions in the guide.
To avoid possible personal injury or damage to this device and vessel, only install this device when the vessel is
on land, or when properly secured and docked in calm water conditions.
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Read all installation instructions before proceeding with the installation. If you experience difficulty during the
installation, contact Garmin
Tools Needed
• Drill
• Drill bits
◦ Bail mount: drill bits and screws appropriate for the surface and hardware
◦ Flush mount: 3.2 mm (
• #2 Phillips screwdriver
• Jigsaw or rotary tool
• File and sandpaper
• Marine sealant (optional)
October 2023
ECHOMAP
INSTALLATION INSTRUCTIONS
® Product Support.
1 3
/ in.) and 9.5 mm ( / in.) drill bits
8 8
ULTRA 2
™
WARNING
CAUTION
NOTICE
GUID-1580D9B7-F2D2-4EBF-A08A-B7A34B2EDD65 v1
