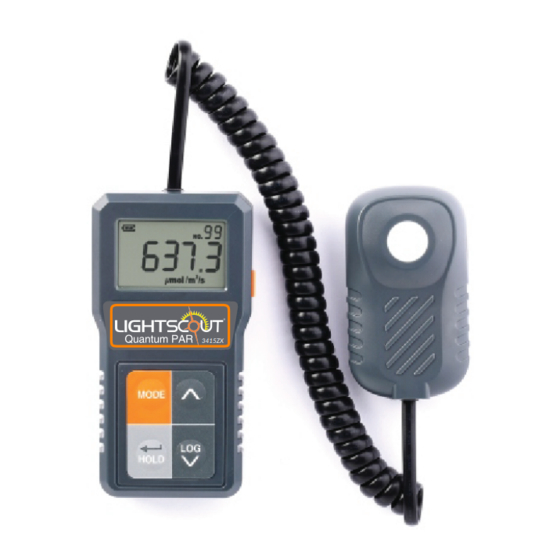

- Page 1 LightScout ® Quantum PAR Meter Product Manual 3415ZX 3415ZX...
- Page 2 INTRODUCTION Thank you for purchasing this accurate full-spectrum PAR meter. It is designed to measure Photosynthetically Active Radiation (PAR) in the wavelength range from 400nm to 700nm. There is a proportional relationship between the number of photons absorbed in 400nm to 700nm and the rate of photosynthesis in plants, which is important for horticultural studies and monitoring plant physiology.
-
Page 3: Material Supplied
MATERIAL SUPPLIED This Package Contains: • Meter • PAR Sensor • Straight RJ11 Cable • Coiled RJ11 Cable • Selfie Stick • 2 AAA Batteries • Hard Carrying Case • Product Manual LCD DISPLAY PAR value PAR units Logged readings or hold icon (“H”) Zero calibration icon Log recall icon Restore to factory setting icon... - Page 4 KEYPAD POWER 3415ZX • Press to turn meter on • Press for 3 seconds to turn off • Auto power off when keypad is idle for 5 minutes • Press to freeze reading • Press again to release • Press to record reading •...
- Page 5 OPERATION QUICK GUIDE PREPARATION Install (2) AAA Batteries Using either included RJ11 cable, connect the PAR sensor with the meter 3415ZX 3415ZX POWER ON/OFF Press the orange power button on the right side to turn the meter on Press and hold the orange power button for 3 seconds to turn off...
- Page 6 MEASUREMENT Using either included RJ11 Cable, connect the PAR Sensor to the meter. Face the white PAR disk towards the light source that you want to measure. If the area you are in is too dim to see the reading, press the HOLD button to freeze the reading and view under brighter light.
-
Page 7: Zero Calibration
ZERO CALIBRATION After using the meter regularly, you can re-calibrate it if the measured value is not zero in a completely dark room. Make sure the PAR sensor is fully covered while you plan to execute zero function. Press the MODE button and choose CALI. -
Page 8: Maintenance
MAINTENANCE While measuring, ensure the white PAR sensing area is uncovered and facing the light source. After usage, clean the surface with a cloth and keep dry for storage. Store in the hard carrying case provided to avoid scratches and dust. WARNING: Don’t immerse the sensor or meter in water. -
Page 9: Specification
SPECIFICATION... -
Page 10: Warranty
WARRANTY This product is warranted to be free from defects in material or workmanship for one year from the date of purchase. During the warranty period Spectrum will, at its option, either repair or replace products that prove to be defective. This warranty does not cover damage due to improper installation or use, lightning, negligence, accident, or unauthorized... -
Page 11: Additional Products
ADDITIONAL PRODUCTS WEATHER MONITORING WatchDog Wireless Weather Stations ® WatchDog Station Data Loggers WatchDog Micro Weather Stations WatchDog A&B Series Data Loggers WatchDog Sensors & Accessories WatchDog Sprayer Station WatchDog Portable Wind Sensor SpecWare Software SpecConnect Cloud Service IPM/PLANT HEALTH Full Spectrum Quantum PAR/DLI Light Meters LightScout... - Page 12 UK EMC - Electromagnetic Compatibility Regulations 2016 Standards: EN 61326-1 (2013)/BS EN 61326-1 (2013) (IEC 6100-4-2 Ed.2.0 (2008)/-3 ED.4.0 (2020)/-8 ED.2.0 (2009)) www.specmeters.com info@specmeters.com 800.248.8873 815.436.4440 Form 147 (23-141) 5/2023 WatchDog, LightScout, FieldScout and WaterScout are registered trademarks of Spectrum Technologies, Inc.
