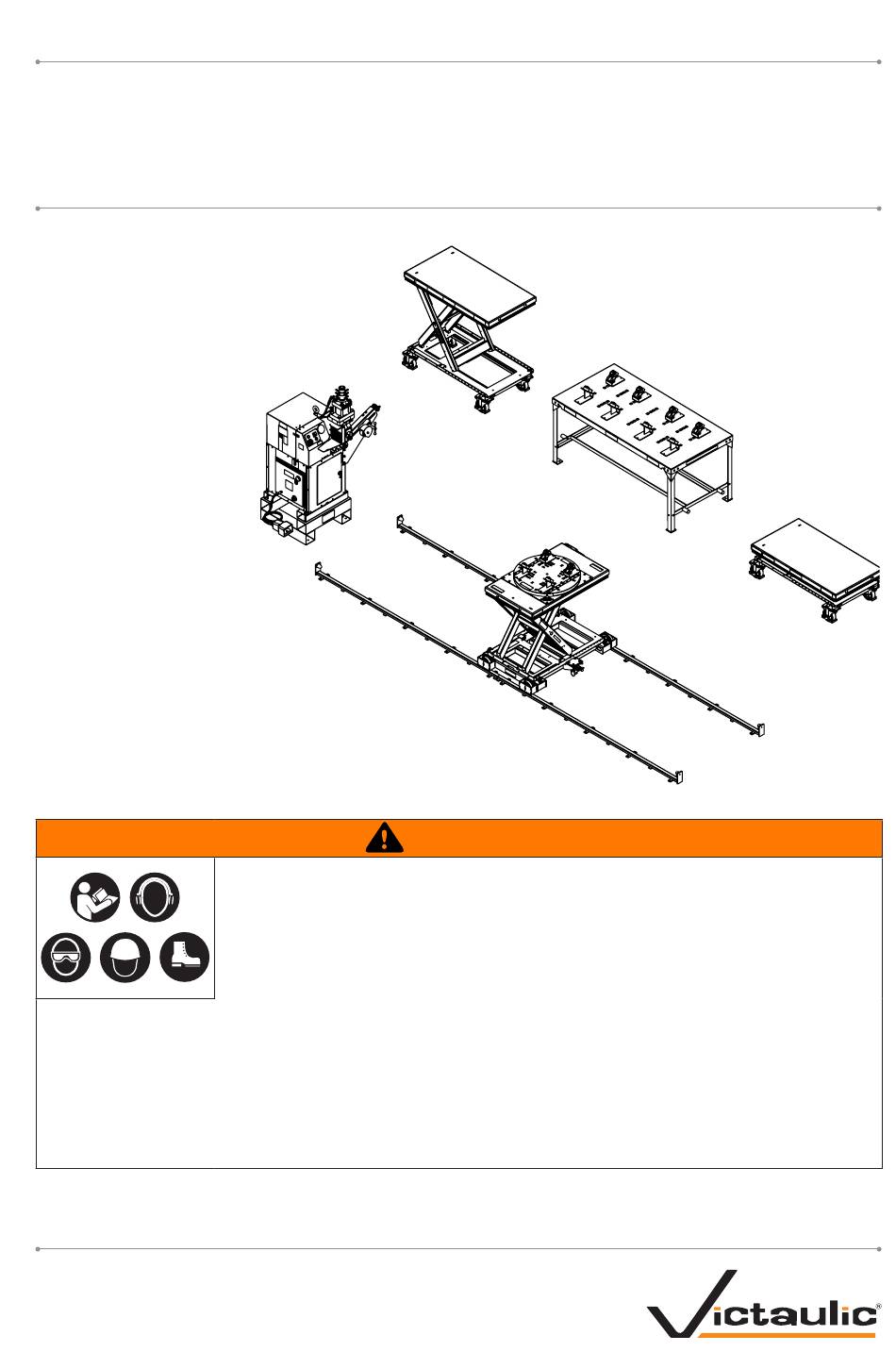

OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL
Series VAP131 Victaulic Lean Fabrication Cell for European Market
VAP131R VICTAULIC HYDRAULIC, ADJUSTABLE PIPE STAND
VAP131F VICTAULIC HYDRAULIC POSITIONER
VAP131T VICTAULIC ASSEMBLY TABLE
• Wear safety glasses, hardhat, foot protection, and hearing protection while working around pipe
preparation tools.
• Save the operating and maintenance manual in a place accessible to all operators of the tool.
If you need additional copies of any literature, or if you have questions concerning the safe
and proper operation of any pipe preparation tools, contact Victaulic, P.O. Box 31, Easton, PA
18044-0031, Phone: 1-800-PICK VIC, E-Mail: pickvic@victaulic.com
TM-VAP131.EUR REV_A
Failure to follow instructions and warnings could result in death or serious
personal injury, property damage, and product damage.
• Before operating or servicing any pipe preparation tools, read all
instructions in the operating and maintenance manual and all warning
labels on the tool.
Original Instructions
WARNING
TM-VAP131.EUR
