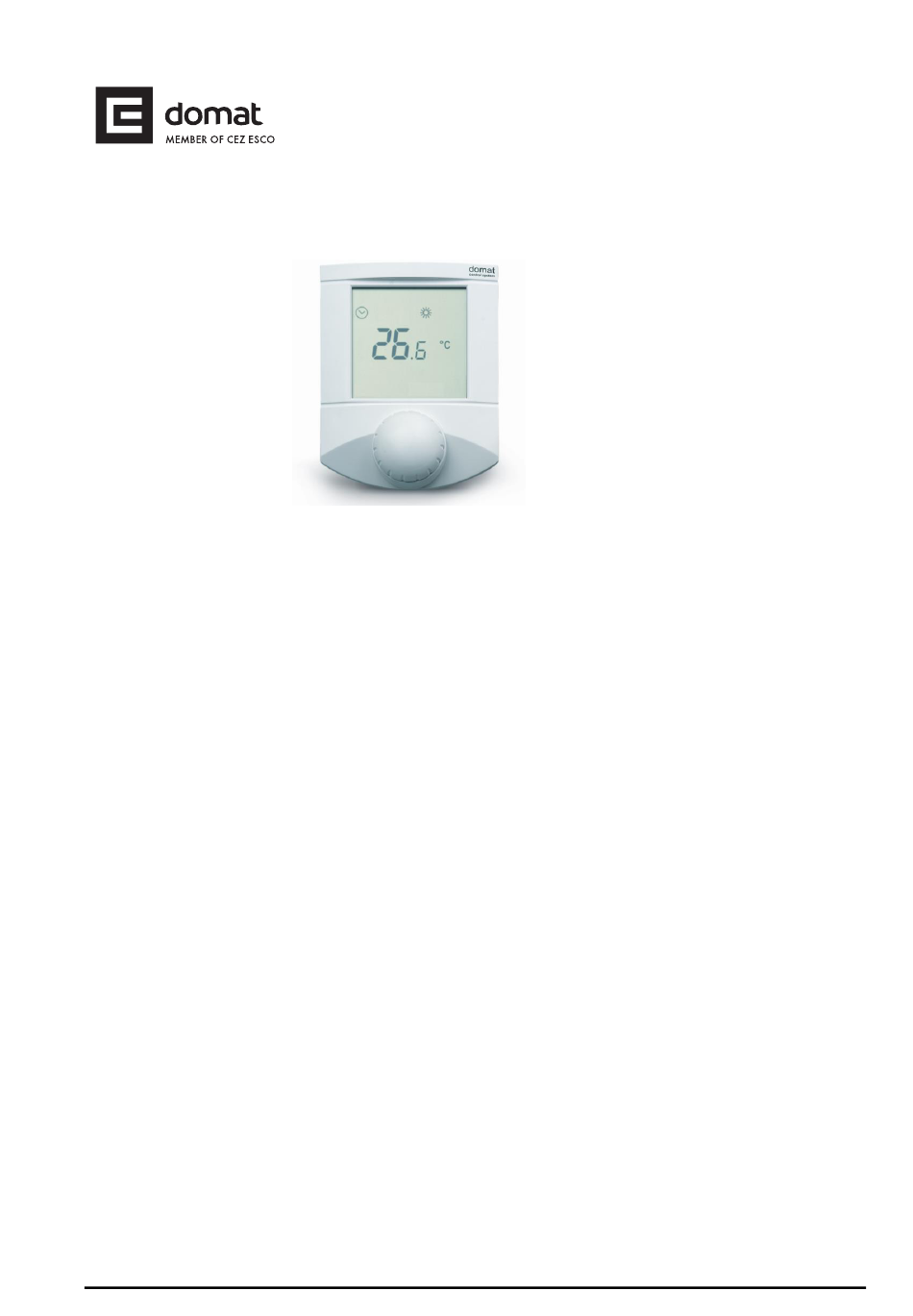

UB200
Summary
UB200 is a communicative room heating controller with two inputs and two on-
off/PWM outputs for control of a radiator or electrical heater and a cooling valve
(cooling panels, chilled ceilings). It can work autonomously, or in connection to a
primary controller or building management system over BACnet MS/TP.
•
Application
•
Function
The controller reads actual room temperature, setpoint shift by a knob, and set operation
status which is set by short push of the knob. The room temperature is measured in the
range of 0 to +50 °C. Measured and set values are processed in a PI algorithm, at the
output of which there is a PWM controlled triac. All values are displayed on a large LCD
display.
The controller contains real time clock with a weekly scheduler (6 events per day). It
changes between three operation modes: Day, Night, and Off. A short push in the Night
mode switches to Party mode – Comfort extension by 2 hours.
The digital inputs read signals from a window contact and presence sensors. They can be
used optionally.
The communication bus is RS485 with BACnet MS/TP protocol, therefore the controllers
are easily to integrate into most of the up-to-date SCADA or BMS system. See the BACnet
PICS in Annex 1 below.
domat UB200
Communicative heating and cooling controller,
BACnet MS/TP
Systems with radiators, electric heaters, or floor heating, and chilled
ceilings or panels – control and measuring of room temperature
monitoring and communication of room temperatures
10/2023 Subject to technical changes.
1
Advertisement
Related Manuals for domat UB200
Summary of Contents for domat UB200
- Page 1 BACnet MS/TP Summary UB200 is a communicative room heating controller with two inputs and two on- off/PWM outputs for control of a radiator or electrical heater and a cooling valve (cooling panels, chilled ceilings). It can work autonomously, or in connection to a primary controller or building management system over BACnet MS/TP.
- Page 2 4: DO2 cooling output (24 V against G0) 5: G0 power, inputs, outputs – reference point 6: G0 power, inputs, outputs – reference point 7: G power 8: K- communication RS485 - 9: K+ communication RS485 + domat UB200 10/2023 Subject to technical changes.
-
Page 3: Installation
The bottom should be installed and cabling connected first, and the upper part inserted after the construction works have been finished to prevent damage to the unit. domat UB200 10/2023 Subject to technical changes. - Page 4 Turn the knob clockwise to increase setpoint, turn it counterclockwise to decrease setpoint. The maximum correction range can be modified over the bus e.g. with the domat.exe configuration tool. Operation mode change: Push the knob shortly (<1 s). Each push changes the operation mode to Party – Day –...
- Page 5 The device contains a non-rechargeable battery which backups the real-time clock and part of the memory. After the device is not operable, please return it to the manufacturer or dispose of it in compliance with local regulations. domat UB200 10/2023 Subject to technical changes.
- Page 6 BACnet Protocol Revision: 135-2001 (1) Product Description: The UB200 series BACnet communicating thermostat have been specifically designed for integrated room controls of heating and cooling applications (radiators, cooling panels) to be monitored on a BACnet MS-TP® network. BACnet Standardized Device Profile (Annex L): ...
- Page 7 Description System Status Vendor Name Vendor Identifier Model Name Firmware Revision Protocol Version Location Services Supported Object Types Supported Object List domat UB200 10/2023 Subject to technical changes.
- Page 8 Out Of Service Priority Array Priority For Writing List Of Object Property References Effective Period Date List domat UB200 10/2023 Subject to technical changes.
- Page 9 SP day/comfort Cooling Cel. / Fahr. Day/comfort mode cooling temperature set point set by user SP night/ pre comfort Cel. / Fahr. Night/standby mode cooling temperature Cooling set point set by user domat UB200 10/2023 Subject to technical changes.
- Page 10 Reg. add Occupancy Input closed/opened Hardware digital input (physical 7 MSB-0 level) Window Input closed/opened Hardware digital input (physical 7 MSB-1 level) Heating request demanded/satisfied Heating request PID heating > 5% 7 MSB-2 domat UB200 10/2023 Subject to technical changes.
- Page 11 BV10 N.O./N.C. 26 MSB-2 sense Window Input sense BV11 N.O./N.C. 26 MSB-3 SWST* BV12 Edit / lock Specified trigger for one time system settings changing permission. Daylight saving BV13 enabled/disabled Power restart needed domat UB200 10/2023 Subject to technical changes.
- Page 12 23 LSB -1 mode Depression 3 - Depression (empty house) 23 LSB -2 Auto 4 - Auto (clock) 23 LSB -3 Party 5 - Party (after 2 hrs go to auto) 23 LSB -4 domat UB200 10/2023 Subject to technical changes.
- Page 13 Min day, night, depression temp AV14 Cel. / Fahr. 0°C / °F 100°C / °F 10°C / 50°F Max day, night, depression temp AV15 Cel. / Fahr. 0°C / °F 100°C / °F 40°C / 104°F domat UB200 10/2023 Subject to technical changes.
- Page 14 DBCS ISO 10646 (UCS-2) ISO 10646 (UCS-4) JIS C 6226 If this product is a communication gateway, describe the types of non-BACnet equipment/networks(s) that the gateway supports: _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ domat UB200 10/2023 Subject to technical changes.
- Page 15 10/2015 – From firmware version 102 is supported unit Fahrenheit degree and Changes in internal time scheduler. versions 05/2018 – Change technical data. 10/2023 – Change of the logo domat UB200 10/2023 Subject to technical changes.
