Q U I C K I N S T A L L G U I D E - E N
Enphase Commercial Cell Modem Kit
Installation Guide
This guide provides instructions on installing the Enphase Commercial Cell Modem Kit with the Enphase IQ Gateway
Commercial 2 for North America. This guide is intended for use by professional installation personnel. For information
about the IQ Gateway Commercial 2, refer to the Installation and Operation Manual. Read all safety warnings before
installing the Enphase Commercial Cell Modem Kit.
Installing Enphase Commercial Cell Modem Kit
Enphase
Installer App
The Enphase Commercial Cell Modem Kit is a modem package that
connects to the Enphase IQ Gateway Commercial 2 and eliminates
the need for an onsite internet connection to monitor an Enphase
IQ Commercial Microinverter System. The addition of this kit to an
Enphase Energy System enables greater installation flexibility and provides
reliable system monitoring independent of the internet service onsite.
The Enphase Commercial Cell Modem Kit is preconfigured for data service
and becomes activated when connected to the IQ Gateway Commercial 2
and powered up.
About the Commercial Cell Modem Kit
The IQ Gateway Commercial 2 paired with the Commercial Cell Modem Kit
provides plug-and-play connectivity to the Enphase Installer Platform. The
Enphase Commercial Cell Modem Kit includes the following:
• Cradlepoint IBR200 cell modem with five-year M2M T-Mobile data
plan
• AC Receptacle to supply power to the modem
• Weatherproof NEMA Type 4X-rated enclosure with mounting
hardware
Visit the T-Mobile website for a detailed coverage map. The basic cell
modem plan is available for systems of up to 276 Enphase IQ Commercial
Microinverters.
The Enphase Commercial Cell Modem Kit cannot be transferred to a
different IQ Gateway after initial installation. Any attempt to do so will
deactivate the modem.
(Model: CELLMODEM-C1-01-TM-05)
Installation guidelines
© 2024 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at
https://enphase.com/trademark-usage-guidelines
1. Cut the straps and remove the box of accessories.
2. Refer to the enclosed instructions to mount the hardware.

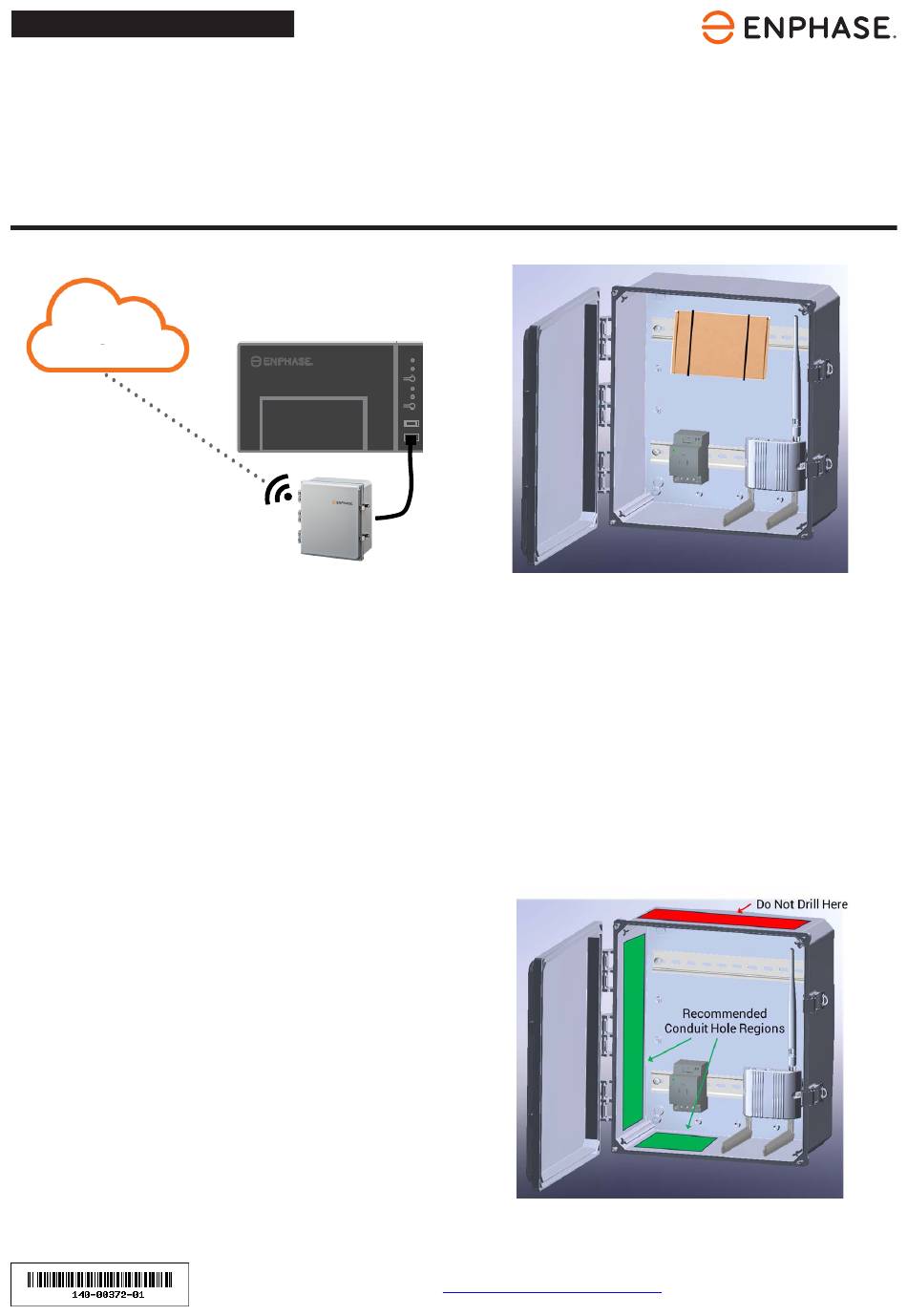

3. Drill access holes for the power and network cable conduits. See
the following image for recommended conduit holes and keep-out
regions. Follow the local code requirements.
4. Connect the Wi-Fi antenna to the IBR200. Finger-tighten only.
5. Wire AC power to the receptacle: Single-phase 120 V, 60 Hz, 15 A
branch maximum.
6. Connect the DC power supply to the IBR200 and plug it into the AC
receptacle.
7. Connect an Ethernet cable from the IBR200 to the IQ Gateway
Commercial 2.
