Enphase IQ Commercial Cellular Modem Kit
installation guide
This guide provides instructions on installing the IQ Commercial Cellular Modem Kit with the
Enphase IQ Gateway Commercial 2. This guide is intended for use by professional installation personnel. For information about
the IQ Gateway Commercial 2, refer to the installation and operation manual. Read all safety warnings before installing the
IQ Commercial Cellular Modem Kit.
Disclaimer: The components in the IQ Commercial Cellular Modem Kit (the "Kit") are not pre-wired. Only a qualified worker (as defined by NEC)
may carry out the final wiring and installation of the components and any additional components placed inside or connected to the Kit. The
wiring and installation must comply with NEC regulations and all other applicable requirements of the Authority Having Jurisdiction (AHJ).
Installing IQ Commercial Cellular Modem Kit

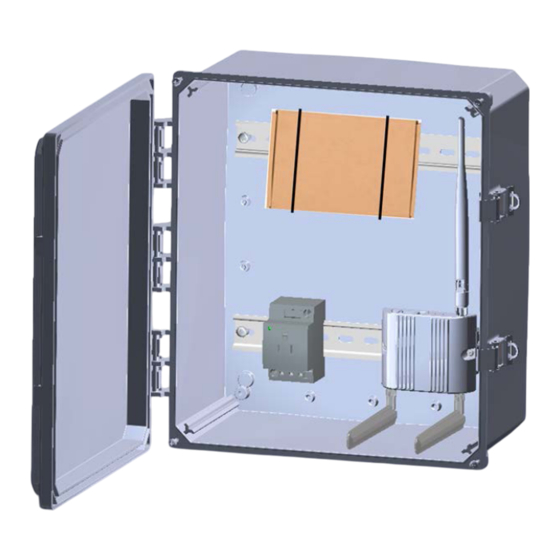

The IQ Commercial Cellular Modem Kit is a modem package that
connects to the IQ Gateway Commercial 2 and eliminates the need for
an onsite internet connection to monitor an IQ Commercial Microinverter
system. The addition of this kit to an Enphase Energy System enables
greater installation flexibility and provides reliable system monitoring
independent of the internet service onsite.
The IQ Commercial Cellular Modem Kit is preconfigured for data service
and becomes activated when connected to the IQ Gateway Commercial 2
and powered up.
About the IQ Commercial Cellular Modem Kit
The IQ Gateway Commercial 2 paired with the
IQ Commercial Cellular Modem Kit provides plug-and-play connectivity
to the Enphase Installer Platform. The IQ Commercial Cellular Modem Kit
includes the following:
• Cradlepoint IBR200 cell modem with 5-year M2M T-Mobile data
plan
• AC Receptacle to supply power to the modem
• Weatherproof NEMA Type 4X-rated enclosure with mounting
hardware
Visit the T-Mobile website for a detailed coverage map. The basic cell
modem plan is available for systems of up to 276
IQ Commercial Microinverters.
The IQ Commercial Cellular Modem Kit cannot be transferred to a different
IQ Gateway after initial installation. Any attempt to do so will deactivate the
modem.
(Model: CELLMODEM-C1-01-TM-05)
Installation guidelines
© 2024 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed
at https:/ /enphase.com/trademark-usage-guidelines
1. Cut the straps and remove the box of accessories.
2. Refer to the enclosed instructions to mount the hardware.

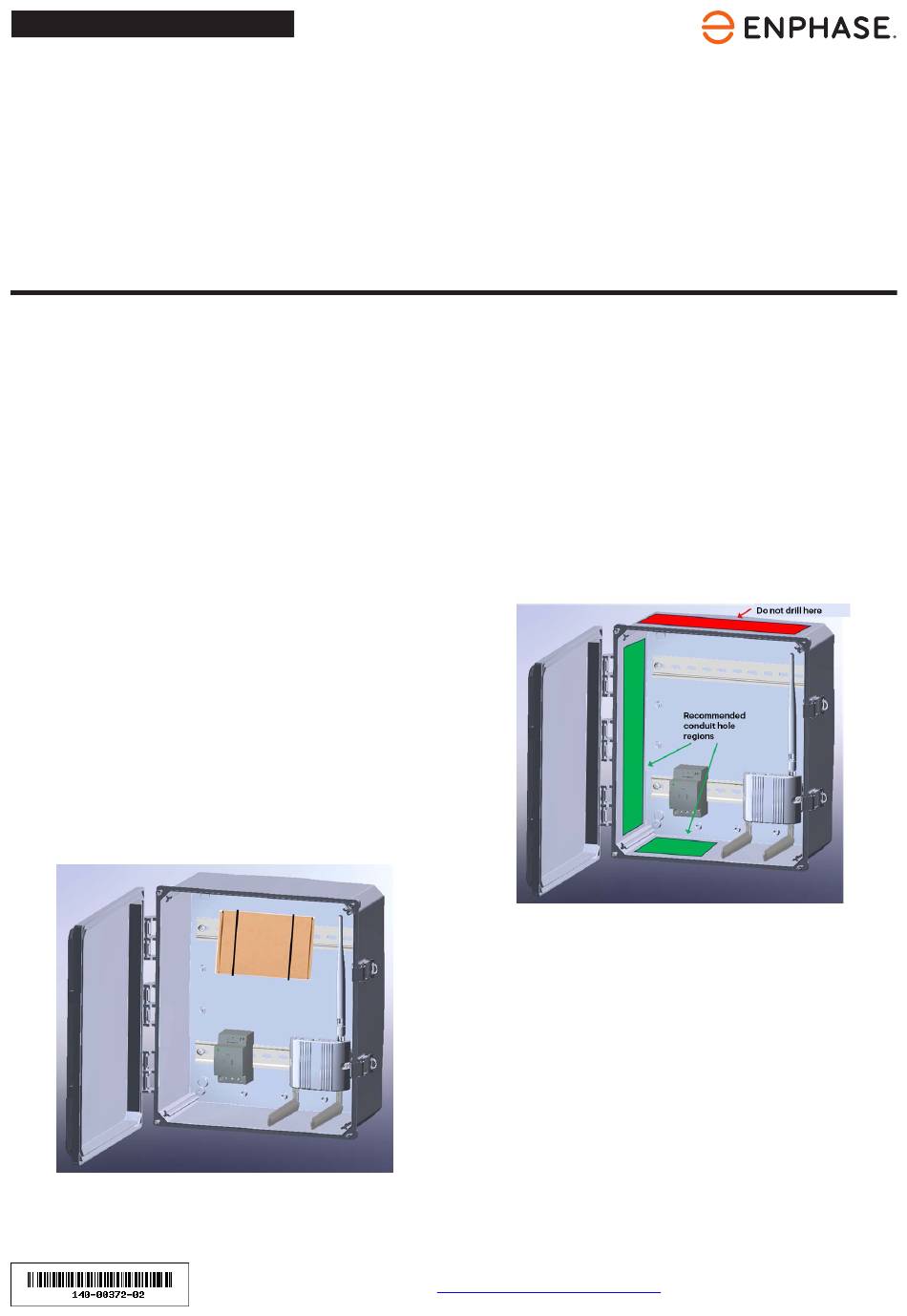

3. Drill access holes for the power and network cable conduits. See
the following image for recommended conduit holes and keep-out
regions. Follow the local code requirements.
4. Connect the Wi-Fi antenna to the IBR200. Finger-tighten only.
5. Wire AC power to the receptacle: Single-phase 120 V, 60 Hz, 15 A
branch maximum.
6. Connect the DC power supply to the IBR200 and plug it into the
AC receptacle.
7. Connect an Ethernet cable from the IBR200 to the
IQ Gateway Commercial 2.
are trademarks of Enphase Energy, Inc. in the U.S. and
