Summary of Contents for BlastPro BRB-2600

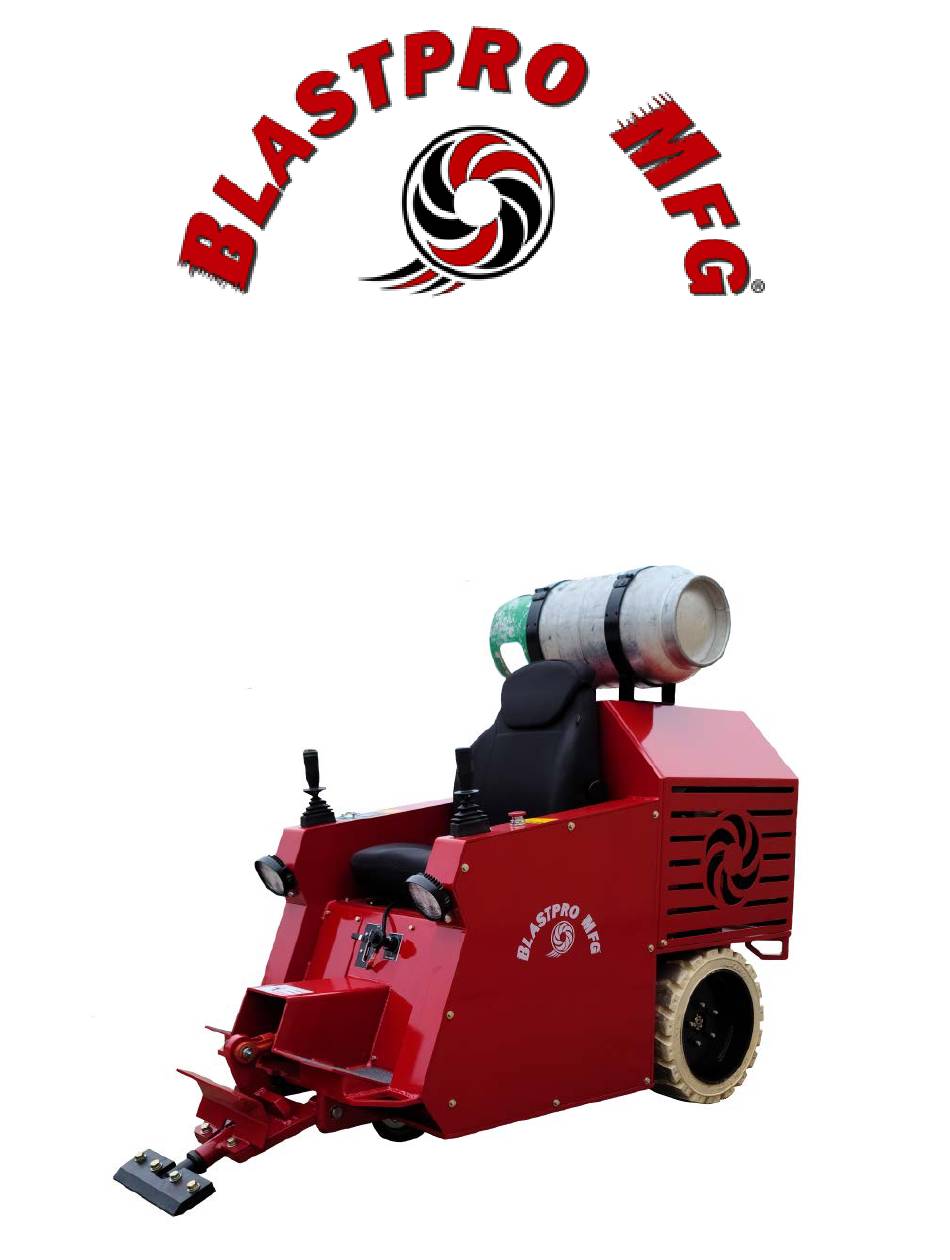

- Page 1 BRB-2600 MACHINE MANUAL...
-
Page 2: Table Of Contents
Table of Contents Applications ........................3 Specifications ........................3 Manufacturer ........................3 General ..........................3 Maintenance and wear part replacement modes ............4 Work site assessment and inspection................4 Personal protective equipment (ppe) ................6 Operational Procedures ....................6 Start-Up Procedures ......................6 Shut Down Procedures .................... -
Page 3: Applications
VCT. A wide variety of tools are available from Blastpro® for your specific application. In general, this machine uses sharpened spring steel blades along with the weight of the machine itself to perform the scraping function. -
Page 4: Maintenance And Wear Part Replacement Modes
An odorless, tasteless, and non-irritating gas, carbon monoxide can quickly become lethal. As a result, ® © 2011 Blastpro Manufacturing Inc. - Page 5 Disturbing such surfaces can create a serious health threat to those who inhale or come into contact with the dust. The work area must be checked for these materials before work can begin. Blastpro does not warrant its equipment to be suitable for, or approved for, removing dangerous materials. It is therefore the responsibility of the contractor to confirm the safety of the work area and the equipment with the proper authorities.
-
Page 6: Personal Protective Equipment (Ppe)
Start-Up Procedures Only trained, authorized personnel should be allowed to run the machine. If training is needed, please consult with your Blastpro Manufacturing representative or authorized distributor. Prior to start-up, the work surface should be inspected for hidden studs, ®... - Page 7 8. Move control levers forward to start removal. It is recommended to make a single pass in one direction to expose an edge of the material to be removed. Subsequent passes should be made perpendicular to the initial pass. See figure 3.1.1. Figure 3.1.1 ® © 2011 Blastpro Manufacturing Inc.
-
Page 8: Shut Down Procedures
If it is difficult to stay under the material, move to a narrower blade. Always wear leather gloves and use caution when handling blades. In general, flat blades should be used for scraping glues, mastics, epoxies and thinsets. See the figure below: ® © 2011 Blastpro Manufacturing Inc. -
Page 9: Transport
90° wings on each end of the blade will help keep the removed material manageable. See the figure below: Blastpro offers a carbide tipped tool for tile removal. This can be inserted into the 3-hole tool adapter on the blade holder. See the figure below: Transport Only use factory installed tie-down/lifting lugs when transporting or moving the equipment. -
Page 10: Maintenance Intervals
Perform these maintenance activities more frequently under extremely dusty, dirty conditions. Always wear leather gloves and use caution when handling blades. If additional assistance is required consult your Blastpro representative, authorized Blastpro distributor, or qualified systems professional. Daily or at the beginning of each shift: 1. -
Page 11: Troubleshooting
Replace 10A fuse Batteries are dead Charge batteries Motor controller Remove rear cowling to retrieve fault code on fault controller and consult Blastpro Representative or authorized distributor (see section 4.3) Slow coating Blade is dull Flip or replace blade removal... -
Page 12: Recommended Tools
JOYSTICK – STANDARD BP85000007 PUMP – HYDRAULIC BP85000003 GROUND DRIVE MOTOR SCR0003 HYDRAULIC CYLINDER PO CHECK VALVE BP85000009 VALVE/LIFT CYLINDER BP85000010 EQUALING VALVE BP85000001 HYDRAULIC COOLER BP85000008 FILTER Part number Description BP85000001 Hydraulic cooler ® © 2011 Blastpro Manufacturing Inc. - Page 13 Upper cylinder pin SCR0015 Lower cylinder pin BT03400013 E clip/for 1.0" od shaft .822 BT06150031 Pump sheave ZT-00056 Taperlock bushing ZT-00058 Needle bearing BP80000504 Hm idler bracket ZT-00060 So2 shaft BTP002439 Wiring harness BP85000532 Idler pulley ® © 2011 Blastpro Manufacturing Inc.
-
Page 14: Warranty Registration Information
Blastpro Manufacturing, Inc., 6021 Melrose lane, Oklahoma City, OK 73127, within ten (10) days of acquiring Blastpro products in order to qualify for the one year limited warranty contained in the sales agreement. Blastpro provides as a limited warranty to original purchasers of Blastpro equipment, purchased within &... - Page 15 Under no circumstances shall Blastpro be liable to the original purchaser or any other person for any direct, indirect or consequential damages...
-
Page 16: Warranty Registration Card
Cut Here Warranty Registration Card To ensure that your Blastpro machine is covered under warranty, please fill in the following information & mail it to BlastPro Manufacturing, Inc. 6021 Melrose Lane, Oklahoma City, OK 73127, or Fax to 405-495-1331. The following boxes must be...
