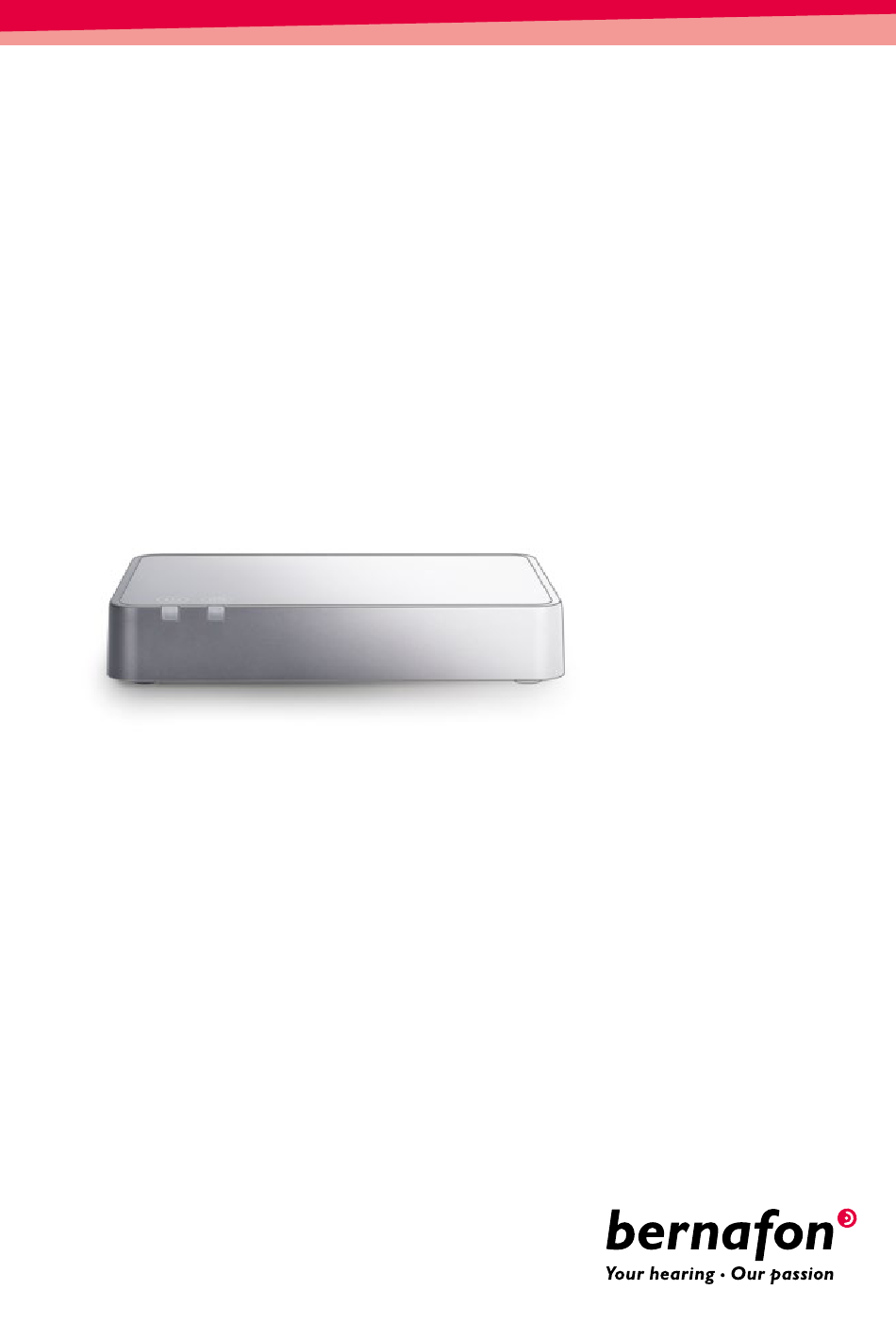

  • Page 1 Instructions for Use Installation Guide TV ADAPTER 2...
  • Page 3 Introduction to this booklet This booklet guides you on how to use and maintain your new TV Adapter 2. Please read the booklet carefully, including the Warning section. This will help you to achieve the full benefit of your new TV Adapter 2.
  • Page 4 Intended use TV Adapter 2.0 is intended to Intended use: be used together with Bernafon wireless hearing aid and SoundGate. TV Adapter 2.0 enables the hearing aid user to listening to the TV, by wirelessly sending the TV sound from TV Adapter through SoundGate directly to the hearing aid.

  • Page 5: Table Of Contents

    Installation Activating the TV Adapter 2 for the First Time Placing the TV adapter Connecting the TV Adapter 2 to a Power Outlet 15 Connecting the TV Adapter 2 to the TV Pairing SoundGate with the TV Adapter 2 Instructions for Use...

  • Page 6: Warnings

    TV Adapter 2. Consult your hearing care professional if you experience unexpected operations or serious incidents with your TV Adapter 2 during use or because of its use. Your hearing care professional will support you with issue handling and, if relevant, reporting to the manufacturer and/or the national authorities.
  • Page 7 Interference Your TV Adapter 2 has been thoroughly tested for interference according to the most stringent international standards. However, interference between the TV Adapter 2 and other devices may occur. If this occurs, increase the distance between the TV Adapter 2 and the interfering device.

  • Page 8: Package Content

    Package content The following items are included within your TV Adapter 2 package and will be covered within this instruction guide: TV Adapter 2 Model: BS-F200 Installation Guide and Instructions for Use SN2_ILLU_SoundgateTopOfTelevisionAdapter_HI Mini jack adapter RCA cable TOSLINK cable...

  • Page 9: Tv Adapter 2 Overview

    TV Adapter 2 Overview Front View Power indicator TV indicator SN2_ILLU_SoundgateTopOfTelevisionAdapter_HI...
  • Page 10 Back View SelectMe RCA connector port left and right Power input TOSLINK “IN” and “OUT” SN2_ILLU_AudioCableTelevisionAdapterToTelevision_HI...

  • Page 11: Installation

    INSTALLATION...

  • Page 12: Activating The Tv Adapter 2 For The First Time

    TV Adapter 2 device. Before you can use the SoundGate and your hearing aids with your TV, the TV Adapter 2 must be connected to a power outlet, connected to the TV and paired with your SoundGate.

  • Page 13: Placing The Tv Adapter

    Placing the TV adapter There are two options of placing the TV adapter: 1. Close to the TV – placed horizontally (A).
  • Page 14 2. Behind or close to the TV hanging on the wall (vertically) (screws not included) (B).

  • Page 15: Connecting The Tv Adapter 2 To The Tv

    Connecting the TV Adapter 2 to a Power Outlet Start by connecting the TV Adapter 2 to a power outlet. Use the power adapter included within the TV Adapter 2 packaging. 1 Plug the power cord into the power input jack on the TV Adapter 2.
  • Page 16 Connecting the TV Adapter 2 to the TV You can connect the TV Adapter 2 in four different ways. Connection Page TOSLINK (either digital stereo PCM or Dolby Digital*) ® RCA audio output (L + R) Mini jack output (typically headphone output) SCART audio output (L + R) * Dolby is a registered trademark of Dolby Laboratories.
  • Page 17 TOSLINK, p. 18 RCA, p. 20 Mini jack, p. 22 SCART, p. 24...
  • Page 18 Connecting Using TOSLINK Place the TV Adapter 2 in a suitable spot near your TV. 1 Remove the plastic cap from the TOSLINK cable. 2 Connect the TOSLINK cable to the TOSLINK output on your TV/home theatre system. 3 Connect the TOSLINK cable to the TOSLINK input on the TV Adapter 2.
  • Page 19 SN2_ILLU_ToslinkCableFromTelevisionToAdapterInAndAdapterOutToStereoReceiver_BW_HI...
  • Page 20 Connecting Using RCA Place the TV Adapter 2 in a suitable spot near your TV. 1 Connect the RCA cable to the RCA output on your TV or home theatre system. (Typically marked “L – R AUDIO OUT“ and found on the TV back or bottom panel.)
  • Page 21 SN2_ILLU_AudioCableTelevisionAdapterToTelevision_HI...
  • Page 22 (typically, it is the headphone output). 3 Connect the RCA connectors to the TV Adapter 2 RCA connector ports. 4 Refer to page 26 for pairing the TV Adapter 2 with your SoundGate device. The TV speakers may be muted when...
  • Page 24 TV. 3 Connect the RCA connectors to the TV Adapter 2 RCA connector ports. 4 Refer to page 26 for pairing of the TV Adapter 2 with your SoundGate device. The audio output on the SCART connector can be dependent on the source selected on the TV.

  • Page 26: Pairing Soundgate With The Tv Adapter

    Pairing SoundGate with the TV Adapter 2 TV Adapter 2 may be used with all versions of SoundGate. The first time your SoundGate is used with the TV Adapter 2, the SoundGate must be paired to the TV Adapter 2.
  • Page 27 5 – 6 seconds until the SoundGate LED indicator starts flashing blue rapidly. 2 Place the SoundGate on top of the TV Adapter 2 – the pairing can take up to 60 seconds. The pairing is completed when the TV Adapter 2 Power indicator turns blue and then stable orange.
  • Page 28 3 When the Power indicator on the TV Adapter 2 and the TV indicator on the SoundGate are both stable orange, the TV Adapter 2 is connected with the SoundGate and ready to stream audio. SN2_ILLU_SoundgateTopOfTelevisionAdapter_HI...
  • Page 29 Pairing with SoundGate Ensure the TV Adapter 2 is connected to a power outlet and the SoundGate battery is charged and the key lock is in the unlocked (green) position. The TV indicator on the TV Adapter 2 should be illuminated green.
  • Page 30 Notes...

  • Page 31: Instructions For Use

    INSTRUCTIONS FOR USE...

  • Page 32: Tv Listening

    30 meters (98 feet) from the TV Adapter 2. Begin Streaming For optimal use with the TV Adapter 2, ensure the SoundGate device is worn with the neck strap antenna and that the hearing instruments are powered on.
  • Page 33 2 The TV Key / Audio Key on your SoundGate device will illuminate orange and the Power indicator on the TV Adapter 2 will turn from green to orange. You will hear a confirmation beep in your hearing instruments followed by the sound from the connected TV.
  • Page 34 Briefly press the TV Key / Audio Key on your SoundGate device to discontinue streaming from the TV Adapter 2. The TV Key / Audio Key on the SoundGate device will turn off and the Power indicator on the TV Adapter 2 will turn green.

  • Page 35: Selectme

    TV Adapter 2, i.e., the SoundGate should be turned on, but not active. 2 Briefly press the SelectMe button on the back of the TV Adapter 2 you wish to hear the sound from. 3 The TV Adapter 2 is automatically connected.

  • Page 36: Visual Indicators

    Visual Indicators Devices Indicators Power Front Power SN2_ILLU_SoundgateProfile_HI SN2_ILLU_AudioCableTelevisionAdapterToTelevision_HI In pairing mode blinking blinking TV Adapter 2 streaming from RCA input TV Adapter 2 streaming from TOSLINK input SN2_ILLU_TopLedFlashingBlue_HI Unsupported format on TOSLINK input SN2_ILLU_GreenLed_HI SN2_ILLU_GreenLed_HI SN2_ILLU_GreenLed_HI...

  • Page 37: Cleaning And Maintenance

    Cleaning and maintenance Use a soft, dry cloth to clean the TV Adapter 2. Important Notice The TV Adapter 2 must never be washed or immersed in water or other liquids.

  • Page 38: Additional Information

    Additional Information Range The TV Adapter 2 has a range of up to 30 meters (98 feet) to the SoundGate 3/SoundGate 2 device, depending on furniture and walls. Within this range you can listen to the TV with good sound quality (i.e.

  • Page 39: Technical Information

    Technical information Model name BS-F200 Conditions of Use Operating Temperature: +5°C to +40°C conditions (41°F to 104°F) Humidity: 15% to 93%, relative humidity, non-condensing Atmospheric pressure: 700 hPa to 1060 hPa Storage and Temperature and humidity shall transportation not exceed the below limits for conditions extended periods during transportation and storage:...
  • Page 40 TV sound. · SelectMe: switch between two or more TV adapters Compatibility TV Adapter 2 will work with all versions of SoundGate Input · Mini jack 3.5 mm (L+R) (using connectors/format included cable and converter) ·...
  • Page 41 Latency Analog: 37 ms (TV adapter input Digital: 39 ms to hearing aids’ Dolby Digital: 59 ms ® speaker/receiver) Line input 6 dB Vrms (analog), sensitivity impedance: 10 KΩ Audio bandwidth 7.4 KHz/mono from TV input to hearing aids Dynamic AGC (analogue inputs) self-adjustment (line in approximation to...
  • Page 42 The TV Adapter 2 contains a radio transceiver using Bluetooth at 2.4 GHz. The radio transmitter is weak and always below 10 mW equal to 10 dBm in total radiated power. The TV Adapter 2 complies with international standards concerning radio transmitters, electro- magnetic compatibility and human exposure.
  • Page 43 USA and Canada This device contains a radio module with the following certification ID numbers: FCC ID: U28TVBOX03 1350B-TVBOX03 Notice: The device complies with Part 15 of the FCC Rules and with Industry Canada’s licence- exempt RSSs standards. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including...
  • Page 44 This Class B digital apparatus complies with Canadian ICES-003. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 45 · Consult the dealer or an experienced radio/TV technician for help. The manufacturer declares that this TV Adapter 2 (model BS-F200) is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

  • Page 46: International Warranty

    International Warranty Your TV Adapter 2 is covered by an international limited warranty issued by the manufacturer for a period of 12 months from the date of delivery. This limited warranty covers manufacturing and material defects in the device itself, but not in accessories such as batteries, cables, power supplies, etc.
  • Page 47 Description of symbols used in this booklet or on the packaging label Warnings Text marked with a warning symbol must be read before using the device. Manufacturer The device is produced by the manufacturer whose name and address are stated next to the symbol.
  • Page 48 Singapore IMDA label Indicates that the device complies with the standards and specification published by Info-Communications Media Development Authority (IMDA) and is compatible with the public telecommunication networks in Singapore and does not cause radio frequency interference to other authorized radio-communication networks. South Africa ICASA label Indicates that the device has license to be sold in South Africa.
  • Page 49 Caution symbol Consult instructions for use for warnings and cautions. Catalogue number Indicates the manufacturer’s catalogue number so that the medical device can be identified. Serial number Indicates the manufacturer’s serial number so that a specific medical device can be identified. Power supply outlet Rated input: Indicates the rate at which power is sent from the...
  • Page 50 Date: Model: Warranty period: Serial no.: Hearing Center 213760/UK...
  • Page 51 < > 8,15 mm Placeholder for FSC logo < 15 mm >...
  • Page 52 World Headquarters Bernafon AG Morgenstrasse 131 3018 Bern Switzerland www.bernafon.com 0000213760000001...
