Summary of Contents for Bernafon Phone Adapter

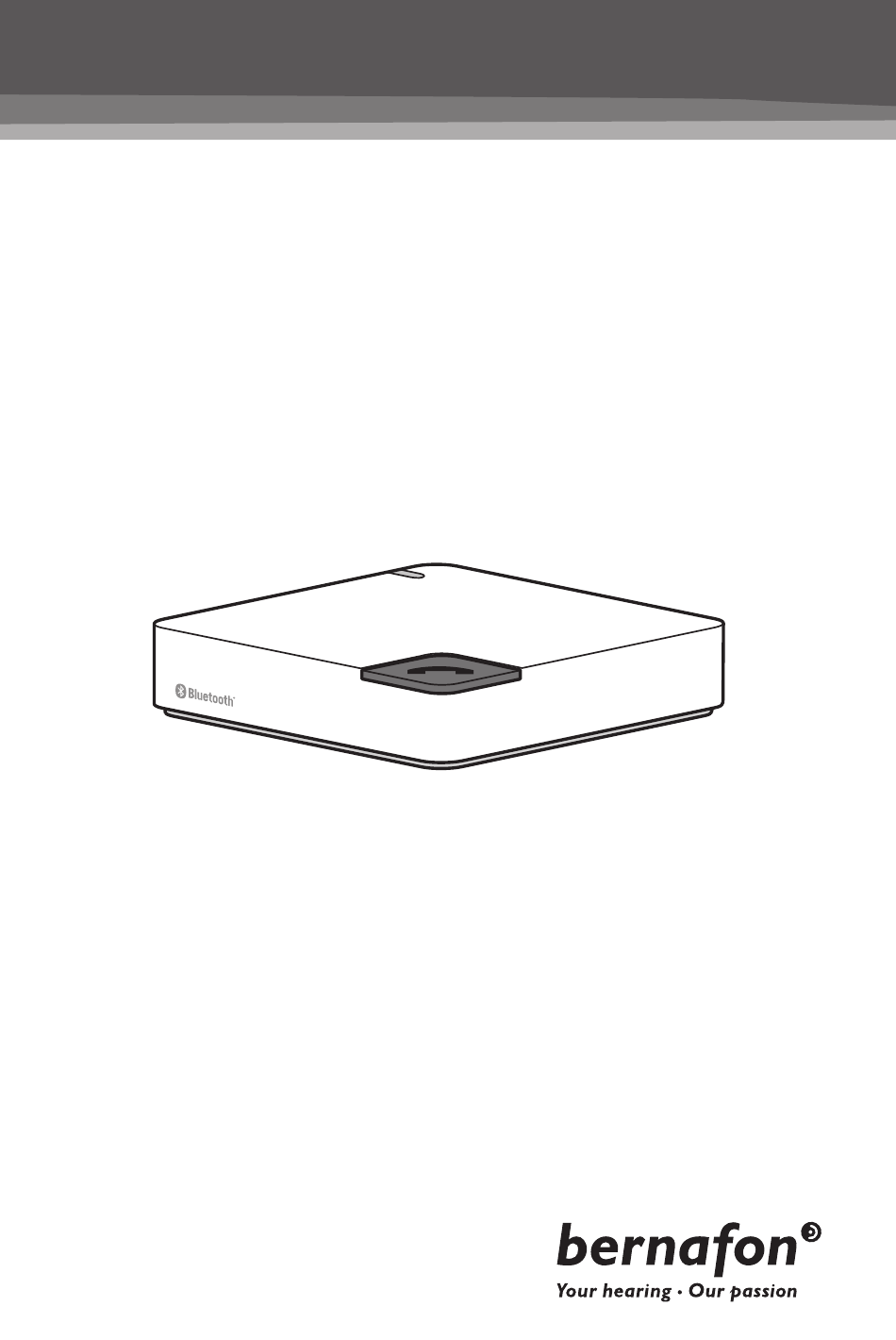

  • Page 1 INSTALLATION GUIDE Phone adapter...
  • Page 3: Table Of Contents

    Table of contents Intro Phone adapter overview Connecting to power Connecting to Phone line Prepare SoundGate for phone calls Using the Phone adapter and support Product approval precautions and markings Warranty Warnings...
  • Page 4: Intro

    Intro This user guide explains how to install the Phone adapter for use with the SoundGate. For instructions how to use your Phone adapter please consult the Phone adapter User Guide. Before your SoundGate can be used for conversations over your land line phone, the Phone adapter must be connected to the phone line and a power outlet.
  • Page 5: Phone Adapter Overview

    Phone adapter overview Back Phone connection Land line connection Power connection Front Phone button Status indicator Light Indication Constant SoundGate connected Slow fading flash Searching for SoundGate Flashing Pairing or Telephone ringing No light Power off...
  • Page 6: Connecting To Power

    Connecting to power Begin the installation by connecting the Phone adapter to a power outlet. Use the Power adapter from box no. 1. • Ensure that the wall socket is an appropriate voltage for the power adapter • Plug the power adapter into the wall socket •...
  • Page 7: Connecting To Phone Line

    (or base station) must be disconnected at the phone end: 1. Unplug the phone line from the phone (or base station).* 2. Plug the phone line in the Phone adapter “LINE” connector (BLACK). 3. Plug the Tele cord in the Phone adapter “PHONE” connector (YELLOW).
  • Page 8 Note: * If your phone or base station does not have a detachable plug for the land line connection, you should either try using an alternative phone or a technician must be contacted to complete the installation.
  • Page 9: Prepare Soundgate For Phone Calls

    Phone adapter, the two devices must be paired together. Pairing 1. In order to pair the Phone adapter and the SoundGate, the devices must be placed close together (less than 30 cm/1 ft between devices). 2. Press the SoundGate Bluetooth ®...
  • Page 10: Using The Phone Adapter And Support

    Using the Phone adapter and support For use of the land line phone with the Phone adapter and SoundGate, refer to the Phone adapter user guide. Place the Phone adapter unit in a suitable spot near your land line phone or base station.
  • Page 11: Product Approval Precautions And Markings

    Product approval precautions and markings The emission power from the Phone adapter is below international emission limits for human exposure. This device complies with Part 15 of the FCC Rules. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.
  • Page 12 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 13 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This Phone adapter is in compliance with the essential requi- rements and other relevant provisions of Directive 1999/5/EC. Declaration of conformity is available at:...
  • Page 14: Warranty

    International warranty The Phone adapter has a limited warranty, covering defects in materials and workmanship. This warranty covers the Phone adapter itself, but not accessories such as charger units, cables, etc. This warranty becomes invalid if a defect is a result of misuse or maltreatment.
  • Page 15: Warnings

    Warnings The Phone adapter is not a toy and therefore should be kept out of the reach of children and anyone else who might swallow parts or otherwise cause injury to themselves. Spe- cial attention should be paid to the smaller components in order to prevent children from swallowing them and choking.
  • Page 16 Notes...
  • Page 17 Notes...
  • Page 18 Notes...
  • Page 20 Australia New Zealand Bernafon Australia Pty. Ltd. Bernafon New Zealand Ltd. 12/97 Castlemaine Street Level 1, Building F Milton QLD 4064 27-29 William Pickering Drive Freecall 1800 809 111 Albany, Auckland 0632 Phone +61 7 3250 0300 Toll Free 0800 44 22 57...
