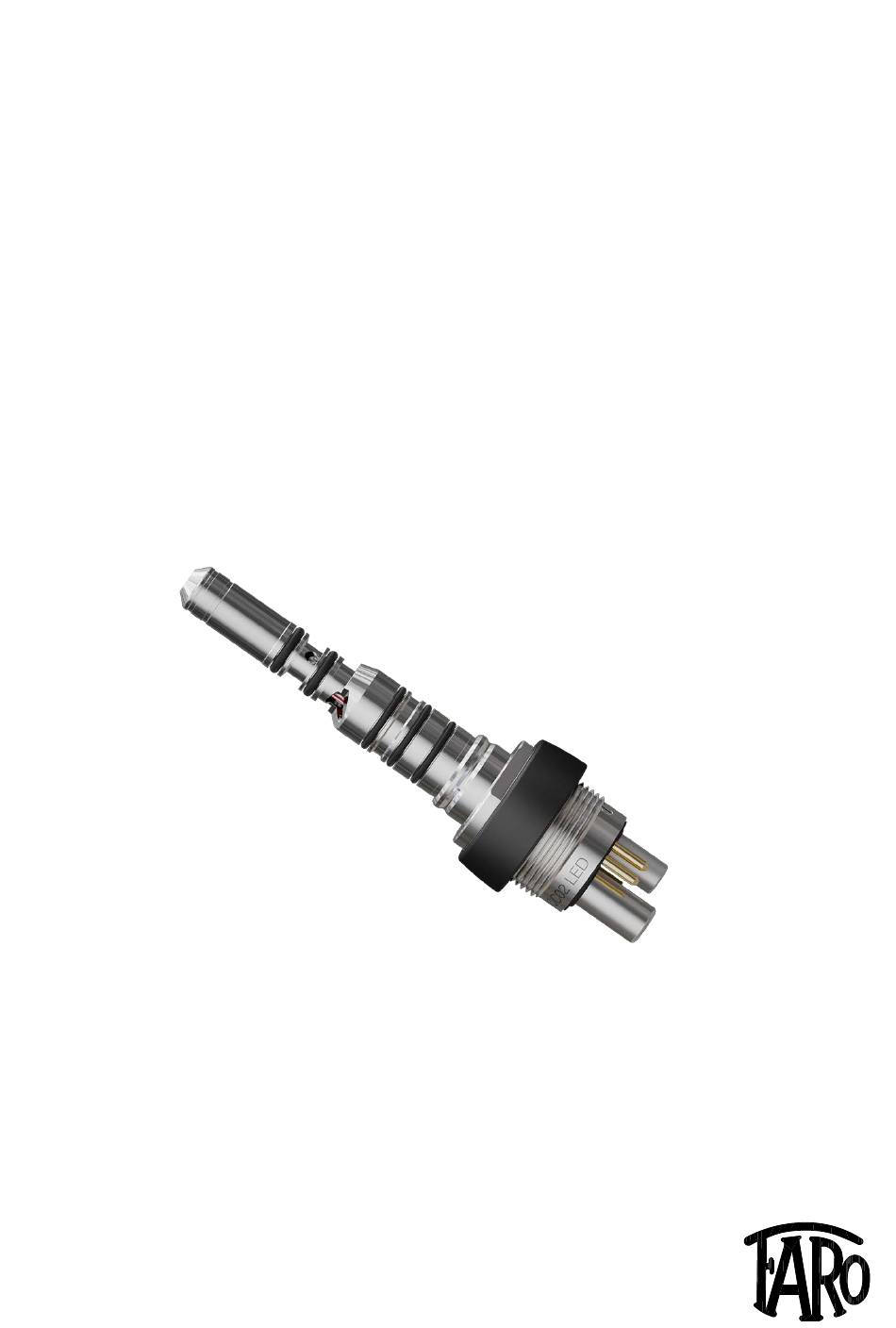

  • Page 1 Instructions for use QC02 LED REF 055501...
  • Page 2 Legal manufacturer: Distributed by: Faro S.p.A. KaVo Dental GmbH Via Faro, 15 Bismarckring 39 20876 Ornago (MB) 88400 Biberach Germany Italy Phone +39 039.6878.1 www.kavo.com Email: info@faro.it www.faro.it...

  • Page 3: Table Of Contents

    Instructions for use QC02 LED REF 055501 Table of contents Table of contents 1 User instructions ....................... 2 Safety..........................2.1 Infection hazard ......................7 2.2 Electrical shock......................7 2.3 Use ..........................7 2.4 Technical condition ......................7 2.5 Accessories and combination with other equipment............8 2.6 Qualification of personnel ....................

  • Page 4: User Instructions

    Instructions for use QC02 LED REF 055501 1 User instructions 1 User instructions Dear user, Congratulations on purchasing this quality product. By following the notes be- low you will be able to work smoothly, economically and safely. © Copyright by KaVo Dental GmbH All mentioned trademarks are property of their respective owners.
  • Page 5 Instructions for use QC02 LED REF 055501 1 User instructions Information on the packaging Material number Serial number Manufacturer Manufacturing date Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices Medical device, labelling of medical devices...
  • Page 6 Instructions for use QC02 LED REF 055501 1 User instructions WARNING In cases which – if not prevented – can lead to death or severe injury. CAUTION In cases which – if not prevented – can lead to minor or moderate injury.

  • Page 7: Safety

    Instructions for use QC02 LED REF 055501 2 Safety | 2.1 Infection hazard 2 Safety NOTE All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides.

  • Page 8: Accessories And Combination With Other Equipment

    Instructions for use QC02 LED REF 055501 2 Safety | 2.5 Accessories and combination with other equipment To ensure optimum function and to prevent property damage, please comply with the following instructions: 4 Service the medical device regularly with care products and systems as de- scribed in the instructions for use.

  • Page 9: Disposal

    Instructions for use QC02 LED REF 055501 2 Safety | 2.8 Disposal 2.8 Disposal This product is subject to the EC directive governing waste electrical and elec- tronic devices and must be submitted to special disposal in Europe. 4 For further information, please contact KaVo or a specialised dental dealer.

  • Page 10: Description Of The Product

    ▪ Spray air ▪ Drive air ▪ Return air The QC02 LED coupling has a built-in non-return valve that prevents spray wa- ter from being suctioned back into the coupling and the hose system of the treatment centre. The QC02 LED coupling has a built-in LED lamp.

  • Page 11: Technical Specifications

    4 1065 / 1060: If the QC02 LED coupling is used on these units, have a tech- nician adjust the voltage. 4 E80 / E70 / E50 / 1058 / 1080 / 1066 / 1062: The QC02 LED coupling can be used on these units with any further measures being required.

  • Page 12: Transportation And Storage Conditions

    Instructions for use QC02 LED REF 055501 3 Description of the product | 3.3 Transportation and storage conditions 3.3 Transportation and storage conditions CAUTION Startup after refrigerated storage. Malfunction. 4 Prior to startup, strongly refrigerated products must be allowed to warm up to a temperature of 20 °C to 25 °C (68 °F to 77 °F).

  • Page 13: Startup And Shut Down

    Instructions for use QC02 LED REF 055501 4 Startup and shut down 4 Startup and shut down WARNING Hazard from contaminated products. Infection hazard to the dentist and patient. 4 Prior to initial startup and after each use, reprocess the product and ac- cessories.

  • Page 14: Operation

    Malfunction from grasping the regulating ring. Product defects. 4 Do not grasp the regulating ring. 4 Plug the QC02 LED coupling onto the turbine hose and secure it tightly with the union nut screw of the hose. 4 Re-tighten with the enclosed wrench.

  • Page 15: Pulling The Handpiece Off

    Instructions for use QC02 LED REF 055501 5 Operation | 5.4 Pulling the handpiece off 4 Check the secure fit of the (LUX) instrument on the coupling by pulling on it. 5.4 Pulling the handpiece off 4 Grasp the coupling and pull the instrument forward while twisting it slightly.

  • Page 16: Checking For Malfunctions And Troubleshooting

    Instructions for use QC02 LED REF 055501 6 Checking for malfunctions and troubleshooting | 6.1 Checking for malfunctions before initial start-up 6 Checking for malfunctions and troubleshooting 6.1 Checking for malfunctions before initial start-up CAUTION Danger from hot lamp. Risk of burn injury.

  • Page 17: Replacing The O-Rings

    Instructions for use QC02 LED REF 055501 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting NOTE Inserting the lamp, make sure that the contacts in the coupling are not dam- aged. Screw-on the screw cap. 4 Unscrew the screw cap in anticlockwise direction.
  • Page 18 Instructions for use QC02 LED REF 055501 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Push the O-ring to the front, and remove it. 4 Spray a lint-free cloth with KaVo Spray, apply it to the new O-rings and in- sert them in the recesses.

  • Page 19: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2

    Instructions for use QC02 LED REF 055501 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 7.1 Preparations at the site of use WARNING Hazard from contaminated products.

  • Page 20: Automated Reprocessing

    Instructions for use QC02 LED REF 055501 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.3 Automated reprocessing 7.3 Automated reprocessing CAUTION Never reprocess the medical device with chloride-containing products. Malfunction and material damage. 4 Reprocess it in a washer disinfector only.

  • Page 21: Preparation For Automated Internal And External Cleaning As Well As Internal And Ex

    Instructions for use QC02 LED REF 055501 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.4 Care products and systems - Servicing 7.3.2 Preparation for automated internal and external cleaning as well as internal and external disinfection...

  • Page 22: Packaging

    Instructions for use QC02 LED REF 055501 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Packaging 7.5 Packaging NOTE The sterile goods package must be large enough to accommodate the product without stretching the packaging. The quality and use of the packaging of the...

  • Page 23: Components And Miscellaneous

    Instructions for use QC02 LED REF 055501 8 Components and miscellaneous 8 Components and miscellaneous Available from authorised KaVo dealers. Components Description KaVo material number KaVo MULTI LED lamp 1.007.5372 Miscellaneous Description KaVo material number 0.411.1563 Spare washer 0.553.5262 O-ring 6.65x0.8 1.004.2776...

  • Page 24: Terms And Conditions Of Warranty

    Instructions for use QC02 LED REF 055501 9 Terms and conditions of warranty 9 Terms and conditions of warranty This KaVo medical device is subject to the following warranty conditions: KaVo grants the end customer a warranty of proper function and guarantees...

This manual is also suitable for:

055501
