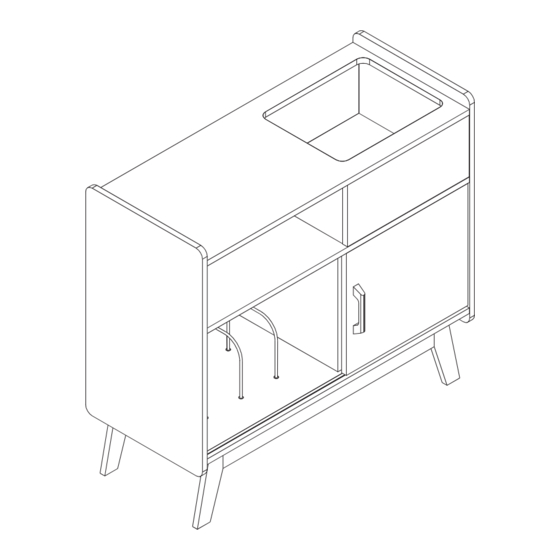

Record Player Stand
Model:HO-RS001
Assembly Instructions
IMPORTANT
Please read and understand this manual before beginning assembly of the product,
and make sure all parts are present. Compare parts with packaging contents list.
If any part is missing, or if you have any questions,
contact the service centre at E-mail:
support@haioou.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HAIOOU HO-RS001
Summary of Contents for HAIOOU HO-RS001
- Page 1 Record Player Stand Model:HO-RS001 Assembly Instructions IMPORTANT Please read and understand this manual before beginning assembly of the product, and make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions, contact the service centre at E-mail: support@haioou.com...
- Page 3 Parts for reference: Cam bolt (x48) Top track wheel (x2 ) Cam lock (x48) Lower track wheel (x2) 8x40mm Large wooden dowel (x14) Socket (x1) 3.5x14mm (x20) Screw Rubber grommet (x2 Door handle (x 1) LED strip lights (x1) Fixed tool (x2) NOTICE : 1.
- Page 4 1. Screw 6 Cam bolts (A) into panel ⑭⑤⑮. 2. Secure LED strip (J) into panel ⑭ using 4 Screws (D) and Fixer(K). 3. Secure the Socket (H) into panel ⑤ using screws. Screw 2 Cam bolts (A) into panel ⑪, connect panel ③ and panel ⑪ using Cam locks (B) and Cam bolt (A) combination.
- Page 5 Place panel ③ ⑪ vertically on panel ⑭, secure them using 2 Large wooden dowels (C), cam locks (B) and cam bolts (A) combination as shown below. Note: The groove is used for inserting the back panel. Flip the part(③⑪⑭) and adjust the position to which is shown below.
- Page 6 p over the main part and adjust to the position as shown below, (A) onto Panel anel vertically onto panel , connect them using cam 1. Place bolts (A) and cam locks (B) combination. Connect panel④⑮by the same way. ***If you are on your own assembling this unit, for this step, we suggest you lie it on its side then continue the assembly***...
- Page 7 Screw 6 Cam bolts crew into p Connect the main part(⑮⑤⑭⑪) , secure them the Cam bolts (A),...
- Page 8 1. Insert the back panel⑫⑬ to the bottom along the grooves of panel⑮⑤⑭. 2.Apply the rubber grommets (I) to the holes of panel⑫⑬. Fix panel ① to the main part using Cam bolts(A), Cam locks(B) and 6 Large wooden dowels (C) combination.
- Page 9 Screw 8 Cam bolts (A) into the bo�om of panel ⑮. 1. Screw Cam bolts (A) to Panel ⑨⑩ and as shown (Notice the orientation). 2. Connect Panel ⑨⑦⑩ using Cam bolt (A) and Cam lock (B) combination.
- Page 10 Connect 2 panel⑧ to the left and right feet using Cam bolt (A) and Cam lock (B) combination. Secure the bottom support part to the main part using Cam bolts (A) and Cam locks (B) combination.
- Page 11 Secure part (G) at the bottom edge of panel , while secure part (F) at the top edgeof panel x1 6 Fix the handle (E) to panel the original the door(pane ) between rails of panel in the cabinet. 3. Install Insert the panel...
- Page 12 20kg/44lb 20kg/44lb 30kg/66lb 30 1/2 x 33 4/9 x 14 3/8 Inch 77.5x85x36.5cm 48.4lb 22kg...
