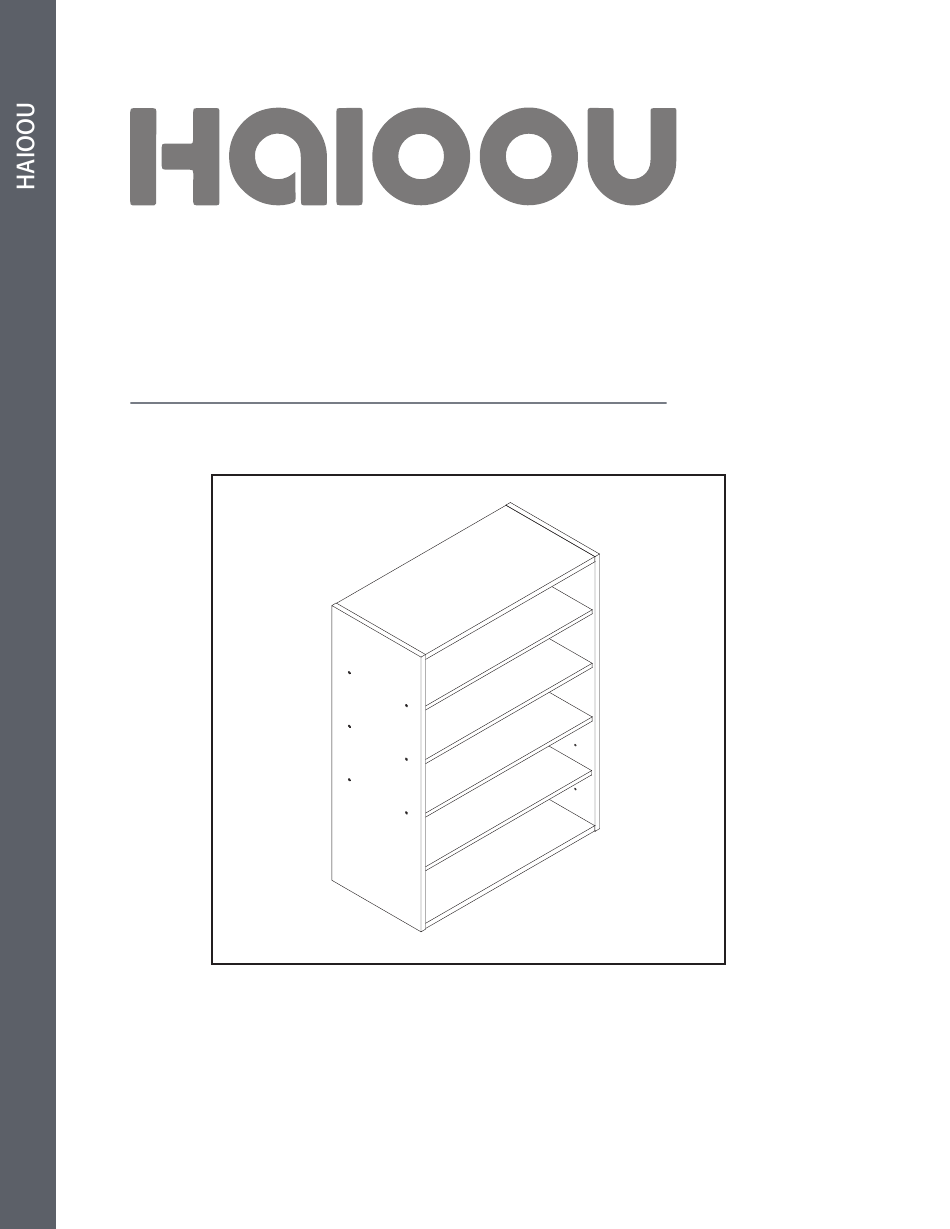

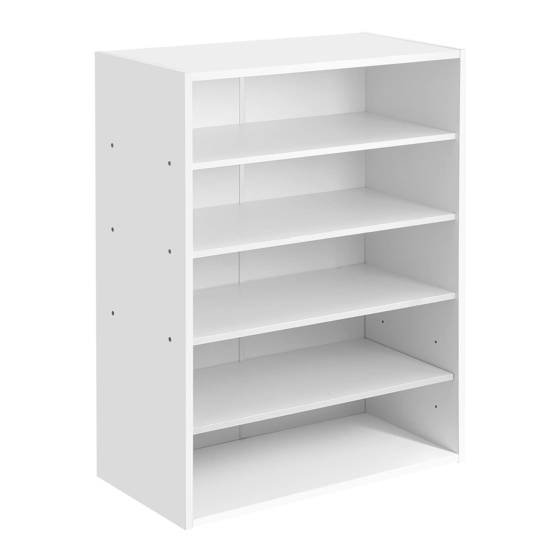

Shoe Rack
MODEL NO. HO-SR001, HO-SR002, HO-SR003
ASSEMBLY INSTRUCTION
IMPORTANT:
Please read and understand this manual before beginning assembly of the
product, and make sure all parts are present. Compare parts with packaging contents
list. If any part is missing, or if you have any questions, contact the service centre at
E-mail: support@haioou.com
Made in China
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HAIOOU HO-SR001
Summary of Contents for HAIOOU HO-SR001
- Page 1 Shoe Rack MODEL NO. HO-SR001, HO-SR002, HO-SR003 ASSEMBLY INSTRUCTION IMPORTANT: Please read and understand this manual before beginning assembly of the product, and make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions, contact the service centre at E-mail: support@haioou.com...
- Page 2 Thank you for purchasing this product. THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. NOTE! READ THE INSTRUCTIONS. Before you begin assembly, read the instructions carefully. We suggest starting with the subassembly of the parts before beginning the main assembly.
-
Page 3: Parts List
Parts list FENCE FENCE... -
Page 4: Hardware Kit
Hardware Kit Cam Bolt Cam Lock Wood Dowel Wood Dowel 8x40mm 6x30mm 8Pcs 8Pcs 8Pcs 12Pcs Screw Movable Board Sliced Strip Floor Protector Support 3.5x25 mm L=760mm 12Pcs 4Pcs 4Pcs Screw Back Board Fastener 3.5x14mm 4+2Pcs 4+2Pcs NOTICE: 1. Ensure all parts and hardware are available before assembly. 2. Follow each step carefully to properly assemble this product. 3. Using the wrong screw will cause damage. 4. A Phillips head screwdriver is required to assemble this product 5. An electric tool is banned for assembling this product... - Page 5 1. Place Cam Bolt (A) x 4Pcs in part② using a Phillips screwdriver 2. Place Wood Dowel (C) x 4Pcs in part② 3. Attach part② to part⑥,⑦, fasten them using Cam Lock (B) x 4pcs 4 Pcs 4 Pcs 4 Pcs ...
- Page 6 1. Firstly splice part③ x 2Pcs using Back Board Strip (H) 2. Insert part③(2pcs) to the main body along the grooves of part⑥,⑦ 1. Place Cam Bolt(A) x 4pcs in part① using a Phillips screwdriver 2. Place Wood Dowel (D) x 6Pcs in part④ (2Pcs in each board) 3.
- Page 7 1. Attach part① to the main body (part ⑥,⑦, ④) 2. Fasten part① with part⑥,⑦ using Cam Lock (B) x 4Pcs 3. Use Screw (E) x 6Pcs to fasten part① with part④(3pcs) 6Pcs 1.Insert Back Board Fastener (I) x 4Pcs to each corner of the back board 2.Fasten them with Screw (J) x 4Pcs 3.Attach the Floor Protector (G) x 4Pcs to 4 corners of...
- Page 8 Insert the Movable Board Supporter(F) x 4pcs to the holes on board①,② (2pcs to each board) 4Pcs...
-
Page 9: Weight Limits
Product weight 36.8 lb 16.7 kg This HAIOOU product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace a defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product...
