PARTS INCLUDED
A
B
x1
H
G
for 29"
x4
M
Lock Washer
x8
STEP 1
Place the cross frame B on a clean surface, with
the holes in the cross bars facing upwards.
Attach the rotating plate C to the cross frame B
by threading the short bolts I through lock
washers M and washers K, half-way into the
holes in the frame as shown, using wrench L.
Once bolts have been threaded into all holes,
fully tighten the bolts.
I
M
K
Holes facing
upwards
Aura

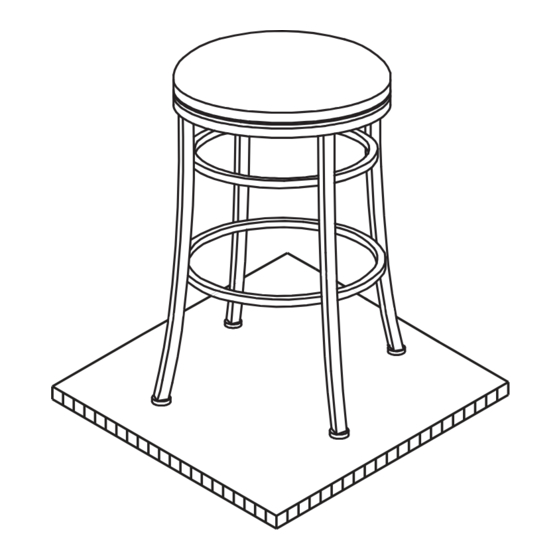

Dual Height Stool
C
x1
I
Short Bolt
for 24"
x4
L
C
Model MEN0903
D
x1
J
Long Bolt
x16
STEP 2
Turn the cross frame B over so the holes in the
circle bar are facing upwards. Attach the legs
E to the cross frame B by threading the short
bolts I half-way into the holes as shown, using
wrench L.
NOTE: The holes in the legs E should face
inward.
DO NOT fully tighten the bolts.
B
QUESTIONS?
4803116
Contact Customer Care
1-800-721-4191
Monday - Friday 8 - 5 Central Time
E
x1
x4
K
Washer
x8
x8
Holes facing
upwards
F
x1
L
Wrench
x1
I
E
B
Advertisement
Table of Contents
Related Manuals for Forge Aura MEN0903
Summary of Contents for Forge Aura MEN0903
- Page 1 QUESTIONS? Aura 4803116 Contact Customer Care Model MEN0903 1-800-721-4191 Dual Height Stool Monday - Friday 8 - 5 Central Time PARTS INCLUDED Short Bolt Washer Long Bolt Wrench for 29” for 24” Lock Washer STEP 1 STEP 2 Place the cross frame B on a clean surface, with Turn the cross frame B over so the holes in the the holes in the cross bars facing upwards.
- Page 2 STEP 3 STEP 4 Attach the top bar D to the legs E by Insert foot pieces G or H H or G threading the long bolts J half-way into the into legs E. holes in the legs as shown, using wrench L. NOTE: For a 24"...
