Control
•
CCT control
•

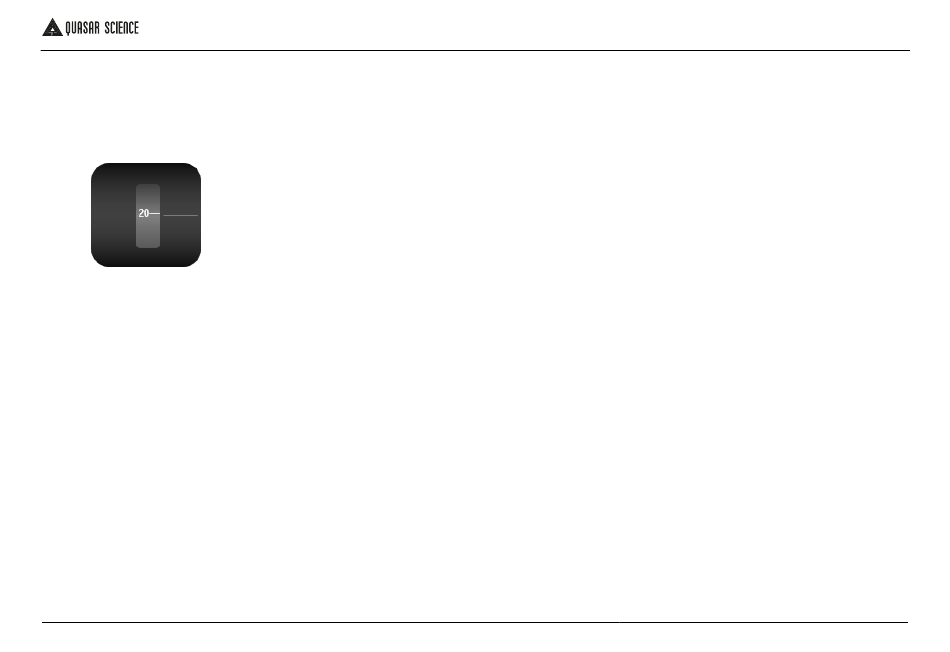

Turn the analog CCT dial to the desired color temperature:
1.
•
Color temperatures are shown divided by 100 (2000K/100 = 20, 3000K/100 = 30, etc) for legibility and precision marking on the dial
2.
Dimming
a.
The Q-LED crossfade lamps are capable of dimming down while maintaining color temperature.
b.
The Q-LED crossfade lamps are dimmed by an external TRIAC AC source.
c.
To Dim Q-LED crossfade lamps, plug the installed P1G into:
i.
AC power wired up to a wall-dimmer switch
ii.
AC power wired up to a TRIAC dimmer source
• AC power connected to a stand-a-lone TRIAC dimmer plugged into AC-power
•
Dimming Equipment recommendations
a.
NOTICE The crossfade lamps must be dimmed with TRIAC AC dimming circuits. VARIAC type dimmers will not work.
b.
Reverse-phase (trailing edge) TRIAC AC dimming circuits will enable lower dim levels with less potential strobing issues.
c.
CFL/LED TRIAC AC dimming circuits must have a circuit that enables stable low voltage operation.
d.
The following dimmers work well with crossfade products:
i.
Lutron CF line of household dimmers
ii.
ETC Sensor
• RatPac dimmer products
10
Crossfade X
