CIDOO ABM066 - Tri-mode TFT-LCD Mechanical Keyboard Manual

Default Hot Keys

Hold FN+ listed keys to activate

FN+A: Windows System
FN+S: Mac System
FN+1!: F1
FN+2@: F2
FN+3#: F3
FN+4$: F4
FN+5%:F5
FN+6^:F6
FN+7&: F7
FN+8*: F8
FN+9(: F9
FN+0): F10
FN+-_: F11
FN+=+: F12
FN+PG UP:INSERT
FN+PG DN:DELETE
FN+ ESC: Long press
FN+ ESC for 3 seconds to reset the keyboard to the factory setting.
FN+ENTER : Toggle LCD profile
FN+X : ON/OFF LCD

USB Wired/BT5.0/2.4G Tri Mode Connection

Wired Mode

Please toggle the mode switch to the middle (wired mode ). (From left to right are BT→Wired→2.4Ghz) and then insert USB cable to your computer, the LCD lights on which means the connection is successful.

Bluetooth Pairing Instructions

Perform the following steps to pair this keyboard with your device(s).

1. CIDOO ABM066 Bluetooth keyboard can be paired with up to three devices at the same time. Please toggle the mode switch to the Bluetooth mode. (From left to right are BT→Wired→2.4Ghz ). Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing mode. At this time, Screen will flash BT1/BT2/BT3 icon quickly indicates that keyboard is ready to connect.
2. Open the Bluetooth settings on your device and scan for available devices. Locate and select the device name entry. "CIDOO ABM066-1" for FN+Q; "CIDOO ABM066-2" for FN+W, "CIDOO ABM066-3" for FN+E.
3. Once the keyboard has connected to your device, the screen device icon will cease flashing and light on indicates Bluetooth pairing was successful. Short press "FN" and "Q" or "FN" and "W" or "FN" and "E" keys to switch paired Bluetooth device.

The Bluetooth connection has memory. It will disconnect when power off the keyboard, and the keyboard will re-connect to the last device when turned on.

2.4Ghz connection Instruction

1. Please toggle the mode switch to 2.4Ghz mode. From left to right are BT→ Wired→2.4Ghz. Screen will flash 2.4G icon quickly
2. Plug the receiver into USB port of the device, 2.4g icon will cease flashing and light on which means the connection is successful.

2.4Ghz pairing Instructions

The keyboard 2.4Ghz mode is default paired. If you need to re-pair 2.4Ghz mode, please perform the following operations:

Long press FN+R key to enter 2.4G pairing mode. At this time, The screen will flashes 2.4G icon quickly, Insert 2.4G dongle to USB port. After the connection is successful, the screen will stop blinking.

Auto sleep mode

In Bluetooth and 2.4G mode, after 3 minutes without key press, the LCD will turn off to conserve the battery, any key press will be awaken the keyboard.

In Bluetooth mode, the deep sleep mode will be entered after 30 minutes without key press, and the Bluetooth is disconnected. Press any key to exit the deep sleep mode, the LCD will turn on and re-connect to Bluetooth.

Battery Charging Indicator

When the battery power of the keyboard is low (the battery power is less than 3.5V), the battery icon of the screen will become red. Also, screen will show charging icon when keyboard is charging.

LCD Setting

Custom the wallpaper
CIDOO ABM066 supports to custom animation and static picture. Total 2 sets can be custom.

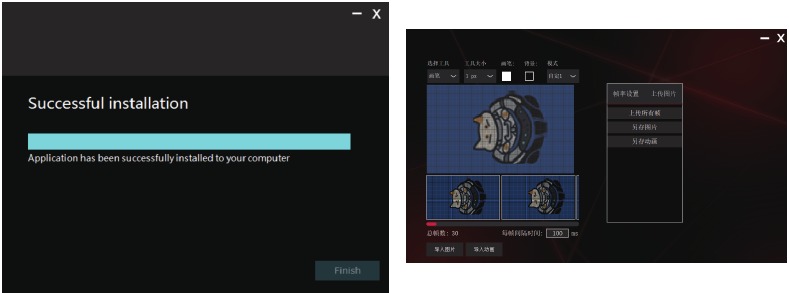

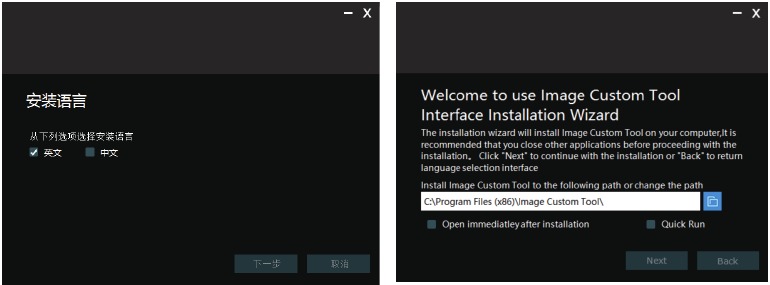

Please download Image Custom Tool from distributor and install it to your PC. Open the Image Custom Tool, choose picture and upload all frames. See below 4 steps:

Custom Configuration

CIDOO ABM066 supports using the VIA program to change key layout
Note: Make sure your keyboard is properly plugged into your computer.
VIA installation steps are as follows:

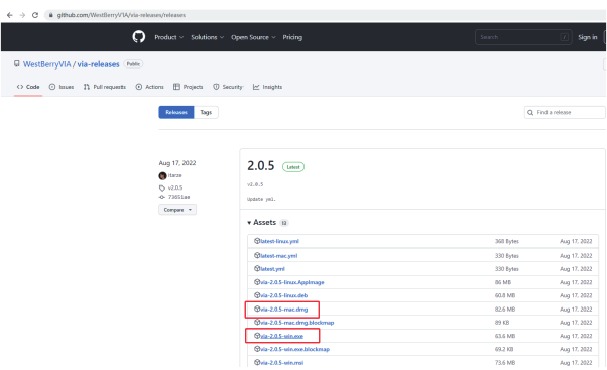

1. Please visit https://github.com/WestBerryVIA/via-releases/releases to download the latest VIA application for your computer's OS here. As following photo shows:

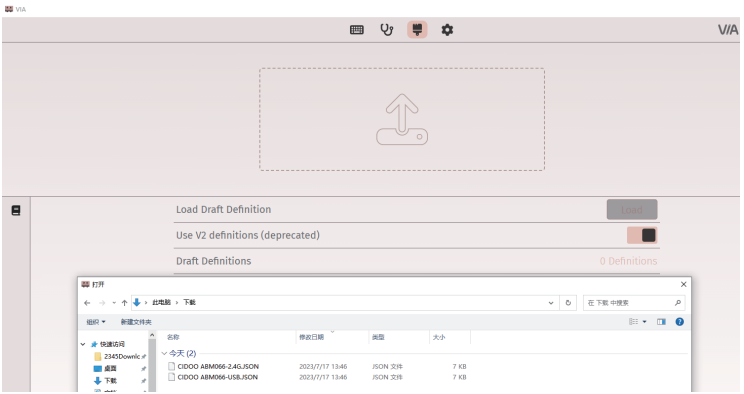

2. Download CIDOO ABM066-2.4G.JSON and ABM066-USB.JSON file via distributor and load the file. (2.4G if on 2.4g mode or USB if on wired)

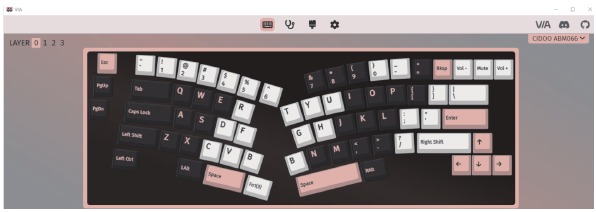

3. Installation is completed and VIA software connected successfully if show below picture.


If the VIA software cannot recognize your keyboard, please reach out our support to get the instruction.

VIA automatically detects your compatible keyboard if it's plugged in. Keyboard memory is persistent, which means that wherever you plug in keyboard, it remembers the settings.

On the top half of VIA software, choose one key by your mouse, and then select the key that you wanted on the bottom half of VIA software, and it was effected.
Firstly switch to VIA software key tester table, there is not any background color before you press any keys, when you want to test this key you have programmed, press it and the background color will change to red color means it works, otherwise it is not work.

See below for more information about configuration

Macros setting

CIDOO ABM066 is configured with 4 layers from 0 to 3 by default, and each individual key can have multiple functions. This is important for smaller keyboards, where there aren't enough physical keys to do all the functionality you need.

Special keys setting

Here you can remap the key to replace the special key to the key you want, to achieve the quick operation of the function.

CIDOO ABM066 VIA software provides many different RGB lighting effects by default. You can change the lighting brightness, speed, color and customize the lighting effect you want. You can also change the key to operate the lighting effect you set.

About Layers

CIDOO ABM066 default customized 0-3 layer keyboard layout.

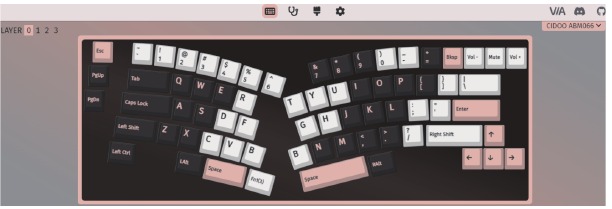

Layer 0 This layer will be activated when your keyboard connected to the Windows system.
Layer 0 This layer will be activated when your keyboard connected to the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Optio

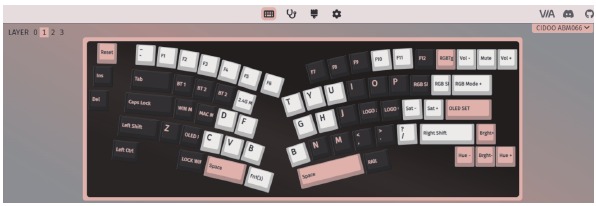

Layer 1: When the keyboard connect to Win/Mac system device, long press Fn1(3) key, layer 1 will be activated

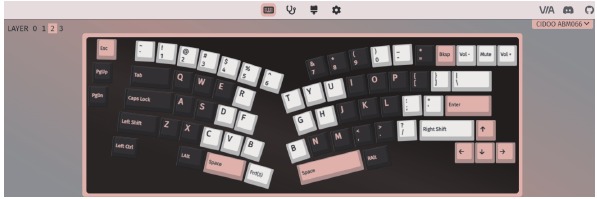

Layer 2: When the keyboard connect to Win/Mac system device, remapped any keys to MO(2),long press MO(2) key, layer 2 will be activated

Layer 3: When the keyboard connect to Win/Mac system device, remapped any keys to MO(3),long press MO(3) key, layer 3 will be activated.

Key description
