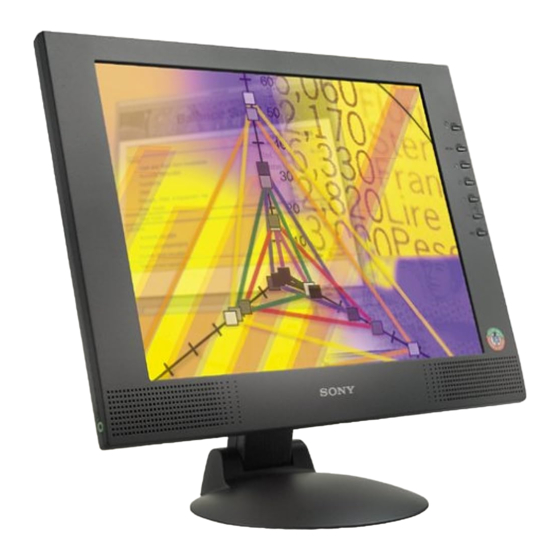

Sony SDM-M51 Service Manual
Sony SDM-M51 Service Manual

Sony SDM-M51 Service Manual

Tft lcd color computer display
Hide thumbs Also See for SDM-M51:

Advertisement

Quick Links

SERVICE MANUAL
LCD panel
Input signal format
Resolution
Input signal levels
Audio output
Headphones jack
AUDIO IN jack
Power requirements
DC input
Power consumption
Operating temperature
All manuals and user guides at all-guides.com
Panel type: a-Si TFT Active Matrix
Picture size: 15.1 inch
RGB operating frequency*
Horizontal: 28 – 64 kHz
Vertical: 48 – 75 Hz
Horizontal: Max.1024 dots
Vertical: Max.768 lines
RGB video signal
0.7 Vp-p, 75 Ω, positive
SYNC signal
TTL level, 2.2 kΩ,
positive or negative
(Separate horizontal and vertical,
or composite sync)
0.3 Vp-p, 75Ω, negative
(Sync on green)
1 W × 2
Stereo minijack
Accepts impedance of 16 – 48 Ω
Stereo minijack
Accepts impedance of 47 kΩ
Accepts level 0.5 Vrms
100 – 240 V, 50 – 60 Hz,
0.4 – 0.2 A
DC 18 V (supplied AC adapter)
Max. 19 W
Max. 22 W (including AC adapter)
5 – 35
C
˚
TFT LCD COLOR COMPUTER DISPLAY
SPECIFICATIONS
Dimensions (width/height/depth)
Mass
Plug & Play
Accessories
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of
total horizontal time or 0.8 µs, whichever is larger.
• Horizontal blanking width should be more than 2.5 µsec.
• Vertical blanking width should be more than 450 µsec.
Design and specifications are subject to change without notice.
SDM-M51
US Model
Canadian Model
AEP Model
Display (upright):
Approx. 387 × 345 × 180 mm
× 13
× 7
1
5
1
(15
/
/
4
8
(with stand)
Approx. 387 × 296 × 48 mm
× 11
× 1
1
3
15
(15
/
/
4
4
(without stand)
Approx. 4.6 kg (10 lb 14 oz) (with
stand)
DDC1/DDC2B/DDC2Bi
See page 7.
/
inches)
8
/
inches)
16

Advertisement

loading

Summary of Contents for Sony SDM-M51

  • Page 1 All manuals and user guides at all-guides.com SDM-M51 SERVICE MANUAL US Model Canadian Model AEP Model SPECIFICATIONS LCD panel Panel type: a-Si TFT Active Matrix Dimensions (width/height/depth) Picture size: 15.1 inch Display (upright): Approx. 387 × 345 × 180 mm...
  • Page 2: Block Diagrams

    All manuals and user guides at all-guides.com SECTION 4 DIAGRAMS 4-1. BLOCK DIAGRAMS IC10 ADC/ZOOM ENGINE CN906 PCLKA DCLK GREEN ADC GND ADC GND H SYNC BLUE GREEN GREEN GREEN V SYNC HS IN ADC GND ADC GND VS IN BLUE BLUE BLUE...
  • Page 3: Circuit Boards Location

    All manuals and user guides at all-guides.com (1) Schematic Diagram of H Board 4-2. CIRCUIT BOARDS LOCATION KEY PWR SW801 SW-DPST KEY MENU SW802 SW-DPST KEY UP SW803 SW-DPST KEY DOWN SW804 SW-DPST KEY PLUS SW805 SW-DPST KEY MINUS SW806 SW-DPST KEY AUTO SW807...
  • Page 4 All manuals and user guides at all-guides.com (2) Schematic Diagram of A( a - c ) Board DVDDA Z501 10µF 10µF 0.1µF 0.1µF +3.3V SVDDA Z501 +3.3V Z501 10µF 10µF 0.1µF 0.1µF RVDDA 10µF 10µF 0.1µF 0.1µF 0.1µF 0.1µF 0.1µF 0.1µF 0.1µF Z501...
  • Page 5 All manuals and user guides at all-guides.com ab1 ab2 ab10 M51951B bc11 R118 4.7K 4.7K 4.7K 4.7K RESET LED_GRN2 RESETn B3B-PH-K MMBT3901 LED_AMB2 0.1µF TP18 TP19 C105 AUD_GND 1000pF SOG SELn V sync_MGU5 H sync_MGU5 H Slice C106 +3.3V 1000pF IC11 MTV212M 4.7K...
  • Page 6 All manuals and user guides at all-guides.com B4B-EH 1.5A 27µH J1 BOARD B5B-PHK 0.1µF 100µF CN904 Z501 TO DC-AC INVERTER Z102 TP11 +18V Z102 1.5A 3µH 5V_ON 1N4148 0.1µF 100µF 22µF 10µF SI786 0.1µF TP11 1N4148 PA_GND +3.3V 22µF 0.1µF SI4808 SI4808 BST3...
  • Page 7 All manuals and user guides at all-guides.com — A BOARD (Conductor Side) — L901 2.5T CN901 EIAJ-5 D901 SB-540 CN904 S4B-EH C901 C902 0.1µ 220µF L902 A BOARD 3µH CN906 S9B-PH-K GREEN BLUE A BOARD CN903 RGB Connector DB15 DDCSDA D903 D904 D905...
