V-TAC VT-13 Instruction Manual

V-TAC VT-13 Instruction Manual

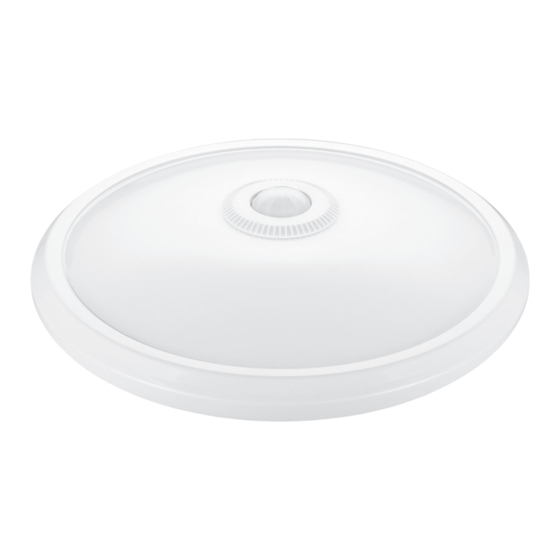

Led dome light with pir sensor

Advertisement

TECHNICAL DATA

MODEL
SKU
WATTS
LUMENS
AMBIENT LIGHT
TIME DELAY
INPUT VOLTAGE
DETECTION RANGE
DTECTION DISTANCE
BEAM ANGLE
LIFE SPAN
INSTALLING HEIGHT
PROTECTION RATING
DETECTION MOTION SPEED
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions care-
fully before starting the installation and keep this manual handy for future reference. If you have any another query,
please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready
to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty does not apply to
damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage
to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily
operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing
defects only.

WARNING

1. Please make sure to turn o the power before starting the installation.
2. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire
should be replaced.
3. Installation must be performed by a qualified person.
4. For Indoor use only

FUNCTION

• Can identify day and night: The consumer can adjust working state in di erent ambient light. It can work in the
daytime and at night when LUX knob is adjusted on the "sun" position (max). It can work in the ambient light less
than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing
pattern.
• Time-Delay is added continually: When it receives the second induction
signals within the first induction, it will restart to time from the moment.
• Time-Delay is adjustable. It can be set according to the consumer's
desire. The minimum time is 10sec+3sec. The maximum is 3min±30sec.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.

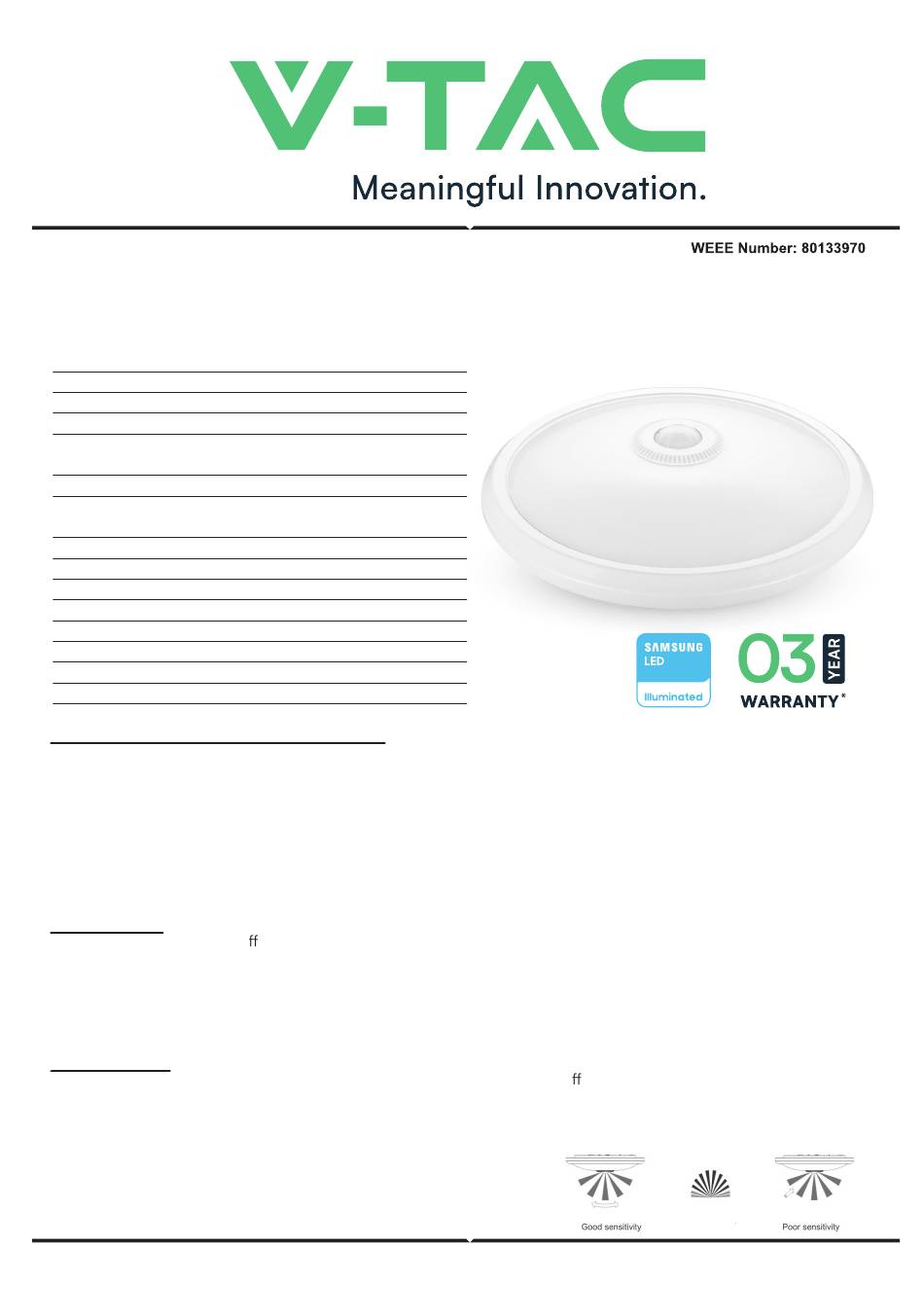

INSTRUCTION MANUAL
LED DOME LIGHT WITH PIR SENSOR
VT-13
21807, 21808, 21809
12W
900 Lm (3000K)
1000 Lm (4000/6400K)
<3-2000 LUX (Adjustable)
Min. 10sec ±3sec
Max. 3min ±30sec
AC: 220-240V, 50/60Hz
360°
6m max (<24°C)
120°
25000 Hours
2-2.4 M
IP20
0.6-1.5 m/s
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
