Multi-play equipment
UKPE012.05R

Advertisement

loading
Need help?

Need help?

Do you have a question about the UKPE012.05R and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY UKPE012.05R

Summary of Contents for BOERPLAY UKPE012.05R

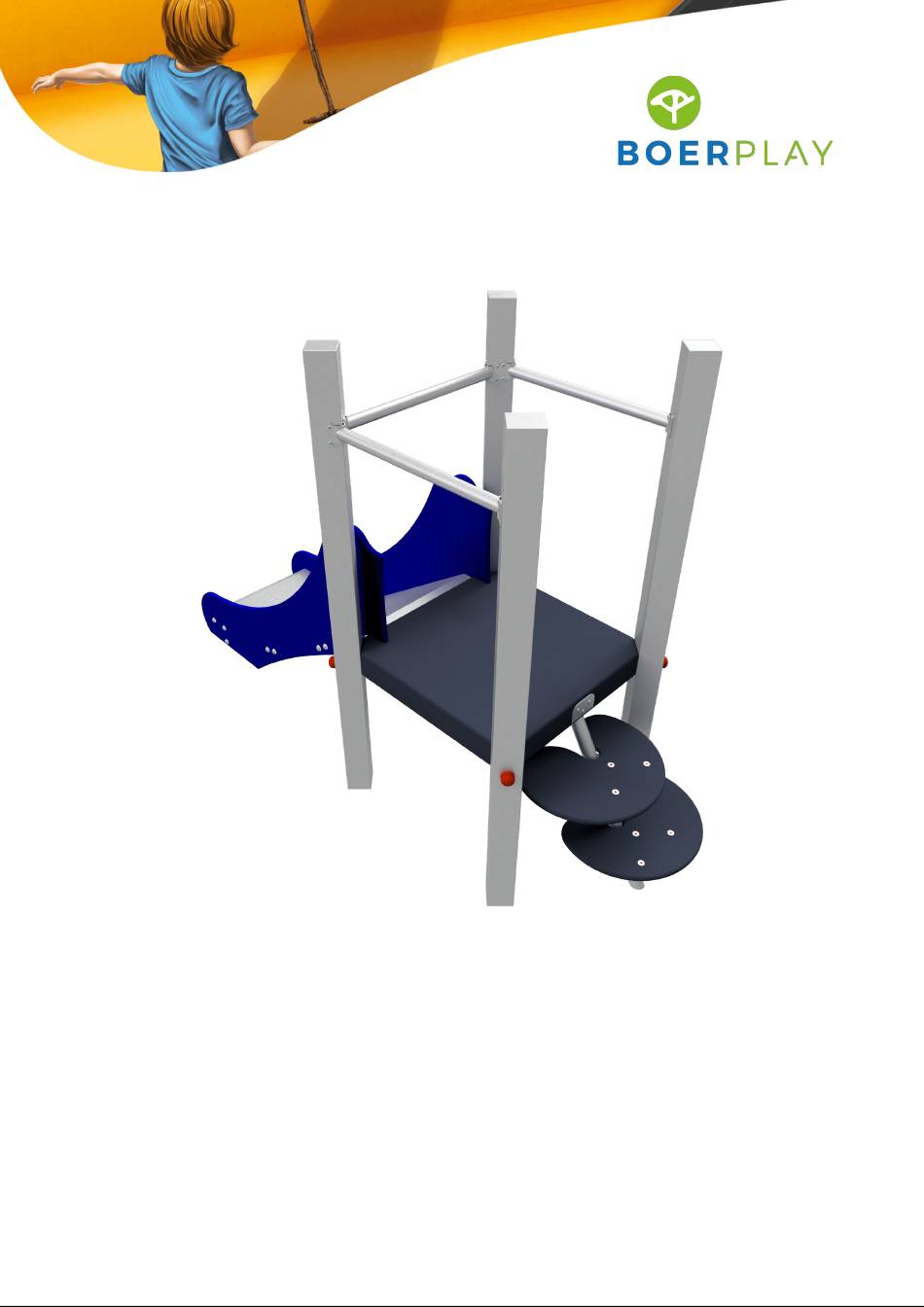

  • Page 1 Multi-play equipment UKPE012.05R...
  • Page 2 0,00 m 0,38 m 0,76 m 1,50 m 0,95 m 0,59 m 0,00 m Benaming TOE UKP 012 05R A Ukkepuk Title Tekening Opmerking Drawing Comment BOER Datum Afmetingen Dimensions 27-1-2015 Date SPEELTOESTELLEN...
  • Page 3 3,80 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE UKP 012 05R A Ukkepuk Title Tekening Opmerking Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 27-1-2015 Date SPEELTOESTELLEN...
  • Page 4 0,20 m 0,95 m 0,44 m 2,56 m 0,65 m 1,90 m Grondmarkering Ground level marker 0,34 m 0,51 m Benaming TOE UKP 012 05R A Ukkepuk Title Tekening Opmerking Drawing Comment BOER Datum Bodemplan Groundplan 27-1-2015 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
  • Page 6 1,50 m 1,31 m 0,59 m 0,00 m Voor (Front) 1,50 m 1,31 m 0,59 m 0,00 m Links (Left) Benaming TOE UKP 012 05R A Ukkepuk Title Tekening Opmerking Drawing Comment BOER Datum Afmetingen Dimensions 27-1-2015 Date SPEELTOESTELLEN...
  • Page 7 LOGBOOK Type indication Article number UKPE012.05R Product Name Multi-play equipment Maximum fall height 0,6 m Construction year 2024 Certificate 142041 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking ANKER PLAAT UKKEPUK VLOER VIERKANT UKKEPUK Staander RVS 80x80, lengte=1990 B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD UKP RVS 104 TOREN LAAG Title...
  • Page 13 BEVESTIGING VLINDER UKKEPUK RVS UKKEPUK SYSTEEMBUIS TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD UKP RVS 130 SYSTEEMBUIS Title...
  • Page 14 Glijbaan Ukkepuk UKKEPUK SYSTEEMBUIS Steunpoot Glijbaan Ukkepuk BEVESTIGING VLINDER UKKEPUK RVS Bevestigingshoek Glijbaan Ukkepuk Zijkant Glijbaan Ukkepuk RING NYLON M10 x 2.5 MM OPVULDOPJE 6 MM ROOD Facet ring M5 - RVS A2-70 SLUITRING Bolkopbout ISO 7380 M10 x 40 - RVS A2-70 Bolkopbout ISO 7380 M10 x 80 - RVS A2-70 DOPMOER...
  • Page 15 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 30 - RVS A2-70 DOPMOER BORG RVS M10 M10 x 35 - RVS A2-70 Verzonken bout SLUITRING Facet ring M5 - RVS A2-70 OPVULDOPJE 6 MM ROOD Platform Boomtrap Trapboom Ukkepuk Benaming...
