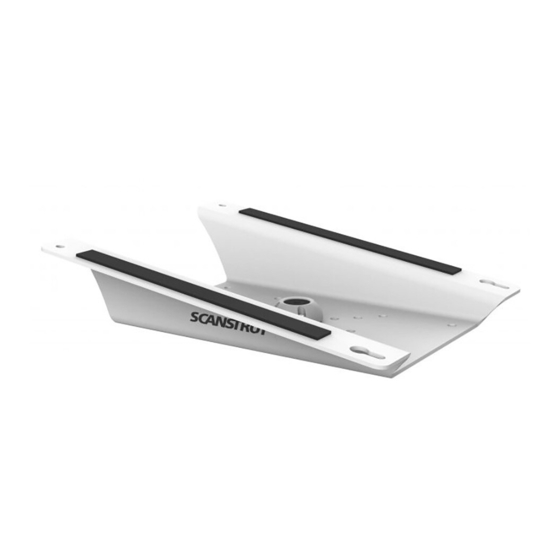

Scanstrut SC-SL-01 Manual

SC-SL-01

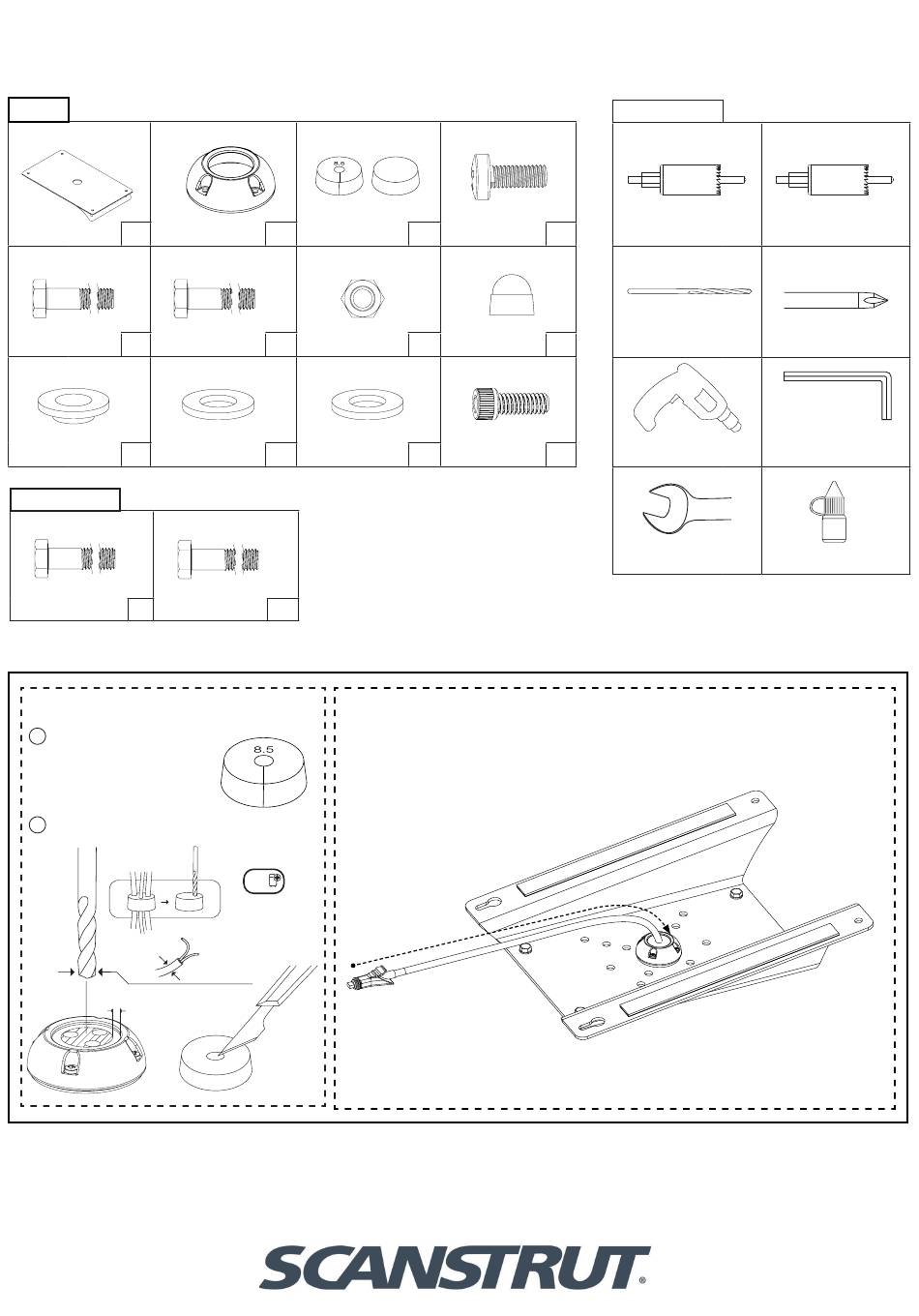

Part List
004765
Foam Seal x1
60818
M8 x 25 Hex Tops
M8 x 16 Hex Tops x6
64015
M8 Nylon
Shoulder Washers
x10 M8 Nylon Washers
Parts Required
Option A
Option B
M8 x 25mm+ M10 x 25mm+
Hex Tops
x4
Waterproof Cable Routing
Use the ø8.5mm bung supplied
1a
for routing the Starlink cable.
For routing a number of cables.
1b
ø =
4mm (0.16")
101819
DS30 Shell x1 DS30 Bungs
60821
x4 M8 Nyloc Nuts
60084
1/4" Stainless
Steel Washers
x4
Hex Tops
x4
Recommended Starlink Cable Length
Pass smaller connector through the cable seal
until the length is at least 600m (23.6
Tip: freeze before drilling
-18°
+ 1.5mm
UK & International
+44 (0)1392531280
sales@scanstrut.com
Scanstrut Ltd
Dart Business Park,
Clyst St. George, Exeter
EX3 0QH, UK
03-01-2024 (Issue 1)
60402
x2 M4 x 10 Bolt
60080 60857
x4 M8 Nut Caps
6004970
6004972
1/4" x 5/8" Cap
Head Screws
x4
"
)
> 600mm
(23.6")
For further installation
and warranty information +1 860 308 1416
please visit: usasales@scanstrut.com
www.scanstrut.com Scanstrut Inc.
7 Pequot Park Road
Westbrook, CT
06498, USA
Installation Instructions
Tools Required
Option A
ø32mm (1 1/4")
Hole Saw/Drill Bit
x4
ø8.5mm (21/64")
Drill Bit
x4
Power Drill
x4
13mm Spanner
.
USA
Option B
ø50-70mm (2"-2 3/4")
Hole Saw
No.1 Pozi Drive
Screwdriver
3/16" Allen Key
Thread Lock
