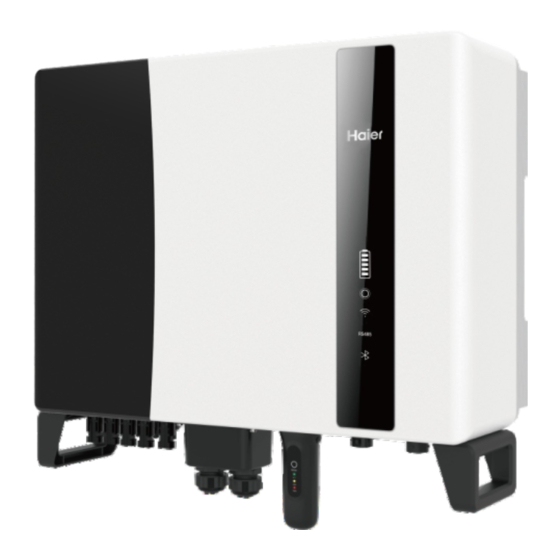

Hybrid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Hybrid Inverter
Applicable models
H3PH-1J5K-EU
H3PH-1J6K-EU
H3PH-1J8K-EU
H3PH-1J10K-EU
Applicable System
Three phase system
Version 1.0, Release Date: 07,2023
