FontanaShowers
FontanaShowers
©
©
Product code: FS147SBG

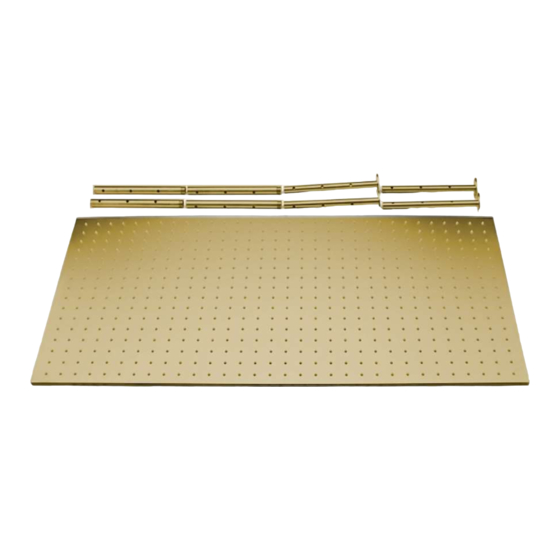

FONTANA SAINT DENIS LARGE BRUSHED GOLD LED
RAIN SHOWER HEAD WITH BODY JETS & HANDHELD
SHOWER INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanashowers.com
FontanaShowers
FontanaShowers
1
Customer Service: 800-684-4489
Advertisement
Table of Contents
Related Manuals for Fontana Showers FS147SBG
Summary of Contents for Fontana Showers FS147SBG
- Page 1 FontanaShowers FontanaShowers © © Product code: FS147SBG FONTANA SAINT DENIS LARGE BRUSHED GOLD LED RAIN SHOWER HEAD WITH BODY JETS & HANDHELD SHOWER INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Page 2 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Shower Head Installations Instruction Parts: Step 1: According to drilling drawing sheet to (B) mark the 4 drilling positions 1, then use the Ø6mm drill to drill holes on the wall according to the marked hole position.
- Page 3 FontanaShowers FontanaShowers © © Step 5: Fixed the top shower with the top shower fixed bar (E) , then connect with the inlet hose (F) . Step 6: The installation is completed. Note: The LED lights are powered by water flow, and will be activated once the water is turned on.
- Page 4 FontanaShowers FontanaShowers © © Hand Shower Installations Instruction Step 1: Step 2: 0.19” (4.8mm) Max 1. SUPPLY ELBOW INSTALLATION Apply plumber tape to threaded ends of 1/2" (13 mm) 2. Mark the place for drilling the hole for the lower iron pipe nipple (not supplied) and thread into post.
- Page 5 FontanaShowers FontanaShowers © © Step 4: 5. Slide the slide mechanism (1) and elbow (2) onto the wall bar (3). Slide wall bar over bracket tabs (4) and secure the wall bar unit with screws (5) provided. Install caps (6) into ends of wallbar. Lower elbow (7) &...
- Page 6 FontanaShowers FontanaShowers © © Body Jets Spray Installations Instruction Step 1: Attach the escutcheon to the body Step 2: Apply teflon tape to threaded tail pipe spray. of the body spray Step 3: Press the escutcheon against the Step 4: Screw the Body spray tightly into the finished wall female of water Supply Pressure Balancing Loop:...
- Page 7 FontanaShowers FontanaShowers © © Mixer Installations Instructions Step 1 Step 2 Anchor Positioning Tapping Screw 1 Tapping Screw 2 Hot Water Button Cover Screw 1 Function 3 Function 1 Diverter Handle Function 2 Temp. Handle Cold Water Rough-in Body On/Off Plate Handle Hex Wrench...
- Page 8 FontanaShowers FontanaShowers FontanaShowers FontanaShowers © © © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected Care &...
