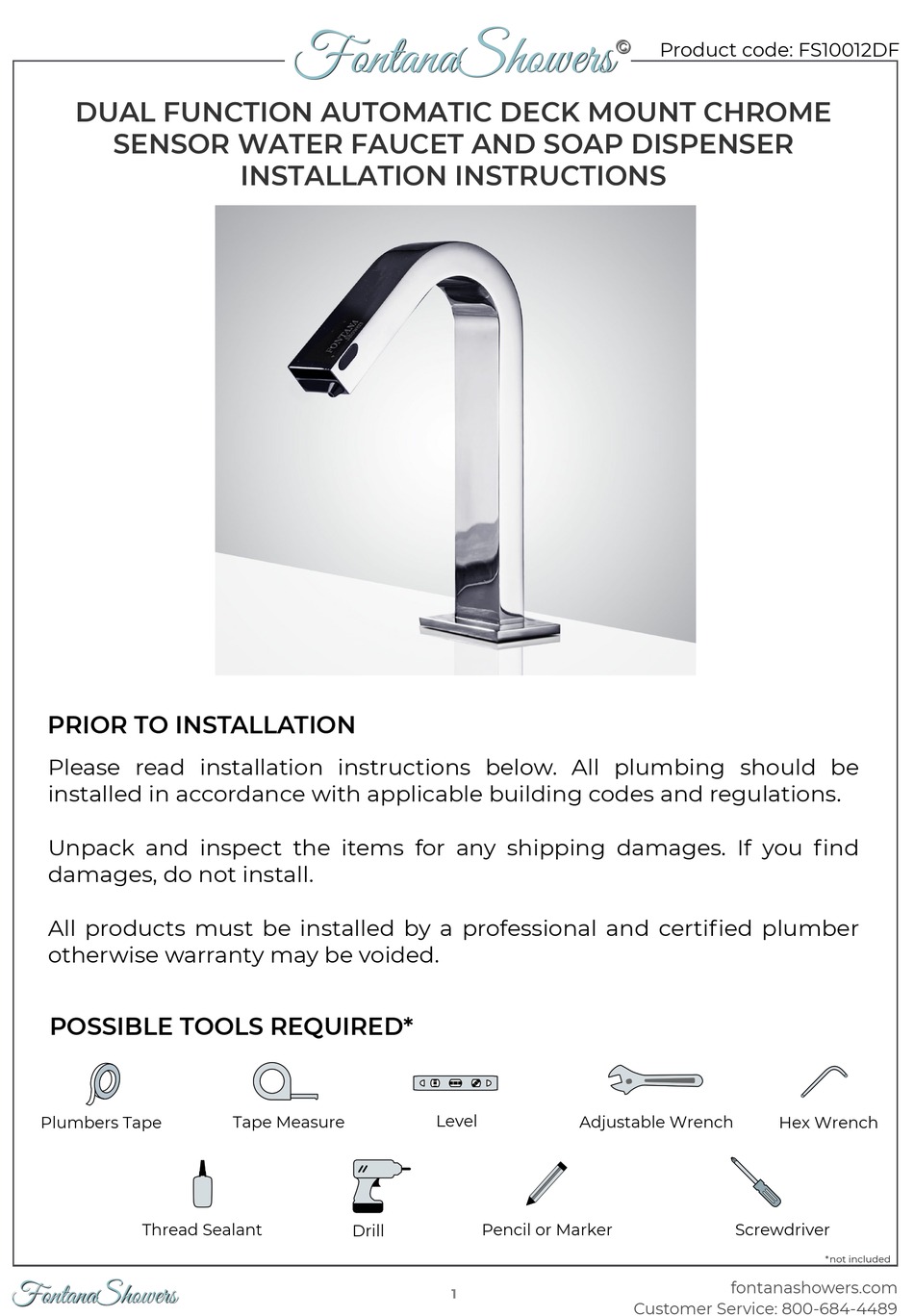

DUAL FUNCTION AUTOMATIC DECK MOUNT CHROME
SENSOR WATER FAUCET AND SOAP DISPENSER
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
FontanaShowers
FontanaShowers
FontanaShowers
FontanaShowers
INSTALLATION INSTRUCTIONS
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
©
Product code: FS10012DF
Hex Wrench
Screwdriver
fontanashowers.com
Customer Service: 800-684-4489
*not included
Advertisement
Related Manuals for Fontana Showers FS10012DF
Summary of Contents for Fontana Showers FS10012DF
- Page 1 FontanaShowers FontanaShowers © © Product code: FS10012DF DUAL FUNCTION AUTOMATIC DECK MOUNT CHROME SENSOR WATER FAUCET AND SOAP DISPENSER INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations.
- Page 2 FontanaShowers FontanaShowers © © Hole Size Chart Faucet Deck Mount Installation Faucet Body Threaded Tube O ring Max counter top thickness without Pre-drilled hole size requirements: deck plate: Rubber Washer Washer Min: 1.26”/32mm - Max: 1.38”/35mm 1.38”/35mm Nut and locking bolts Deck Mount Type 1 Deck Mount Type 2 O ring...
- Page 3 FontanaShowers FontanaShowers © © Overview Faucet Body Soap Bottle Faucet Body Soap Bottle fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 4 FontanaShowers FontanaShowers © © Control Box Installation Instructions 3. Reinstall Battery Box & Control Box Cover Re-install the battery box cover, matching the alignment arrows together. Set the battery box back 5 inch into the control box, and re-assemble the control box cover using the previously removed screws ensuring they are all fully tightened.
- Page 5 FontanaShowers FontanaShowers © © Please wait approximately seconds after 4b. Mount the control box on the wall. Drill two 1/8" connecting the sensor cable for sensor calibration to (3mm) holes as shown, and push drywall anchors complete and to begin using the faucet. into each hole.
- Page 6 FontanaShowers FontanaShowers © © Battery Override Sensor Range In the event of a power failure, the sensor faucet will This sensor faucet can automatically adjust the automatically switch to battery-operated mode to inductive range within 10 seconds of electrification. ensure the faucet continues to function. The sensor Do not use inductor during this period so that the faucet can also operate on the battery alone if no inductor can automatically adjust to a suitable...
- Page 7 FontanaShowers FontanaShowers © © Installation of Soap Bottle Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Soap Refill Process Affix the bottle with Unscrew the Add soap into full soap onto the pump, empty bottle.
-
Page 8: Battery Box
FontanaShowers FontanaShowers © © Deck Mounted Faucet Overview Battery Box Battery case Battery case cover － ＋ Screws ＋ － Batteries fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489... - Page 9 FontanaShowers FontanaShowers © © 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month. Usage Place hands immediately Predetermined amount...
