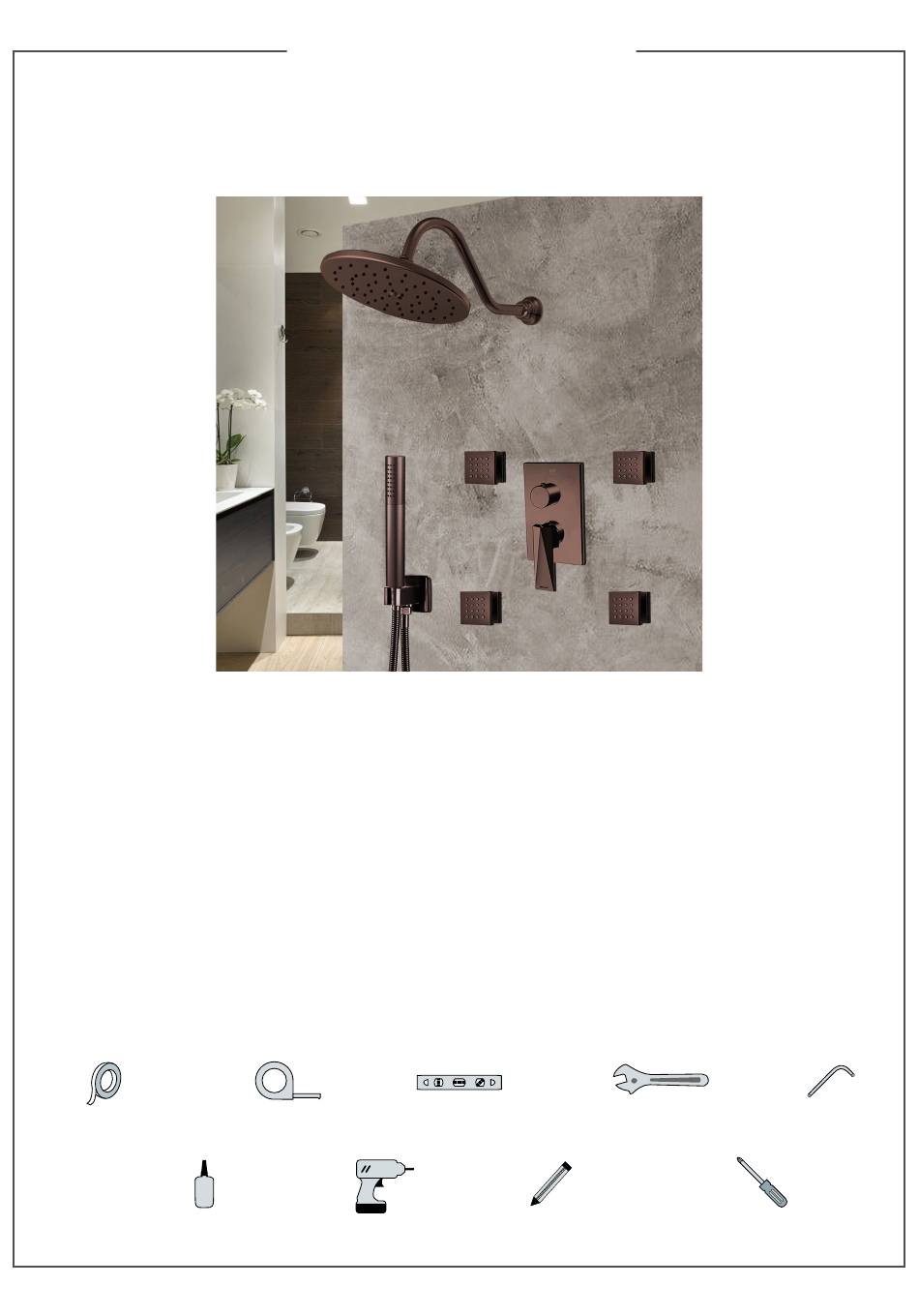

BRAVAT LIGHT OIL RUBBED BRONZE SHOWER SET WITH
VALVE MIXER 3-WAY CONCEALED WALL MOUNTED
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
FontanaShowers
FontanaShowers
FontanaShowers
FontanaShowers
INSTALLATION INSTRUCTIONS
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
©
Product code: FS1064
Hex Wrench
Screwdriver
fontanashowers.com
Customer Service: 800-684-4489
*not included
Advertisement
Related Manuals for Fontana Showers BRAVAT FS1064
Summary of Contents for Fontana Showers BRAVAT FS1064
- Page 1 FontanaShowers FontanaShowers © © Product code: FS1064 BRAVAT LIGHT OIL RUBBED BRONZE SHOWER SET WITH VALVE MIXER 3-WAY CONCEALED WALL MOUNTED INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations. Unpack and inspect the items for any shipping damages.
- Page 2 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Step 1: Step 2: 25mm Trim Ring Wall Slide chrome trim ring onto the appropriate end of the arm. Ensure that a minimum of 13±2mm of 1/2” connection thread protrudes past the finished wall. Simply screw the arm onto the connection.
- Page 3 FontanaShowers FontanaShowers © © Step 1: Take Out the Old Shower Head You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.
- Page 4 FontanaShowers FontanaShowers © © Hand Shower Installations Instruction Step 1: Step 2: Apply Teflon Tape Step 3: Step 4: Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
- Page 5 FontanaShowers FontanaShowers © © Body Jets Spray Installations Instruction G1/2 Step 1: Attach the escutcheon to the body Step 2: Apply teflon tape to threaded tail pipe spray. of the body spray Step 3: Press the escutcheon against the Step 4: Screw the Body spray tightly into the finished wall female of water Supply Pressure Balancing Loop:...
- Page 6 FontanaShowers FontanaShowers © © Mixer Installations Instructions Step 1 Step 2 Open Cold Close 90° Step 3 Step 4 Step 5 Connections Shower Finished Wall Hand Shower Body Jet 69-81 mm Mixer Floor Cold Hot Water Cold Water Inlet Inlet fontanashowers.com FontanaShowers FontanaShowers...
-
Page 7: General Information
FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected. Care &...
