Summary of Contents for Lydsto G1

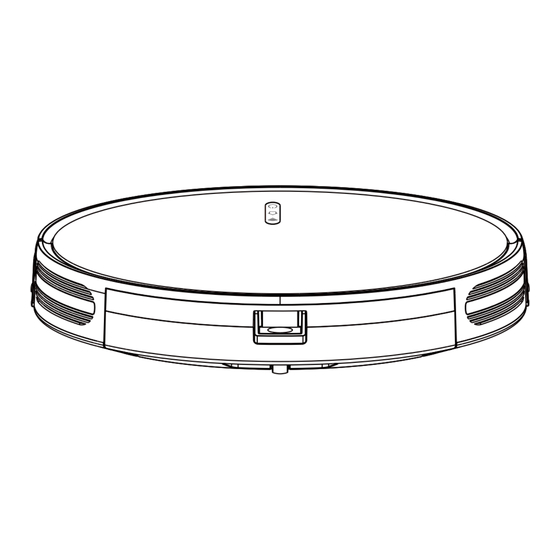

- Page 1 Lydsto Inertial Navigation Sweeping and Mopping Robot G� Instruction Manual...
-
Page 2: Table Of Contents
Contents Safety instructions � Product components � Product usage � Product maintenance �� Product specification �� Troubleshooting �� �... -
Page 3: Safety Instructions
Safety Instructions Restrictions Plastic bags are dangerous! Keep plastic bags out of the reach of infants and children to avoid suffocation on use This product is designed only for cleaning the floor in the home environment. Do not use it outdoors (such as open balcony), in places other than the floor (such as sofa), or in commercial or industrial environment. - Page 4 Battery and Even if the product has been seriously damaged, it is strictly forbidden to burn the product, because charging the product battery may cause explosion. Do not use the batteries, chargers and charging base of any third party. Do not disassemble, repair or refit the battery and charging pile without permission. Do not place the charging base close to heat sources (such as radiator).
-
Page 5: Product Components
Product components �.�Main body Bumper Start / Pause button Recharge button WIFI indicator IR receiving sensor Bottom view sensor Charging docking electrodes Caster Driving wheel Side brush Power switch (on/off) Battery cover Roller brush � in � water tank �... - Page 6 �.� Product and other components Charging base Adapter Sponge filter and efficient filter screen � in � water tank � x side brushes Roller brush Cleaning brush �.� Charging base Signal transmitting area Charging indicator Docking electrodes �...
- Page 7 Connect to Lydsto APP Lydsto APP can be downloaded from Apple APP market or Google APP market. Or Scan the following QR code,Download and install Lydsto APP. Reset Wi Fi Press button and button for � seconds at the same time, and hear the sound prompt “Wi-Fi has been reset”...
-
Page 8: Product Usage
Product usage �.� Quick start Connect the charging base and put the remaining cord into the cord storage box on the bottom of the charging base. Warm prompt: the cord not retracted may trap the cleaning or recharge-searching machine. Position of charging base �. - Page 9 Activate the product Ensure the metal docking electrodes on the charging base match the metal charging electrodes on the bottom of robot. Place the \product on the charging base. If the activation is successful, the product will sound a sequence of ticks. Once the on-off key lights up, the product is ready to run.
-
Page 10: Product Maintenance
Fixed-point cleaning Select the fixed-point cleaning mode, then the machine will rotate spirally outward and clean only a local area of about �m diameter and then circle inward to the starting point. Provide the optimum cleaning on the necessary site for you. Please place the machine on the dirty location, then press the“Spot cleaningon”the APP. - Page 11 �.�Empty the � in � water tank � in � water tank � in � water tank Press the release button Open the cover to empty it. to take it down. �.� Clean filter Grab the white label to remove the filter. Shake off...
- Page 12 Take down the side brush. Clean the Clean the roller brush and remove the hair wound side brush with a cloth. on the roller brush using the provided cleaning tool. Use the cleaning brush to clean the caster. Use the cleaning brush to clean the dust on the sensor to ensure the optimum performance.
- Page 13 Indicator and alarm prompt Indicator prompt Machine status Display status Charging Yellow indicator breathing Charging completed Blue indicator keeps on Machine fails Red indicator keeps on / blinks Low battery Blue indicator keeps on Cleaning mode Blue indicator keeps on Configure network White indicator quickly blinks Configure network successfully...
-
Page 14: Product Specification
Red light keeps on Prompt tone Causes Solution Check the driving wheel is wound and clean �� � time Driving wheel is abnormal the side brush �� � times The side brush is abnormal Check the side brush is wound and clean the side brush ��... -
Page 15: Troubleshooting
Troubleshooting In case of any problem below during product use, please check accordingly and solve it independently. Fault conditions Possible reason Solution Ensure to fully contact the charging Machine fails to The charging electrodes of machine and charging electrodes of machine and charging charge base fail to fully contact with each other.
