KMC Controls CMC-1002 Installation Manual

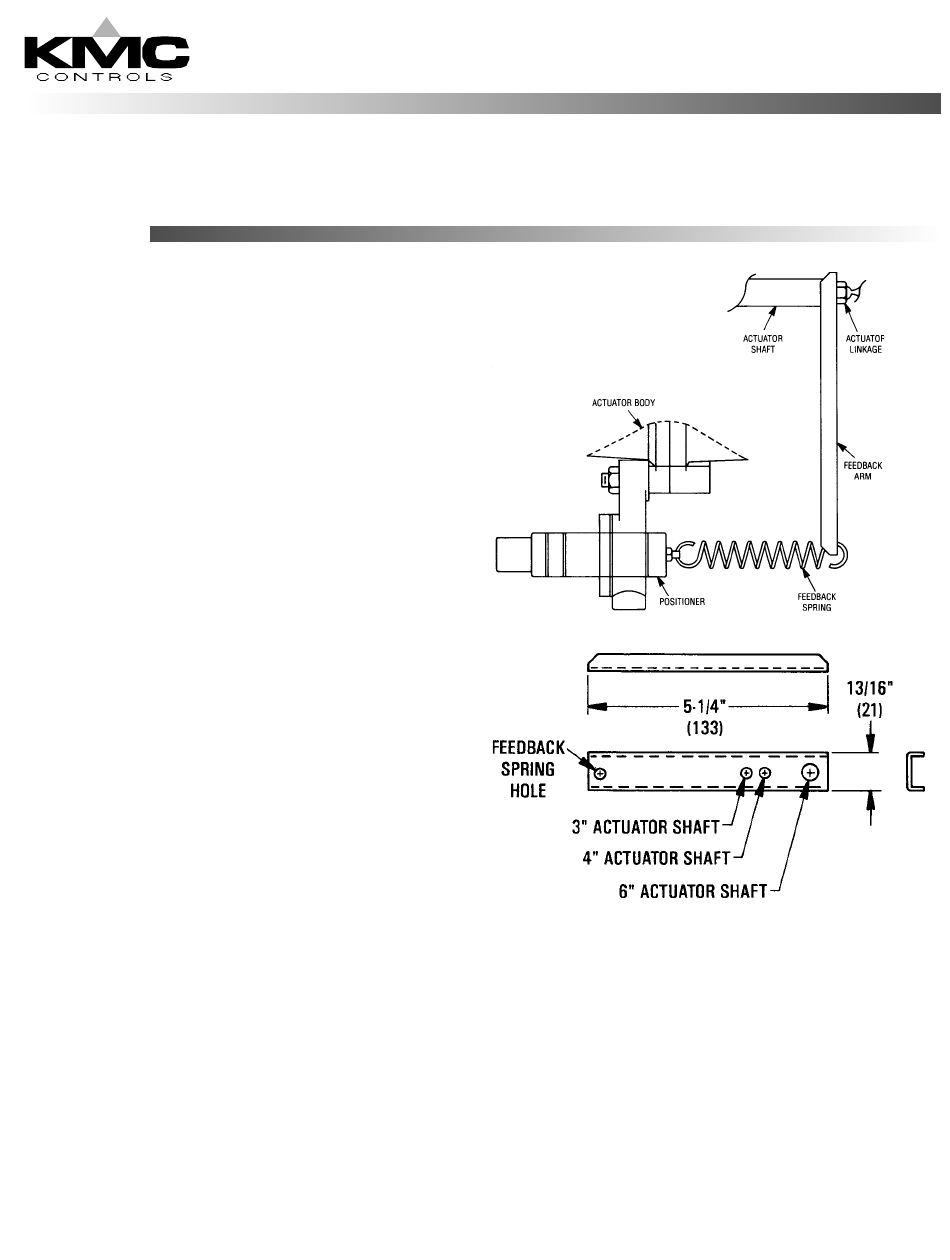

Mounting
The CMC-1002 mounts directly on the actuator.
1. Remove one of the screw/bolts that hold the
actuator housing together. DO NOT remove
more than one screw/bolt.
2. Slide the positioner over the mounting boss,
threading the boss through the 5/16" (8 mm)
diameter mounting hole.
3. Reinstall the screw/bolt. Be careful not to cross-
thread the actuator housing.
4. Using the proper hole in the feedback arm, slide
the arm over the actuator shaft. The arm is held
between the shaft and the damper linkage.
5. Connect the 5 psi or 10 psi feedback spring to
hole at the base of the feedback arm
6. Connect the other end of the feedback spring to
the positioner.
Installation Guide
Metallic Positive Positioner
CMC-1002
