KMC Controls CMC-1001 Installation Manual

Mounting
The CMC-1001 is designed to mount directly on the
MCP-1030 /1130 /1040 /1140 /5140 /1160 and /5160
series actuators.
1. Remove one of the screw/bolts that hold the
actuator housing together. DO NOT remove more
than one screw/bolt.
2. Slide the positioner over the mounting boss
3. Reinstall the screw/bolt. Be careful not to cross-
thread the actuator housing.

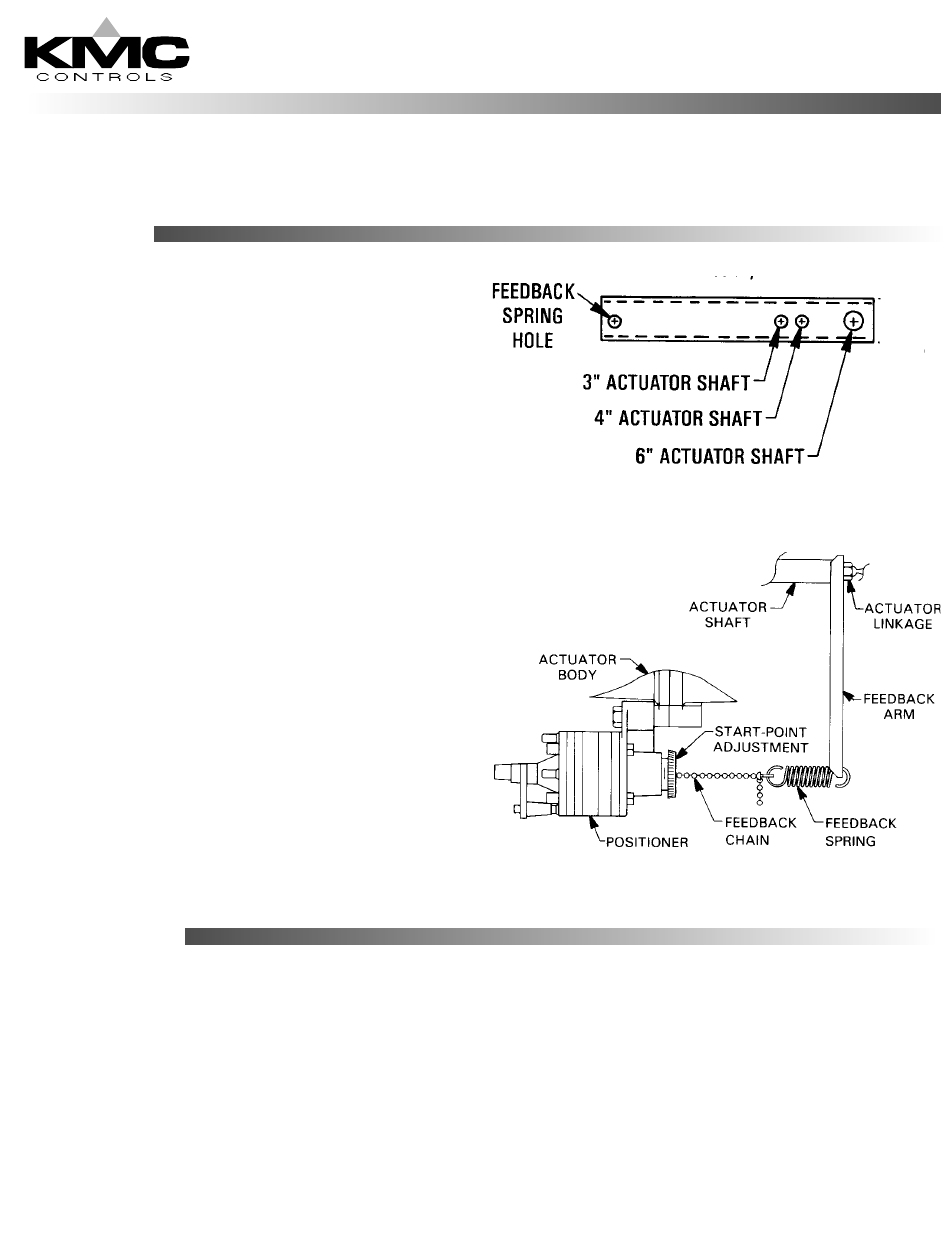

4. Using the proper hole in the feedback arm, slide the
arm over the actuator shaft. The arm is held
between the shaft and the damper linkage.
5. Connect the 5 psi or 10 psi feedback spring to the
hole at the base of the feedback arm
6. Connect the other end of the feedback spring to the
feedback chain. There should be no slack between
the positioner and the arm.
Connections
1. Using 1/4" (6 mm) O.D. FR tubing, connect the main air supply to the 3/16" (5 mm) port on the
bottom of the unit.
2. Provide a supply of clean, dry, 20-30 psig (38–207 kPa) control air
3. Connect the input, start-point, pressure to "Port 2"
4. Connect Port #1 to the actuator
5. Insert the small beige in-line restrictor in the line between Port #1 and all 3" and 4" actuators.
This part is not needed on 6" actuators.
Installation Guide
Non-Metallic Positive Positioner
CMC-1001
