- Page 1 INSTRUCTION/MAINTENANCE MANUAL PG Series akwOrks ® PG350 PG300 PG200 made in the USA with US & imported parts www.oakworksmed.com · 717.235.6807...
- Page 2 © Copyright 2013 OAKWORKS , Inc. ® Notice The information contained in this document is subject to change without notice and should not be construed as a commitment by OAKWORKS , Inc. ® English, Printed in USA OAKWORKS , Inc. assumes no ®...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Symbol Identification ....................1 Important Safety Instructions ................1 & 2 Section I: Product Description & Photo PG350 ......................3 PG300 ......................4 PG200 ......................5 Section II: Installation Grounding ....................6 Section III: Directions for Use Control Operations - Hand Control - PG200 .......... -
Page 4: Symbol Identification
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE The PG Series tables are powered positioning examination tables used to support the patient during medical procedures. The table is intended to be operated by a healthcare INSTRUCTIONS professional in a medical environment. No special training is required but a review of the following Safety Instructions is important for the safety of the operator and patient. - Page 5 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CONTINUED READ AND SAVE THESE The use of accessories, transducers, and cables other than those specified by the manufacturer, may result in increased emissions or decreased immunity of the Table. INSTRUCTIONS The Table should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, the Table should be observed to verify normal operation in the configuration in which it will be used.

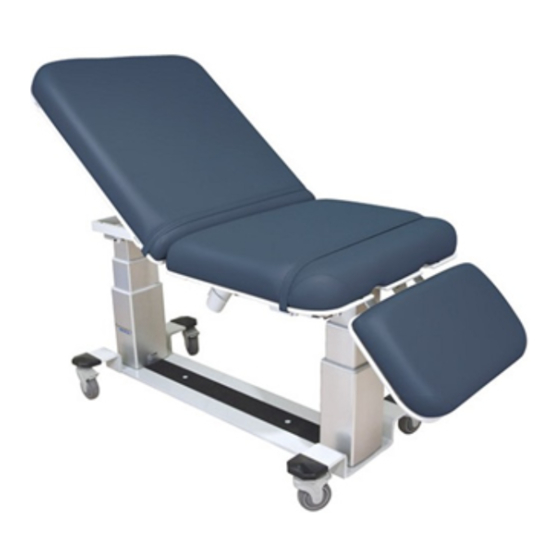

- Page 6 PRODUCT DESCRIPTION PG350 Paper roll holder foot control Electric Backrest optional hand control Adjustable four position leg section Electric PG350 Lift Towers Locking Casters Motion 1 22”-38” (56-97cm) Height Motion 2 15º/15º Tilting Motion 3 0-80º Backrest Motion 4 Manual 4 Position Leg Section OPTIONS STANDARD CODE...
- Page 7 PRODUCT DESCRIPTION PG300 Paper roll holder foot control Electric Backrest optional hand control Electric PG300 Lift Towers Locking Casters Motion 1 22”-38” (56-97cm) Height Motion 2 15º/15º Tilting Motion 3 0-80º Backrest OPTIONS STANDARD CODE Multi-function Foot Control Controls all powered movements Central Base Locking System Secure your table in place Table Voltage Options...
- Page 8 PRODUCT DESCRIPTION PG200 foot control Paper roll holder optional hand control Electric Lift Towers PG200 Locking Casters Motion 1 22”-38” (56-97cm) Height Motion 2 15º/15º Tilting STANDARD OPTIONS CODE Multi-function Foot Control Controls all powered movements Central Base Locking System Secure your table in place Table Voltage Options US or International electronics...
-
Page 9: Section Ii: Installation
INSTALLATION The Tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 10: Section Iii: Directions For Use
DIRECTIONS FOR USE Controls: The Foot Control and optional Hand Control operates all functions of the table with the touch of a button. Follow the directions below to access these functions. If a function button does not release, pressing and holding any other function button will stop the motion. -
Page 11: Control Operations - Hand Control - Pg300
DIRECTIONS FOR USE HAND CONTROL OPERATIONS - PG350 & PG300 optional hand control Table UP Control: elevates tabletop Foot End tilt is preserved during elevation Trendelenburg Control: until first column reaches limit. activates tilt up to 15º Backrest: positioning stops when activates backrest table is level;... -
Page 12: Side Rail Use
DIRECTIONS FOR USE SIDE RAIL USE TO LOWER SIDE RAILS TO RAISE SIDE RAILS Push side rail in lightly towards the center Grasp side rail and rotate to the raised of the table, then push locking knob down position. When fully up, the side rail will towards the table base. -
Page 13: Central Base Locking System
DIRECTIONS FOR USE CE NT RA L BA S E L OC KI NG S Y S TE M The table base can be locked in two ways to prevent caster movement. The easiest way is to use the central locking system. TO LOCK TO UN-LOCK Press down on locking arm with your... -
Page 14: Operating The Manual Adjustable 4 Position Leg Section
DIRECTIONS FOR USE OPERATING THE MANUAL ADJUSTABLE FOUR POSITION LEG SECTION CAUTION TO LOWER THE LEG SECTION TO RAISE THE LEG SECTION Do not sit on the elevated Raise leg section above horizontal Raise the leg section by pulling it Back Rest or Leg Rest. -
Page 15: Paper Roll Holder
DIRECTIONS FOR USE PAPER HOLDER USE To load the paper, pull down on Insert rod through paper roll and place two paper holder support arms rod into the holes in the support arms. located on the under side of Fowler. Rotate to 90º... -
Page 16: Quicklock Face Rest
DIRECTIONS FOR USE QUICKLOCK FACE REST * U.S. Patent #5,177,823 NOTE: Double articulating action provides nearly limitless positioning options You will need with the QuickLock Face Rest. The adjustable pad takes pressure off ™ an accessory mounting sensitive facial areas while providing superb support. The QuickLock ™... -
Page 17: Patient Lift Compatible Base
DETACHABLE ARM BOARD CAUTION This product can be used on any of the PG Series tables with a T-Rail Do not put excessive weight or pressure on arm board. Adapter and can support a variety of positioning configurations. -
Page 18: Section Iv: Maintenance & Service
• Check for tears or cracks in the tabletop pads. MAINTENANCE • No specific maintenance tasks are required. • Oakworks medical tables are designed and built to provide many years of dependable service. Please follow local regulations and laws when disposing of the electrical components used in this table. -
Page 19: Troubleshooting
MAINTENANCE & SERVICE TROUBLESHOOTING IMPORTANT DUTY CYCLE The Oakworks tables have two lifting columns that raise and lower the table. Some tables have one or two actuators that allow the client to be positioned for both client and therapist comfort. Each of these devices has a duty cycle of approximately 10%, meaning 2 minutes of operation within a 20 minute period. -
Page 20: Foot And Hand Control Replacement
MAINTENANCE & SERVICE FOOT CONTROL REPLACEMENT INSTRUCTIONS Replacement of the foot control may be necessary if the foot control does not actuate the table functions. See troubleshooting section for details. To replace the foot control, follow these steps: 1. Unplug power cord. 2. The foot control is connected to a junction box above the control box. -
Page 21: Warranty Information
MAINTENANCE & SERVICE WARRANTY INFORMATION View complete warranty details at www.oakworks.com POWER CORD PLUG PARTS OAKWORKS Part #.: Voltage (AC) Power Cord Plug 5097-11 120v 60 Hz 3 prong grounded hospital grade; North America 5097-3 220v 50/60 Hz Continental Plug; Europe 5097-4 220v 50 Hz Swiss plug;... -
Page 22: Model Number And Serial Number Location
MAINTENANCE & SERVICE MODEL NUMBER & SERIAL NUMBER LOCATION The model number and serial number are located on the lift column at the foot end of the table. Dual Tower Ultrasound Tables Model Number 3034177 CONFORMS TO: ANSI/AAMI STD ES60601-1 16796025 USGNG23022723MTTZZ2S IEC STD 60601-1-6 Serial Number... -
Page 23: Wiring Diagram
MAINTENANCE & SERVICE WIRING DIAGRAM ELECTRICAL SPECIFICATIONS Designed for: North America Europe Japan Input Service 120 VAC/15 amp/60Hz 220 VAC/10 amp/50/60Hz 100 VAC/20 amp/50Hz Maximum 4.0 amps 2.0 amps 5.0 amps Momentary Current Consumption Voltage Output to 24 VDC 24 VDC 24 VDC Actuators Electric Shock... -
Page 24: Guidance And Manufacturer's Declaration -Electromagnetic Emissions
MAINTENANCE & SERVICE Guidance and manufacturer’s declaration –electromagnetic emissions The table The Ultrasound Table is intended for use in the electromagnetic environment specified below. The customer or the user of the table user of the Ultrasound Table should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... -
Page 25: Guidance And Manufacturer's Declaration -Electromagnetic Immunity
MAINTENANCE & SERVICE Guidance and manufacturer’s declaration –electromagnetic immunity The Ultrasound Table is intended for use in the electromagnetic environment specified below. The customer or the user of the The table Ultrasound Table should assure that it is used in such an environment. Electromagnetic environment Immunity test IEC 60601 test level... - Page 26 MAINTENANCE & SERVICE Guidance and manufacturer’s declaration –electromagnetic immunity The table The Ultrasound Table is intended for use in the electromagnetic environment specified below. The customer or the user of the Ultrasound Table should assure that it is used in such an environment. Compliance –...
- Page 27 NOTES...
-
Page 28: Contact Information
I N S T R U C T I O N M A N U A L PG Series CONTACT INFORMATION: Inc. ® akworks 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworksmed.com European Authorized Representative...
