Summary of Contents for Oakworks Medical CFPMFXH

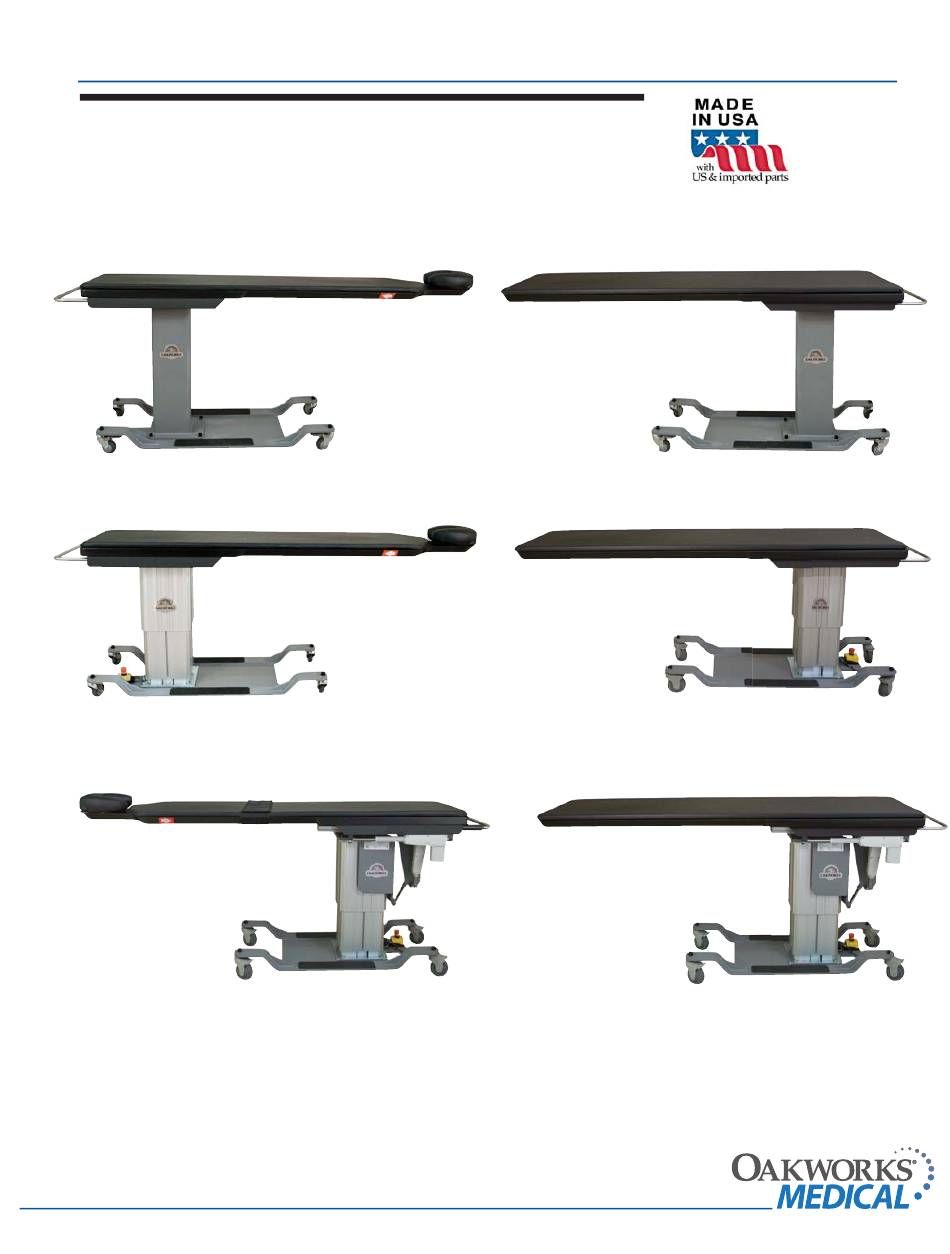

- Page 1 INSTRUCTION MANUAL Fluoroscopy Table CFPMFXH CFPMFXH integrated headrest top rectangular top CFPM100 CFPM100 integrated headrest top rectangular top CFPM400 CFPM400 integrated headrest top rectangular top...
- Page 2 © Copyright 2007 OAKWORKS , Inc. ® Notice The information contained in this document is subject to change without notice and should not be construed as a commitment by , Inc. ® AKWORKS Manual Part # MMMNST0008, rev.02.19.10 Edition, October 2007 , Inc.
-
Page 3: Table Of Contents
Emergency Stop pg 13 ...................... Usable Imaging Area Diagrams CFPMFXH & CFPM100 - integrated headrest tops....pg 14 CFPMFXH & CFPM100 - rectangular tops......... pg 15 CFPM400 - integrated headrest tops........pg 16 CFPM400 - rectangular tops............pg 17 Weight Capacity Limitations ................ - Page 4 ....pg 25 ............Section VII: List of Parts ............... pg 26 Section VIII: Specifications CFPMFXH, 100 & 400......pg 27 pg 28 Guidance & Manufacturers Decloration - Emissions (all systems)..pg 29 Recommended Separations - Distances from the CFPM400 ..
-
Page 5: Symbol Identification
SYMBOL IDENTIFICATION SYMBOL IDENTIFICATION The O Fluoroscopy Table is a radiographic table intended for use with ® AKWORKS mobile or compact stationary C-arm Fluoroscopy Systems. It is ideally suited for pain management imaging and therapeutic procedures. This symbol, when used in this manual and on product labels, represents a caution warning. -
Page 6: Indications & Contraindications
The patient may lose balance and fall. (CFPM100 & 400 only) The CFPMFXH is a fixed height table. It is recommended that all patients are assisted onto the table (physical assistance & step stools with side rails is recommended.) Patient Safety Strap must be secured prior to using the Trendelenburg/Reverse Trendelenburg function. - Page 7 WARNINGS / PRECAUTIONS WARNINGS: (CONTINUED) WARNINGS: (cont.) Electrical Shock Hazard. (CFPM100 & 400 only) The power supply/control mod- ule is located inside lifting column and under the top. No user serviceable parts are inside. Refer servicing to qualified personnel. Unplug wall connector prior to con- tact with any cables connected to the power supply.
-
Page 8: Cfpmfxh - 22" X 84" Integrated Headrest Top
• Width: 22” (56 cm) CAUTION • Length: 84” (214 cm) • Patient The CFPMFXH is a fixed height Capacity: 500 lbs.(227 kg.) distributed evenly table. It is recommended that • Table Weight: 350 lbs. (159 kg.) all patients are assisted onto shipping 400 lbs.(182 kg.) -
Page 9: Cfpmfxh - 24" X 80" Rectangular Top
• Width: 24” (61 cm) CAUTION • Length: 80” (203 cm) • Patient The CFPMFXH is a fixed height Capacity: 500 lbs.(227 kg.) distributed evenly table. It is recommended that • Table Weight: 350 lbs. (159 kg.) all patients are assisted onto shipping 400 lbs.(182 kg.) -
Page 10: Cfpm100 - 22" X 84" Integrated Headrest Top
PRODUCT DESCRIPTION - CFPM100 PRODUCT DESCRIPTION - CFPM100 22” X 84” INTEGRATED HEADREST TOP Carbon Fiber Top with Removable Table Top Pad Hand Rail Integrated Electronic Face Rest Lift Tower with Face Cushion Power kill switch Locking Casters Includes 3-pad Set: (2 sets) 1) 2”... -
Page 11: Cfpm100 - 24" X 80" Rectangular Top
PRODUCT DESCRIPTION - CFPM100 PRODUCT DESCRIPTION - CFPM100 24” X 80” RECTANGULAR TOP Carbon Fiber Top with Removable Table Top Pad Hand Rail Electronic Lift Tower Power kill Locking switch Casters (2 sets) Table Specs* : • Height Range: 22” - 40” (56 cm - 102 cm) •... -
Page 12: Cfpm400 - 22" X 84" Integrated Headrest Top
PRODUCT DESCRIPTION - CFPM400 PRODUCT DESCRIPTION - CFPM400 22” X 84” INTEGRATED HEADREST TOP Carbon Fiber Top with Removable Table Top Pad Hand Rail Integrated Electronic Face Rest Lift Tower with Face Cushion Power kill switch Locking Includes 3-pad Set: Casters 1) 2”... -
Page 13: Cfpm400 - 24" X 80" Rectangular Top
PRODUCT DESCRIPTION - CFPM400 PRODUCT DESCRIPTION - CFPM400 24” X 80” RECTANGULAR TOP ” RECTANGULAR TOP Carbon Fiber Top with Removable Table Top Pad Hand Rail Electronic Lift Tower Power kill switch Locking Casters (2 sets) Table Specs* : • Height Range: 26”... -
Page 14: Section Ii: Directions For Use
DIRECTIONS FOR USE DIRECTIONS FOR USE The O Fluoroscopy Table offers a variety of positioning capabilities for ® AKWORKS diagnostic x-ray imaging and imaging during therapeutic procedures. Although it was designed principally for use during pain management x-ray diagnostic and therapeutic procedures, it may also be used for other diagnostic proce- dures involving x-ray imaging provided the instructions in this manual are observed. -
Page 15: Adjusting Tilt & Longitudinal Travel (Cfpm400 Only)
DIRECTIONS FOR USE DIRECTIONS FOR USE ADJUSTING TILT & LONGITUDINAL TRAVEL (CFPM400 ONLY) The CFPM400 also comes with a hand control for controling Trendlenburg, Lateral roll and Longitudinal travel. Bubble levels are installed on the handle end of the table to aid the operator to determine the horizontal plane. -
Page 16: Adjusting Table Top Pad
DIRECTIONS FOR USE - ADJUSTING THE TABLE TOP PAD DIRECTIONS FOR USE REMOVAL OF TABLE PAD (optional accessory) ADJUSTING THE TABLE TOP PAD Underside of Tabletop Remove Table Pad by pulling flaps at the underside of the table on either end until the hook and loop fastener becomes unanchored. -
Page 17: Moving The Fluoroscopy Table
DIRECTIONS FOR USE - MOVING THE TABLE DIRECTIONS FOR USE MOVING FLUOROSCOPY TABLE Be sure to lower table completely before attempting to move it. NOTE Casters are designed for normal Hospital/ Clinic environments. Not intended for outdoor travel/use Unlocked Caster - Table may be moved Push down until locking lever clicks into place. -
Page 18: Usable Imaging Area Diagrams Cfpmfxh & Cfpm100 - Integrated Headrest Tops
DIRECTIONS FOR USE - USABLE IMAGING AREA DIRECTIONS FOR USE - USABLE IMAGING AREA - CFPMFXH & CFPM100 INTEGRATED HEAD REST TOP TABLES ONLY... -
Page 19: Cfpmfxh & Cfpm100 - Rectangular Tops
DIRECTIONS FOR USE - USABLE IMAGING AREA DIRECTIONS FOR USE - USABLE IMAGING AREA - CFPMFXH & CFPM100 RECTANGULAR TOP TABLES ONLY... -
Page 20: Cfpm400 - Integrated Headrest Tops
DIRECTIONS FOR USE - USABLE IMAGING AREA DIRECTIONS FOR USE - USABLE IMAGING AREA - CFPM400 INTEGRATED HEADREST TOP TABLE ONLY... -
Page 21: Cfpm400 - Rectangular Tops
DIRECTIONS FOR USE - USABLE IMAGING AREA DIRECTIONS FOR USE - USABLE IMAGING AREA - CFPM400 RECTANGULAR TOP TABLE ONLY... -
Page 22: Weight Capacity Limitations
DIRECTIONS FOR USE - WEIGHT CAPACITY DIRECTIONS FOR USE WEIGHT CAPACITY & PATIENT USE The O ® table top is rated at 500 lb. load evenly distributed. To minimize AKWORKS any risk to the patient, do not allow the patient to sit on the face rest area beyond the warning line on the table top. -
Page 23: Section Iii: Troubleshooting
TROUBLESHOOTING - GROUND POINT TESTING TROUBLESHOOTING GROUND POINT TESTING (CFPM100 & 400 ONLY) Connect the tester to the ground post. IF THE TABLE TOP WILL NOT CHANGE HEIGHT OR TILT - CFPM100 & CFPM400 MODELS CAUTION • Check the outlet to be sure that it has power and that the power cable is plugged in. -
Page 24: Hand & Foot Control Replacement Instructions
TROUBLESHOOTING - CONTROL REPLACEMENT TROUBLESHOOTING FOOT CONTROL REPLACEMENT INSTRUCTIONS - CFPM100 & CFPM400 Replacement of the foot control will be necessary if the foot control does not activate the function of elevation. To Replace the foot control, follow these steps: 1. -
Page 25: Section Iv: Product Care And Maintenance
PRODUCT CARE AND MAINTENANCE PRODUCT CARE & MAINTENANCE CLEANING TABLE Use only a mild detergent solution or 10% sodium hypochlorite IMPORTANT solution on surfaces. Be sure excess liquid does not drip onto any other surfaces or mechanisms. Disinfectants other than recommended above will harm the table’s surface. -
Page 26: Section V: Optional Accessories
OPTIONAL ACCESSORIES OPTIONAL ACCESSORIES CARBON FIBER ARM BOARD CAUTION Upper Arm When making adjustments Board rotates in positioning be sure to as needed observe all cautions and a full 180º Carbon Fiber warnings given in the manu- Arm Board Prone Position at 135º base slides al to prevent injury to both under table... -
Page 27: Spine Positioning System
OPTIONAL ACCESSORIES OPTIONAL ACCESSORIES SPINE POSITIONING SYSTEM CONTOURED TORSO 7” X 12” RECTANGULAR SUPPORT PAD ADJUSTER PADS (2) 8” X 16” RECTANGULAR CRESCENT FACE T FACE ADJUSTER PADS (2) REST PAD RADIOLUCENT FRAME WITH ADJUSTABLE FACE REST CONTOURED TORSO WEDGES (2) 8”... -
Page 28: Section Vi: Product Identification
PRODUCT IDENTIFICATION PRODUCT IDENTIFICATION Model No.: Description FLDBFD223784CF CFPMFXH; Carbon Fiber Integrated Headrest Top North America FLDBRTFD243780CF CFPMFXH; Carbon Fiber Rectangular Top FLDB222284CF CFPM100; Carbon Fiber Integrated Headrest Top; 3 prong grounded hospital grade power cord plug / North America FLDBRT242280CF CFPM100;... -
Page 29: Power Cord Variables
POWER CORD VARIABLES POWER CORD VARIABLES Plug View: Voltage (AC) Power Cord Plug Power Cord Variables 120v 60 Hz 3 prong grounded hospital grade; North America 220v 50 Hz Continental Plug; Europe 220v 50 Hz Swiss plug; Switzerland 220v 50 Hz British plug;... -
Page 30: Section Vii: List Of Parts
LIST OF PARTS LIST OF PARTS FLUOROSCOPY TABLE Part No. Description 55848 Locking Caster (4) 9723-110 Lift Tower (110 v.) 9723-220 Lift Tower (220 v.) 53330 Foot Control with Cord & Plug 56035 Hand Control with Cord & Plug (For CFPM400) 4796-06 Integrated Face Rest Pad / 2”... -
Page 31: Section Viii: Specifications Cfpmfxh, 100 & 400
SPECIFICATIONS SPECIFICATIONS Temperature: 32 - 100º F 0 - 38ºC Humidity: 60% relative humidity Pressure: no limitations known Storage & Transport During transport, DO NOT stack containers. Materials of This product contains no latex. Construction Tabletop Carbon Fiber; 1.64” x 22” x 84” (41.7 mm x 559 mm x 2134 mm) Patient Comfort (1”... -
Page 32: Guidance & Manufacturers Decloration - Emissions (All Systems)
SPECIFICATIONS SPECIFICATIONS Table 201 – Guidance and Manufacturer’s Declaration – Emissions All Equipment and Systems Guidance and Manufacturer’s Declaration - Emissions (CFPM100 & 400 only) The CFPM400 is intended for use in the electromagnetic environment specified below. table The customer or user of the CFPM400 should ensure that it is used in such an table environment. -
Page 33: Recommended Separations - Distances From The Cfpm400
SPECIFICATIONS SPECIFICATIONS Table 206 – Recommended Separation Distances between portable and mobile RF Communications equipment and the CFPM400 Equipment and Systems that are NOT Life-supporting Recommended Separations Distances for the CFPM400 CFPM100 & CFPM400 The CFPM400 is intended for use in the electromagnetic environment in which radiated table disturbances are controlled. -
Page 34: Guidance & Manufacturers Decloration - Immunity
SPECIFICATIONS SPECIFICATIONS Table 202 – Guidance and Manufacturer’s Declaration – Immunity All Equipment and Systems Guidance and Manufacturer’s Declaration – Immunity (CFPM100 & 400 only) The CFPM400 is intended for use in the electromagnetic environment specified below. table The customer or user of the CFPM400 should ensure that it is used in such an table environment. -
Page 35: Guidance & Manufacturers Decloration - Emmissions (Equipment That Is Not Life Supporting)
SPECIFICATIONS SPECIFICATIONS Table 204 – Guidance and Manufacturer’s Declaration – Emissions Equipment and Systems that are NOT Life-supporting Guidance and Manufacturer’s Declaration – Emissions (CFPM100 & 400 only) The CFPM400 is intended for use in the electromagnetic environment specified below. table The customer or user of the CFPM400 should ensure that it is used in such an table... -
Page 36: Contact Information
INSTRUCTION MANUAL Fluoroscopy Table CONTACT INFORMATION: Medical Equipment ® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Toll Free (USA only): 800-916-4612 Phone: 717-235-6807 Toll Free FAX (USA only): 877-562-4787 FAX: 717-235-6798 www.oakworksmed.com European Compliance for CE Mark Information Emergo Europe Molenstraat 15 The Hague, 2513 BH Netherlands...
