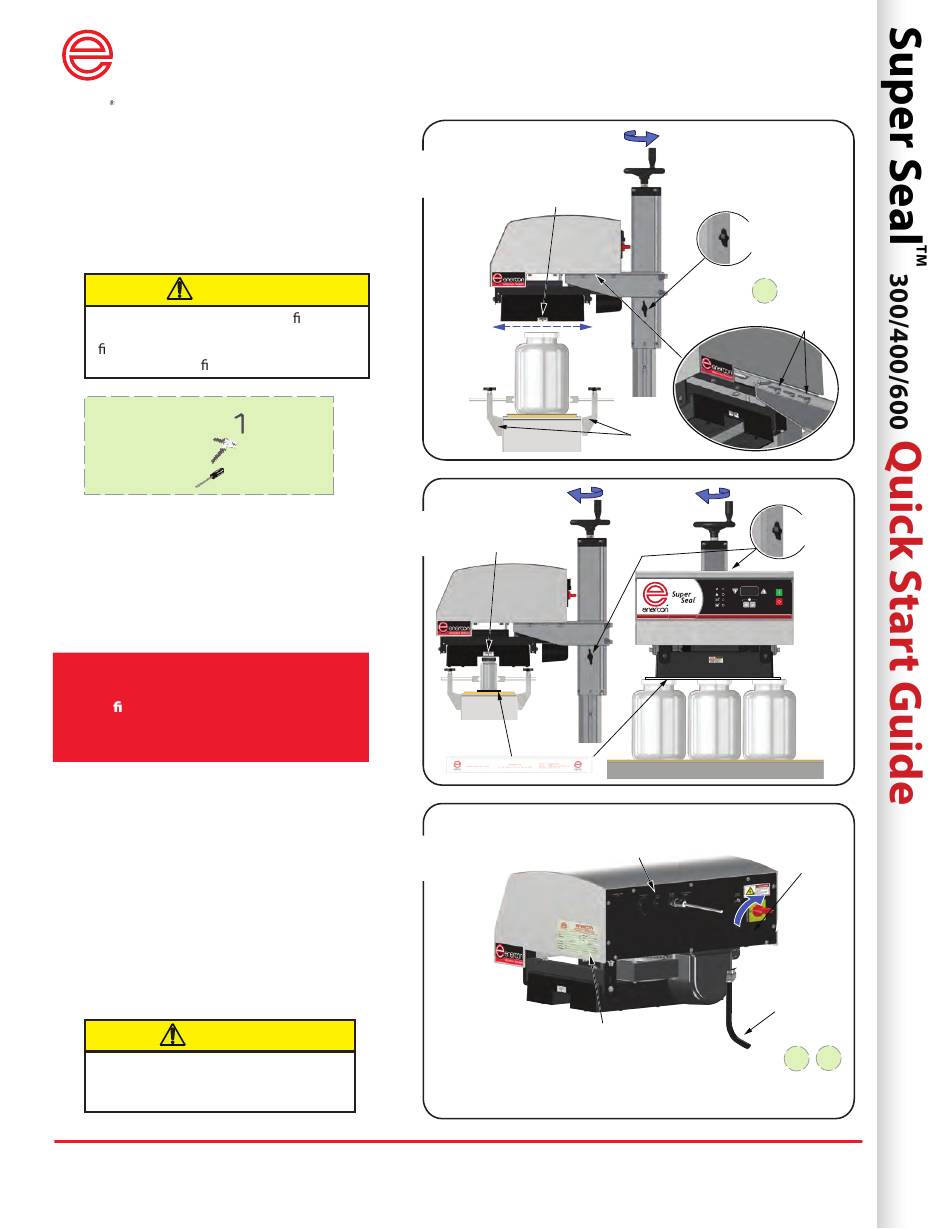

ENERCON Super Seal 300 Quick Start Manual

System
See included diagrams and manuals for more detailed information.
1
Align sealing head and container
a. Use guide rails to ensure a consistent
container path beneath the sealing head.
b. Ensure there is no metal within 6"
of sealing head.
c. Ensure the Sealer's height allows
containers to pass beneath the sealing head.
d. Center the sealing head over the container.
CAUTION!
The sealing head's magnetic eld will
quickly heat any metal that enters the
eld! Keep all metal beneath the sealing
head out of the eld!
Required Tools:
i. 6mm Allen Wrench
ii. Wire Strippers
iii. Screwdriver
2
Set the air gap over container
a. The recommended gap is 1/8" (3mm).
b. Place containers and the gapping tool
beneath the sealing head.
c. Lower the sealing head and ensure the
gap is even along it's full length.
Installation should be performed by
quali ed professionals and include a
full risk assessment of the entire line.
3
Connecting and applying input voltage
a. All systems require an input voltage range
of either 200 - 240 VAC 1Ø.
Refer to your system's rating plate.
b. If included, plug the stack light into its
connector.
c. Rotate the disconnect switch to the ON
position.
d. The front panel will display 50% factory
set point.
e. Proceed to the Basic Operation Quick
Start Guide.
CAUTION!
Observe all safety precautions when
connecting the system to its input
voltage!
Enercon Industries Corp. Menomonee Falls, WI USA
Tel: +1-262-255-6070
www.enerconind.com/sealing/support
Setup & Connections
1
Step 1
Step 3
Step 3
2
3
Raise
Center Line
Label
Guide
Lower
Tunnel Sealing
Head
Gap
Gauge
Stack Light
Cable Connection
Rating
Plate
Enercon Industries, Ltd. Aylesbury, Bucks UK
Locking
Knob
i.
Mounting
Bolts
Rails
Lower
Locking
Knob
Flat Sealing
Head
Disconnect
Switch
Power
Cord
ii. iii.
Tel: +44 1296 330542
E-mail: info@enerconind.co.uk
