Summary of Contents for BOERPLAY BBPE110.5AP

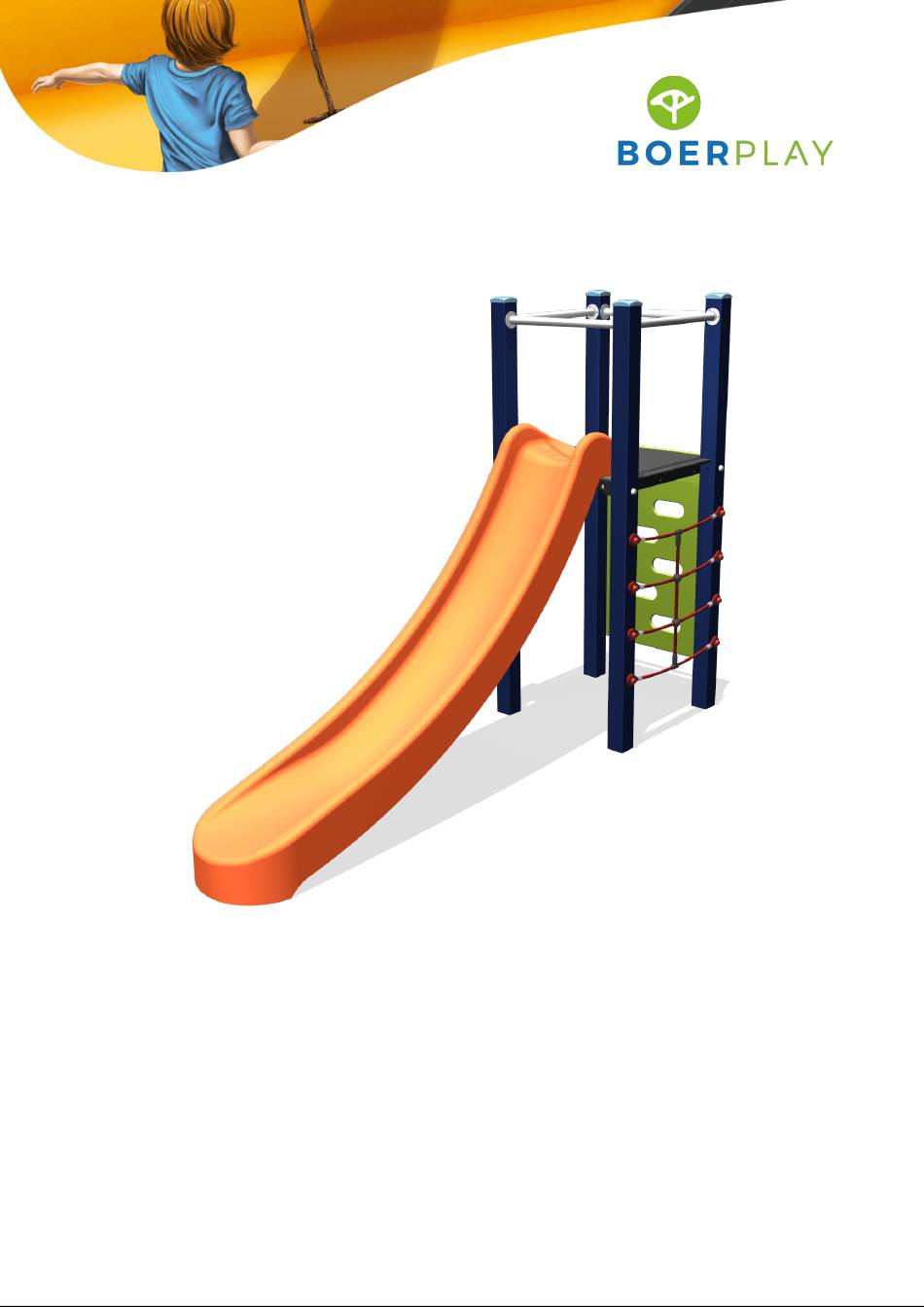

  • Page 1 Multi-play equipment BBPE110.5AP...
  • Page 2 0,90 m 0,85 m 1,45 m * 0,45 m 0,00 m 2,32 m 1,68 m 1,45 m 0,00 m * Vloerhoogte (Floor height) Benaming TOE BBP 110 5AP Klimklauter, 1 toren Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 18-6-2014...
  • Page 3 3,93 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 110 5AP Klimklauter, 1 toren Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 18-6-2014 Date SPEELTOESTELLEN...
  • Page 4 1,61 m 2,21 m 0,80 m 1,57 m 0,27 m Grondmarkering Ground level marker 0,50 m Benaming TOE BBP 110 5AP Klimklauter, 1 toren Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Bodemplan Groundplan 18-6-2014 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 2,32 m 2,24 m 1,45 m 0,00 m Voor ( Front ) 2,32 m 2,24 m 1,45 m 1,19 m 0,94 m 0,69 m 0,44 m 0,00 m Rechts ( Right ) Benaming TOE BBP 110 5AP Klimklauter, 1 toren Title Tekening Opmerking...
  • Page 7 2,32 m 2,24 m 1,45 m 1,19 m 0,94 m 0,69 m 0,44 m 0,00 m Achter ( Back ) 2,32 m 2,24 m 1,45 m 0,00 m Links ( Left ) Benaming TOE BBP 110 5AP Klimklauter, 1 toren Title Tekening Opmerking...
  • Page 8 LOGBOOK Type indication Basic Play Article number BBPE110.5AP Product Name Multi-play equipment Maximum fall height 1,5 m Construction year 2023 Certificate 142748 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 10: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Staander 2,8m 1,45m vloer Voetplaat 100 x 100 Benaming MOD BBP 002 A Staander 1,45m Title Tekening Opmerking Boer Basics Drawing Comment BOER Datum Samenstelling module Assembly module 8-10-2014 Date SPEELTOESTELLEN...
  • Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking SLUITRING M10 VZ Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 190 - VZ 8.8 Beschermdop M10-M12 Donut wit Dop wit Beschermdop M10-M12 VLOER BOER BASIC PLAY Schroef Assy 6 x 120 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 Vloerplaat...
  • Page 15 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 31-8-2022 Revision: MOD BBP 007 x...
  • Page 16 20 mm KST.BBP.003.xxx xxx: 203 Orange Oranje / Orange / Naranja / Orange xxx: 502 Blue Blauw / Blau / Azul / Bleu A = A A mm A mm 0 mm © Copyright BOERplay 31-8-2022 Revision: MOD BBP 007 x...
  • Page 17 Ø11 mm (2x) Ø3 x 40mm A (2x) Detail A (2x) BSR.023.010.050 Detail B (1x) BSR.030.010.002 BSR.002.005.050 BSR.035.010.030 BSR.002.005.050 BSR.011.010.020 KST.ROR.006.000 BSR.023.010.050 BSR.011.010.020 BSR.030.010.002 BSR.035.010.030 KST.ROR.006.000 © Copyright BOERplay 31-8-2022 Revision: MOD BBP 007 x...
  • Page 18 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 19 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 20 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 ROZETRING M5 ZWART Klimwand 1,5m Basic Play Benaming MOD BBP 012 G Klimwand 1,45m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Samenstelling module Assembly module 31-3-2014 Date SPEELTOESTELLEN...
  • Page 21 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 22 Poteaux en plastique ou en bois OME.KAP.100.xxx xxx: 204 Orange RAL2004 Oranje / Orange / Naranja / Orange xxx: 524 Light blue RAL5024 Licht blauw, Hellblau, Azul claro, Bleu clair BSR.002.005.050 OME.KAP.100.xxx MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 23 Opening altijd >230 mm Opening always > 230 mm Altijd > 0,40 m vanaf maaiveld Always > 0,40 m from grondlevel Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Borgmoer M10 - RVS A2-70 Zeskantbout M10 x 140 - RVS A2-70 SLUITRING Beschermdop M10-M12 Donut Rood...
