H ~MED
i
cs·

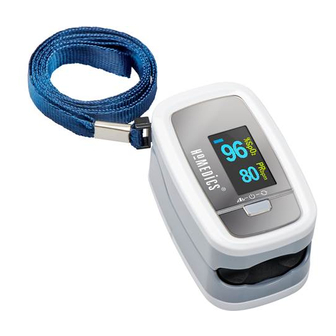

PULSE OXIMETER
INSTRUCTIONS FOR USE
INTRODUCTION
Model CMS50O1A
PIN PX-131COA
In
case
of modifications and software
upgrades,
the information
contained in this document is subject to change without
notice.
The
Manual
describes,
in accordance with the Pulse Oximeter's features
and
requirements,
main structure, functions, specifications, correct
methods for transportation, installation, usage, operation, repair,
maintenance and storage, etc., as well as the safety procedures to
protect both the user and equipment. Refer to the respective sections
for details.
Please read the Manual very carefully before using this equipment.
These instructions describe the operating procedures that must be
followed. Failure to follow these instructions can cause measuring
abnormality, equipment damage and personal injury.
The manufacturer is NOT responsible for the safety, reliability and
per-
formance issues and any monitoring abnormality, personal injury and
equipment damage due to user's negligence of the operation instruc-
tions. The manufacturer's warranty service does not cover such
faults.
Due to product improvements, the specific products you received may
have slight differences to the description in this User Manual.
This product can be used repeatedly, with a life expectancy of 3 years.
WARNING
All uncomfortable or painful feeling may appear if using the device
ceaselessly, especially for the microcirculation barrier users. It is rec-
ommended that the sensor should not be applied to the same finger
for over 2 hours.
• Use the pulse oximeter only
for
its intended
use.
DO NOT use on a
finger that has an edema and tender tissue.
• The light (the infrared is invisible) emitted from the device is
harmful to the eyes. DO NOT stare into the
light.
• User cannot use enamel or other makeup on the finger when
using.
• User's fingernail cannot be too long.
• Please read the relative content about the clinical restrictions
and cautions.
• This device is not intended for treatment or diagnosis.
IMPORTANT PRODUCT NOTICES AND SAFElY INSTRUCTIONS
• Check the main unit and all accessories periodically to make
sure that there is no visible damage that may affect user's safety and
monitoring performance about cables and transducers. It is
recommended that the device should be inspected once a week at
least. When there is obvious damage, stop using the
oximeter.
• DO NOT disassemble this device. If in need of repair, refer to the
warranty section of this manual.
• The oximeter cannot be used together with devices not specified
in the User's Manual.
• Use only the accessories recommended in this manual, or induded
in the box.
• Under normal usage conditions, this device does not require
calibration or technical maintenance other than infrequent
replacement of the battery.
WARNINGS:
Explosive hazard - DO NOT use the oximeter in an environment with
inflammable gas such as some ignitable anesthetic agents.
A person with allergies to rubber cannot use this device.
Follow local ordinances and recycling instructions regarding
disposal or recycling of the device and device
components,
including batteries.
When using your pulse oximeter, basic precautions should always
be
followed.
Please read and follow all instructions and warnings
before using this product. Save these instructions for future
reference.
Please don't measure this device with function test paper for
the device's related
information.
DO NOT service or maintain this device while in
use.
The user is an intended operator.
The probe of the device is the applied
part.
ATTENTION:
• Keep the oximeter away from
dust,
vibration, corrosive
substances,
explosive
materials,
high temperature and
moisture.
• If the oximeter gets
wet,
please stop operating
it.
• When it is carried from cold environment to warm or humid
environment, please do no use it immediately.
• DO NOT operate keys on front panel with sharp materials.
• High temperature or high pressure steam disinfection of the
oximeter is not
permitted.
• Refer to the "Care and
Maintenance"
section for instructions
on cleaning and
disinfection.
• DO NOT immerse the unit in water as this will result in damage to
the unit.
• When cleaning the device with
water,
the temperature should be
lower than 140°F
(60°C).
• As
to the fingers which are too thin or too
cold,
it would probably
affect the normal measure of the
users'
Sp0
2
and pulse
rate,
please
clip the thick finger such as thumb and middle finger deeply enough
into the
probe.
• DO NOT use the device on infant or neonatal
users.
• The product is suitable for adults weighing between
88
lbs to
242.5 lbs (40 kg to 110
kg).
• The device may not work for all
users.
If you are unable to achieve
stable readings, discontinue
use.
• The update period of data is less than 5
seconds,
which will
change according to the user's pulse
rate.
• The waveform is
normalized.
Please read the measured value
when the waveform on screen is equably and
steady1Joing,
here
this measured value is optimal
value,
and the waveform at the
moment is the standard one.
• If some abnormal conditions appear on the screen while
using,
pull out the finger and reinsert to restore normal use.
• The lanyard attached to the product is made from non-allergic
material, if particular groups are sensitive to the lanyard, stop
using
it.
DO NOT wear around the neck to avoid risk of injury
to the
neck.
• The instrument does not have a low-voltage alarm function, it only
shows the
low-voltage,
please change the battery when the battery
energy is used up.
• The instrument does not have an alarm function.
Do
not use the
device in situations where alarms are
required.
• Batteries must be removed if the device is going to be stored for
more than one month, or else the batteries may leak.
• A flexible circuit connects the two parts of the
device.
DO NOT twist
or pull on the
connection.
INDICATION FOR USE:
For use with sporting and aviation
activities,
and to monitor heart
rate during exercise.
OVERVIEW
The pulse oxygen saturation is the percentage of Hb0
2
in the total Hb
in the
blood,
so-called the
0
2
concentration in the
blood.
It is an im-
portant bio-parameter for the
respiration.
For the purpose of measuring
the Sp0
2
more easily and
accurately,
our company developed the
Pulse
Oximeter.
At the same
time,
the device can measure the pulse
rate
simultaneously.
The Pulse Oximeter features in small volume, low power
consumption,
convenient operation and being
portable.
It is only necessary for user
to put one of his fingers into a fingertip photoelectric sensor for
mea-
surement,
and the display screen will directly show measured value of
Hemoglobin
Saturation.
FEATURES:
• Operation of the product is simple and convenient.
• The product is small in volume, light in weight and convenient
to
carry.
• Power consumption
of
the product is low and the 2 originally
equipped AAA batteries can be operated continuously for 20
hours.
• The product will enter standby mode when no signal is in the
product within 5
seconds.
• Display direction changes automatically for easy
viewing.
