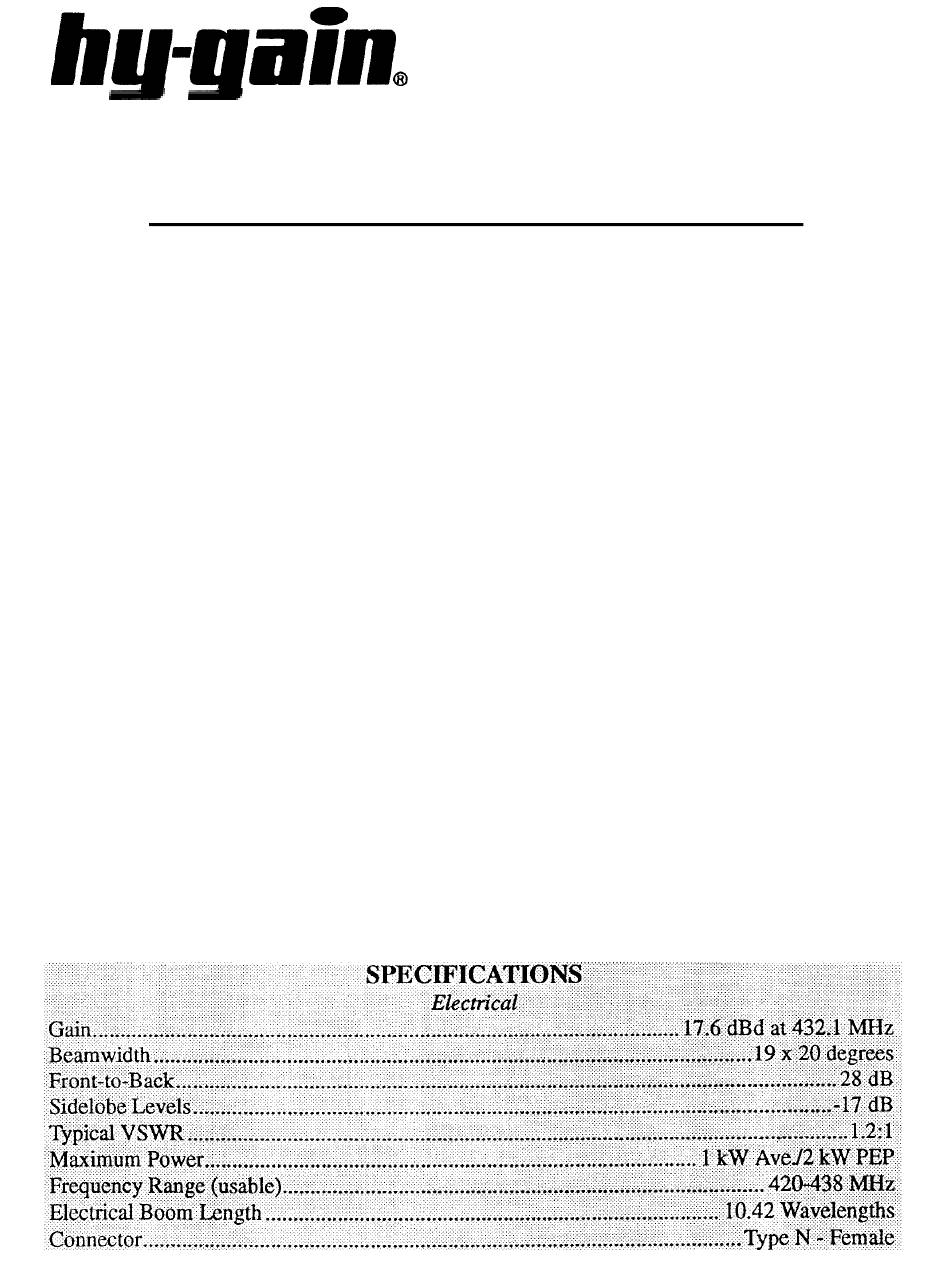

INSTRUCTION MANUAL
GENERAL DESCRIPTION
The Hy-Gain Model 70-31 DX is a high-perfor-
mance yagi antenna for SSB/CW DX'ing in the
Amateur 70 cm band.
It features 31 elements on a 24 foot (10.4
wavelength) boom, with the ultimate in high gain,
low sidelobes, and high front-to-back ratio. It also
features an encapsulated feedpoint and a
weatherproof type N connector for use in all
types of climates. The usable frequency range of
420438 MHz makes the 70-31 DX suitable for
432 MHz EME and terrestrial DX, 435-437 MHz
satellite communications, and 420-430 MHz
ATV The 70-31 DX antennas may be easily
stacked for increased performance.
ELECTRICAL DESIGN
The 70-31 DX design is based upon the DL6WU
log-tapered design information, with enhance-
ments to the gain, sidelobe levels, and front-to-
back.
Model UB-7031DX
70 cm / 31 Element Yagi
for SSB/CW DXing
Performance was verified by testing on Hy-Gain's
antenna range and by computer modelling with
the NEC-3 and YO-4 codes. The antenna's perfor-
mance characteristics were optimized for the 432-
436 MHz frequency range. This improves the
antenna's performance in rainy, icing and snowy
conditions at 432 MHz.
MECHANICAL DESIGN
The 70-31 DX mechanical design features a 6-
section boom which can be easily disassembled
and reassembled for portable operations. An
adjustable 7/8" and 1" O.D. tubular boom support
is included to reduce boom droop when using
heavy, low loss coaxial cable or under severe
icing conditions. The boom-to-mast bracket and
boom support can be adjusted for best balance in
an EME array. The boom support may be
installed above or below the boom.
Most hardware is stainless-steel including the ele-
ment retaining rings (pushnuts). All insulators are
UV protected. The coaxial balun assembly is
made from high-quality RG-303/u and RG-142
B/u PTFE dielectric and FEP jacketed coaxial
cable.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UB-7031DX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hy-Gain UB-7031DX

  • Page 1 GENERAL DESCRIPTION antenna range and by computer modelling with the NEC-3 and YO-4 codes. The antenna's perfor- The Hy-Gain Model 70-31 DX is a high-perfor- mance characteristics were optimized for the 432- mance yagi antenna for SSB/CW DX'ing in the 436 MHz frequency range.
  • Page 2: Preparation For Assembly

    PREPARATION FOR ASSEMBLY FOR OUR OVERSEAS CUSTOMERS: If you use the Metric System, see the American-to- Metric Conversion table in the rear of this manual. Most illustrations in this manual will provide both American and Metric Dimensions. Choose a moderate-sized clear area to assemble the 70-31 DX Beam.
  • Page 3 ASSEMBLY OF THE BOOM-TO- MAST BRACKET AND BOOM If the elements are to be installed in the boom sections indoors, label each boom end with masking tape at this time, and assemble the Select the boom-to-bracket parts, boom sec- boom sections together when the antenna is tions and mast bracket parts as shown in ready to be attached to the mast.
  • Page 4 Figure 1 Assembly of Boom and Boom-to-Mast Bracket...
  • Page 5 Carefully slip the 3/16. inch pushnuts (Item ASSEMBLY OF DRIVEN ELEMENT 46) over each end of the driven element, and Select the 70-31 DX Driven Element, 3/16" x push them along the element until they are 13 1/2". marked with a single black color snug against each element insulator.
  • Page 6 Figure 3 Driven Element T-Rod Assembly Select one each of elements - D7, D8, D9, ASSEMBLY OF OTHER ELEMENTS D10 and 1311. Install these elements on the Select the reflector element 3/16" x 13 7/8", #2 boom section in the holes shown in Figure marked with two black bands near one end.
  • Page 7 Item Total Length Exposed Length Element Part No. Inches Inches Color Bands 160075 137/8 67/16 2- Black/Black 160076 131/2 61/4 1- Black 160077 125/8 513/16 1- Brown 160078 123/8 511/16 1- Red 160079 121/8 59/16 1- Orange 160080 51/2 1- Yellow 160081 117/8 57/16...
  • Page 8 Attach the balun assembly with connector ATTACHMENT OF BALUN bracket to the boom using 10-24 hardware as ASSEMBLY shown in Figure 4. Ensure that the RG-303 Select the Balun Assembly (Item 30), the balun is on the boom side of the RG-142 B/u connector bracket (Item 33), and the coax.
  • Page 10: Installation

    ATTACHMENT OF INSTALLATION BOOM SUPPORTS the balun assembly. Tighten securely and tape Select the boom support tubes (Items 55 and 56), coax to the boom every 2 feet for strain relief. Do Support Angles (Items 58 and 61), U-brackets Not allow. the feedline to touch any director ele- (Item 35), Tubing clamps (Item 57), and as- ment.
  • Page 11: Parts List

    S E R V I C E I N F O R M A T I O N All requests, inquiries or warranty claims, and to If you are unable to resolve technical problems, order replacement parts contact: you should contact the Hy-Gain Customer Hy-Gain Service Department in Starkville, Mississippi. 308 Industrial...
  • Page 12 PARTS LIST (Continued) Item No. Part No. Description Qty 385144-1 Bracket, boom-to-mast, 1 1/4" ............1 877966 Balun Assembly, 70-31 DX ...............1 877964 Parts Pack, 231 S, Insulators ..;.:..:.............1 450401 Caplug, l,, black................2 460337 Insulator, Element, black...............64 877965-1 Parts Pack, 231S, Hardware...............1 179663 Connector bracket ................1 179664...
