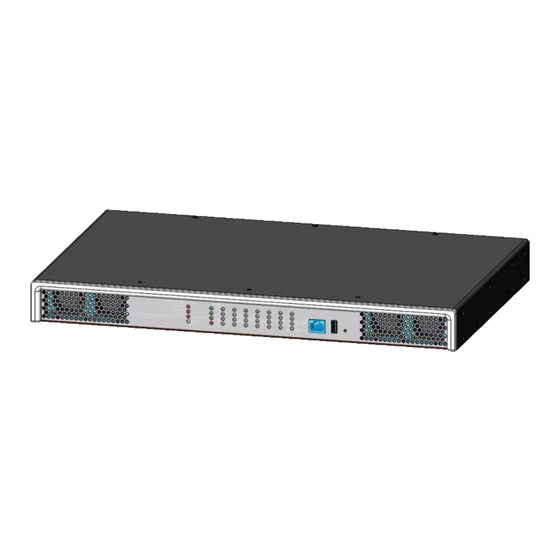

- Page 1 MediaPack 52 4 & 5 32 Hardware I nstallation Manual Hardware Installation Manual AudioCodes MediaPack™ 5xx Analog Voice Gateway Series MediaPack 524 (MP-524) MediaPack 532 (MP-532)
-
Page 2: Table Of Contents
Connecting LAN Interface .....................17 Connecting WAN Interfaces ....................18 Connecting FXS Analog Interfaces ..................19 5.4.1 Connecting FXS Interfaces using AudioCodes FXS Patch Panel ........... 21 5.4.2 Connecting FXS Interfaces using 50-Pin D-Sub to Open Leads Cable ........24 Connecting a USB Device ......................26 Connecting Serial Interface ....................27... -
Page 3: Notice
Please contact your local recycling authority for disposal of this product. Customer Support Customer technical support and services are provided by AudioCodes or by an authorized AudioCodes Service Partner. For more information on how to buy technical support for AudioCodes products contact... -
Page 4: Safety Precautions
MSBR and MediaPack 5xx Series Release Notes Ver. 7.2 Documentation Feedback AudioCodes continually strives to produce high quality documentation. If you have any comments (suggestions or errors) regarding this document, please fill out the Documentation Feedback form on our website at https://online.audiocodes.com/documentation-feedback. -
Page 5: Introduction
1. Introduction MP-524 & MP-532 Introduction This document provides a hardware description of the device and step-by-step procedures for mounting and cabling the device. The device provides the following interfaces: 2 x Gigabit Ethernet (10/100/1000Base-T) copper WAN port interfaces (RJ-45) ◼... -
Page 6: Unpacking The Device
2. Unpacking the Device MP-524 & MP-532 Unpacking the Device Follow the procedure below for unpacking the carton in which the device was shipped. To unpack the device: Open the carton and carefully remove packing materials. Remove the chassis from the carton. Check that there is no equipment damage. -
Page 7: Physical Description
3. Physical Description MP-524 & MP-532 Physical Description This section provides a physical description of the device. Physical Dimensions and Operating Environment The device's physical dimensions and operating environment are listed in the table below: Table 1: Physical Dimensions and Operating Environment Specification Value Dimensions (W x H x D) -
Page 8: Power Led Description
3. Physical Description MP-524 & MP-532 3.2.1 POWER LED Description The POWER LED on the front panel indicates the device's power status. Table 2: POWER LED Description LED Color LED State Description Green Power received by device. No power. 3.2.2 STATUS LED Description The STATUS LED on the front panel indicates the operating status of the device. -
Page 9: Fxs Leds Description
3. Physical Description MP-524 & MP-532 3.2.5 FXS LEDs Description The front panel provides LEDs for indicating the status of the FXS interfaces. Table 6: LED Description of FXS Ports LED Color LED State Description Green Phone is in off-hook state. Port malfunction. -
Page 10: Rear Panel Description
3. Physical Description MP-524 & MP-532 Rear Panel Description The device's rear panel is shown in the figure below and described in the subsequent table. Figure 2: Rear Panel (e.g., MP-532) Protective earthing (grounding) screw. 90-240V 1.5A 50-60Hz AC power inlet. 18-54V 7-3A DC power input. -
Page 11: Mounting The Device
4. Mounting the Device MP-524 & MP-532 Mounting the Device You can mount the device using one of the following methods: Desktop/shelf mounting ◼ 19-inch Rack mounting ◼ The device must be installed only in a restricted access location that is compliant with ETS 300 253 guidelines where equipotential bonding has been implemented. - Page 12 4. Mounting the Device MP-524 & MP-532 ◼ The minimum vertical rack space for mounting the device in a 19-inch rack must be 2Us (3.5 in. or 88.9 mm). At least two people are required to mount the device in the 19-inch rack. To mount device in 19-inch rack: Attach the left and right front-mounting brackets to the chassis, as shown below: Figure 3: Attaching Left and Right Front-Mounting Brackets...
- Page 13 4. Mounting the Device MP-524 & MP-532 Attach the rear-mounting flanges to the rear sides of the chassis, using the supplied screws. Figure 4-5: Attaching Rear-Mounting Flange to Chassis Rear-Side Mounting Holes With two people, lift the chassis into the rack from the front of the rack. Slide the two rear-mounting bracket flanges into the slide rails of the rear-mounting brackets that you previously attached to the rear posts.
- Page 14 4. Mounting the Device MP-524 & MP-532 Hold the chassis in position while the second person secures the rear-mounting flanges to the rear-mounting brackets. Insert the supplied screws from the inside of the rack, through the flange's grid and into the screw hole on the rear-mounting bracket. Finger-tighten the screws but make sure that the screws are NOT fully tightened and that the flange can freely move on the slide rails of the rear-mounting bracket.
-
Page 15: Cabling The Device
3 meters). ◼ As most of the installation is the responsibility of the customer, AudioCodes can assume responsibility for damage only if the customer can establish that the device does not comply with the standards specified above (and the device is within the hardware warranty period). - Page 16 5. Cabling the Device MP-524 & MP-532 To connect device to an earth ground: Prepare an adequate length (maximum 20 mm or 0.8 in.) of stranded grounding wire (16 AWG minimum size) for the ground connection, as shown in the following figure: Figure 8: Stripped Grounding Wire Using a Philips-head screwdriver, remove the ground screw located on the rear panel, as...
-
Page 17: Connecting Lan Interface
5. Cabling the Device MP-524 & MP-532 Connecting LAN Interface The device provides a single Gigabit Ethernet (100/1000Base-T) port for connecting to the IP network (e.g., LAN). Cabling specifications: ◼ Cable: Straight-through, Category (Cat) 5/5e/6 cable ◼ Connector: Standard RJ-45 ◼... -
Page 18: Connecting Wan Interfaces
5. Cabling the Device MP-524 & MP-532 Connecting WAN Interfaces The device provides two copper Gigabit Ethernet (GbE) port interfaces (10/100/1000Base-T). Currently, only Port #1 can be used (Gigabit Ethernet 0/0). Port #2 will be enabled in a future software release (which will provide WAN active-standby redundancy). Cable specification: ◼... -
Page 19: Connecting Fxs Analog Interfaces
AudioCodes orderable FXS Patch Panel (see Connecting FXS Interfaces using AudioCodes FXS Patch Panel on the next page) • AudioCodes orderable 50-Pin D-Sub connector cable (10 m) to open leads, which needs to be connected to a distribution panel (see Connecting FXS Interfaces using Centronics Cable on page 28) ◼... - Page 20 5. Cabling the Device MP-524 & MP-532 ◼ Connector Pinouts: Table 11: 50-Pin D-Sub Connector Pinouts 50-Pin D-Sub Connector for FXS Ports 1-24 50-Pin D-Sub Connector for FXS Ports 25-32 FXS Phone Channel (Ports) Connector Pins FXS Phone Channel Connector Pins (Ports) 1/26 1/26...
-
Page 21: Connecting Fxs Interfaces Using Audiocodes Fxs Patch Panel
Connecting FXS Interfaces using AudioCodes FXS Patch Panel You can purchase AudioCodes' 24-FXS ports patch panel to connect the FXS interfaces to your FXS equipment. The patch panel provides a 2-meter (78.7 in.) extension cable with a 50-Pin D-Sub male connector for connecting to the 50-Pin D-Sub connector on the device's rear panel. - Page 22 5. Cabling the Device MP-524 & MP-532 Connect the Patch Panel's 50-Pin D-Sub male connector to the device's 50-Pin D-Sub female connector, located on the rear panel. Depending on the connector, secure it to the device's connector using one of the following methods: •...
- Page 23 5. Cabling the Device MP-524 & MP-532 For outdoor FXS cabling installation, you MUST install additional power surge protection, as illustrated in the following figure. (For indoor FXS cabling installation, there is no need for primary lightning protection usage.) Figure 18: Connecting FXS Interfaces using FXS Patch Panel for Outdoor FXS Cabling - 23 -...
-
Page 24: Connecting Fxs Interfaces Using 50-Pin D-Sub To Open Leads Cable
Connecting FXS Interfaces using 50-Pin D-Sub to Open Leads Cable You can use a cable with a 50-Pin D-Sub connector on one end and open leads on the other end (separately ordered from AudioCodes), as shown in the following figure, to connect the FXS interfaces to FXS equipment. - Page 25 5. Cabling the Device MP-524 & MP-532 Figure 21: Connecting 50-Pin D-Sub Connector Terminate the wires on the other end of the cable to your patch panel or distribution frame. The wires are grouped in pairs with labels that indicate the FXS channels. Make sure that you connect the wires according to the correct channels as labelled on the wires.
-
Page 26: Connecting A Usb Device
5. Cabling the Device MP-524 & MP-532 Connecting a USB Device The device supports USB storage capabilities using an external USB drive (stick) connected to the device's USB 3.0 Type-A port. USB storage capabilities include the following: ◼ Saving network captures to USB ◼... -
Page 27: Connecting Serial Interface
Port Type: RJ-45 ◼ Cable: RJ-45 to DB-9 female cable adapter ◼ Figure 23: RJ-45 to DB-9 Female Cable Adapter This cable is a separate orderable item from AudioCodes. ◼ Connector Pinouts: Table 12: RJ-45 to DB-9 Serial Cable Connector Pinouts RJ-45... - Page 28 5. Cabling the Device MP-524 & MP-532 To connect serial interface: Connect the RJ-45 connector, at one end of the cable adapter to the device's serial port labeled CONSOLE, located on the front panel. Figure 24: Connecting to Serial Interface Connect the DB-9 connector at the other end of the cable to the COM RS-232 communication port on your computer.
-
Page 29: Connecting Power
Max. AC Input Current 1.5 A The device must be connected to a socket-outlet providing protective earthing ◼ connection. To avoid electric shock or fire, use only the AC power cord that is supplied by ◼ AudioCodes. - 29 -... -
Page 30: Connecting To Dc Power
5. Cabling the Device MP-524 & MP-532 To connect device to AC power: Connect the line socket of the AC power cord (supplied) to the device's AC power socket, located on the rear panel. Figure 5-25: Connecting to AC Power Connect the plug at the other end of the AC power cord to a standard electrical outlet. - Page 31 5. Cabling the Device MP-524 & MP-532 To connect device to DC power: Disconnect your DC wires from your DC power source. Using a wire-stripping tool, strip the ends of the two wires (6-AWG) to a length that is sufficient for inserting into the supplied terminal block. Make sure that you do not strip too much of the insulation so that wire is not exposed when it exits the terminal block plug after it has been secured to the terminal block.
- Page 32 5. Cabling the Device MP-524 & MP-532 Figure 27: Connecting Terminal Block to DC Inlet Connect the DC power leads to a 48-VDC power source. - 32 -...
- Page 33 Documentation feedback: https://online.audiocodes.com/documentation-feedback ©2024 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights, and AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
