Planning Information
Integrated Electric Grill Module
M O D E L I G 1 5 / S
Model IG15/S

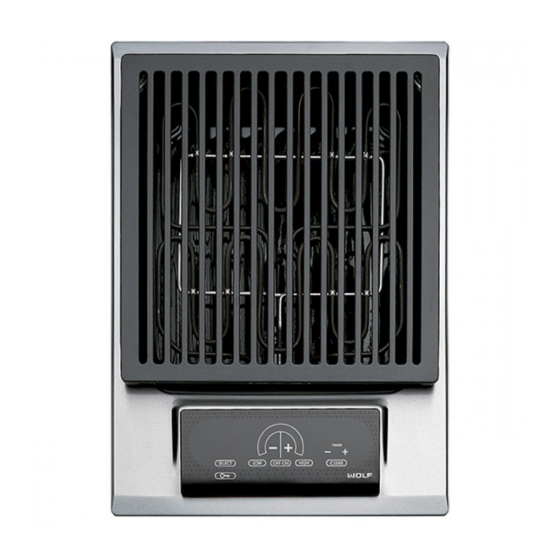

The Wolf Model IG15/S 15" (381)
integrated electric grill module is available
in the classic stainless steel finish.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
Low-profile, one-piece
grilling grate
Removable
collection pan
Location of
rating plate
W
ho says you have to sacrifice the fun of grilling
when the weather changes and you cannot take advan-
tage of the outdoors? With this grill module you can
easily handle steaks and all sorts of food without the
hassle of lava rocks or briquettes.
There are two 1400-watt heating elements—front and
back—on this 15" (381) unit that enables you to cook
on one side of the module while keeping other items at
serving temperature.
For ease of cleaning, there are porcelain plates below
the heating elements that accumulate any unwanted
grease and drain it to the removable porcelain collection
pan.
With Wolf's integrated modules, you have the ultimate
in customization. You can create your own design by
mixing and matching the various components within
this system.
Two 1400-watt
heating elements
Illuminated electronic
touch controls
Graduated control
lighting
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sub-Zero ICBIG15/S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wolf Sub-Zero ICBIG15/S

  • Page 1 With Wolf’s integrated modules, you have the ultimate in customization. You can create your own design by mixing and matching the various components within this system.
  • Page 2 Planning Information Integrated Electric Grill Module M O D E L I G 1 5 / S F E A T U R E S Integrated design allows for installation of multiple cooktops or modules Stainless steel top construction with classic...
  • Page 3 A C C E S S O R I E S Filler strip Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Showroom Locator section of our website, wolfappliance.com. Unit dimensions may vary by ±...
  • Page 4 Planning Information Integrated Electric Grill Module M O D E L I G 1 5 / S I N S T A L L A T I O N S P E C I F I C A T I O N S 13"...
  • Page 5 When multiple cooktops or modules are installed side by side, refer to the countertop cut-out dimensions on page 6. A Wolf Cooktop or Pro ventilation hood is recommended. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to countertop.
  • Page 6 And when you couple these modules with other cooktops within the Wolf inventory you and your client will truly understand freedom of choice. Some Wolf integrated modules can be installed together or with a 30"...
