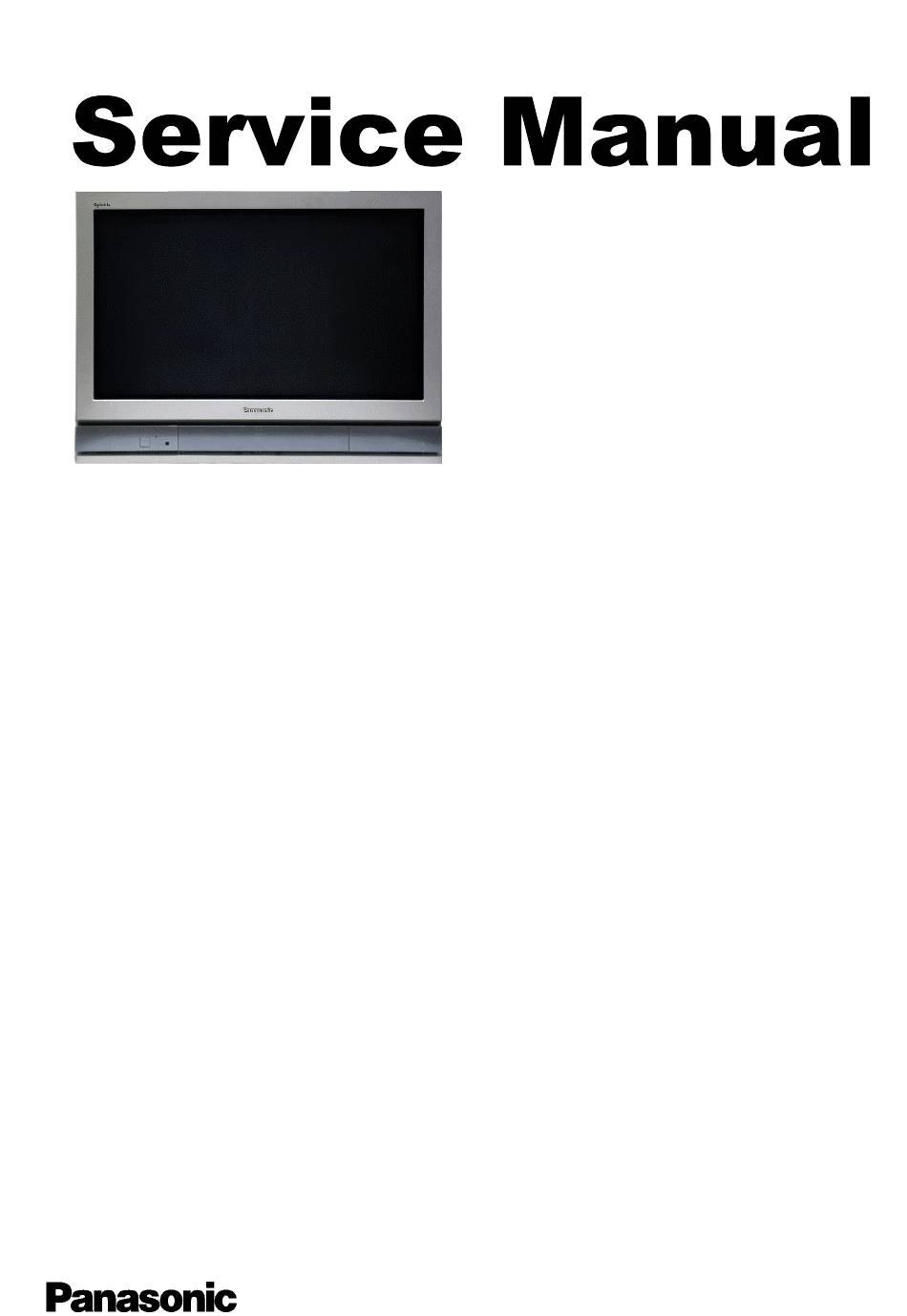

Panasonic TX-28PG45 Service Manual

SPECIFICATIONS
Power Source:
Power Consumption:
Stand-by Power
Consumption:
Aerial Impedance:
Receiving System:
Receiving Channels:
Intermediate Frequency:
Video/Audio
Video
Audio
Colour
Video/Audio Terminals:
AUDIO MONITOR OUT
AV1 IN
AV1 OUT
AV2 IN
AV2 OUT
220-240V a.c., 50Hz
135W
2.8W
75Ω unbalanced, Coaxial Type
PAL-I , PAL-525/60 UHF
M.NTSC
NTSC (AV only)
UHF E21-E68
39.5MHz
33.5MHz
32.95MHz (NICAM)
35.07MHz (PAL)
Audio (RCAx2) 500mV rms 1kΩ
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
S-Video IN Y: 1V p-p 75Ω
(21-pin) C:0,3V p-p 75Ω
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
Selectable output (21 pin)

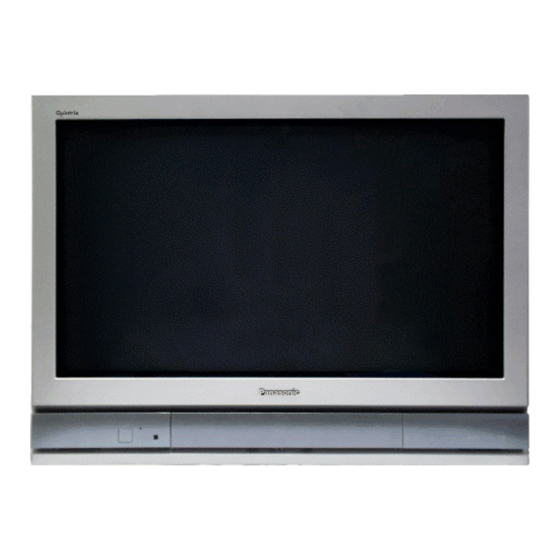

Colour Television
TX-28PG45
EURO-7 Chassis
AV3 IN S-Video IN
(4-pin)
Audio (RCAx2)
Video (RCAx1)
AV4 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
RGB (21 pin)
AV4 OUT Video (21 pin)
Audio (21 pin)
30.5kV ± 1kV
High Voltage:
Picture Tube: W66EKT10X71 66cm
Audio Output: 2 x 20W (Music Power)
8Ω Impedance
Headphones: 8Ω Impedance
3.5mm
Accessories
supplied : Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 495mm
Width: 728mm
Depth: 485mm
Net weight: 45kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO-7 Technical guide.
ORDER No. SM-01020
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
