Panasonic TX-32PS10D Service Manual

Service Manual
SPECIFICATIONS
(Information in brackets [ ] refers to models 28")
Power Source: 220-240V a.c., 50Hz
Power Consumption: 114W [105W]
Stand-by Power
Consumption: 0,6W
Aerial Impedance: 75Ω unbalanced, Coaxial Type
Receiving System: PAL-I, B/G, D/K, PAL-525/60
SECAM B/G, D/K, L/L'
M.NTSC (AV only)
NTSC (AV only)
Receiving Channels:
VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video/Audio
Video 38,9MHz, 33,9MHz
Sound 33,4MHz (B/G), 33,16MHz (A2)
33,05MHz (NICAM B/G,D/K,L)
32,4MHz (D/K),32,66MHz (CZ STEREO)
40,4MHz (L'), 39,75MHz (L'NICAM)
Colour 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L')
Terminals:
AUDIO MONITOR OUT Audio (RCAx2) 500mV rms 1kΩ
AV1 IN Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 OUT Video (21 pin)
Audio (21 pin)
All manuals and user guides at all-guides.com
1V p-p 75Ω
500mV rms 10kΩ
0,7V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ

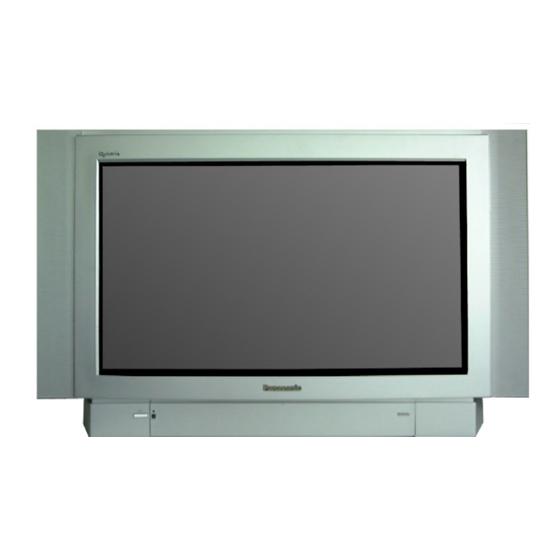

Colour Television
TX-32PS10D, TX-32PS10D/B,
TX-32PS10F, TX-32PS10P,
TX-28PS10D, TX-28PS10F,
EURO- 9L Chassis
AV2 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
AV2 OUT Video (21 pin)
Audio (21 pin)
AV3 IN S-Video IN
(4-pin)
Audio (RCAx2)
Video (RCAx1)
AV4 IN Video (21 pin)
Audio (21 pin)
RGB (21 pin)
S-Video IN
(21-pin)
AV4 OUT Video (21 pin)
Audio (21 pin)
High Voltage: 32kV ± 1kV [30,5kV ± 1kV]
Picture Tube: W76ELE50X71
[W66EKT50X71
Audio Output: 2x10W RMS, 2x20W MPO,
8Ω impedance
Headphones: 8Ω Impedance
Accessories
supplied : Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 567mm
Width: 902mm
Depth: 551mm
Net weight: 55,5kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
ORDER No. 03-SM-007
TX-28PS10P
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
1V p-p 75Ω
500mV rms 10kΩ
0,7V p-p 75Ω
Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
76cm
66cm]
[510mm]
[805mm]
[533mm]
[43,3kg]
