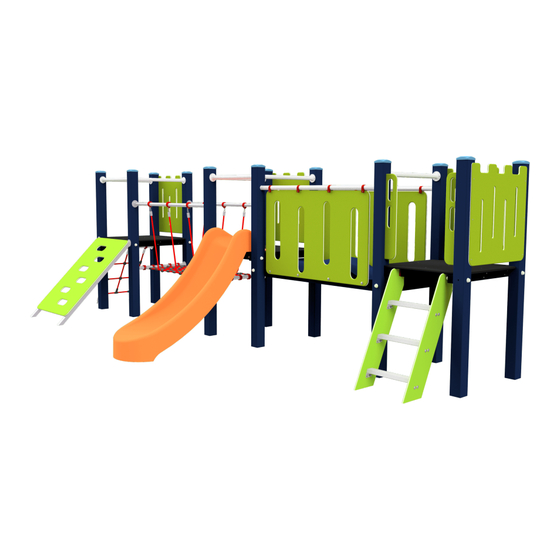

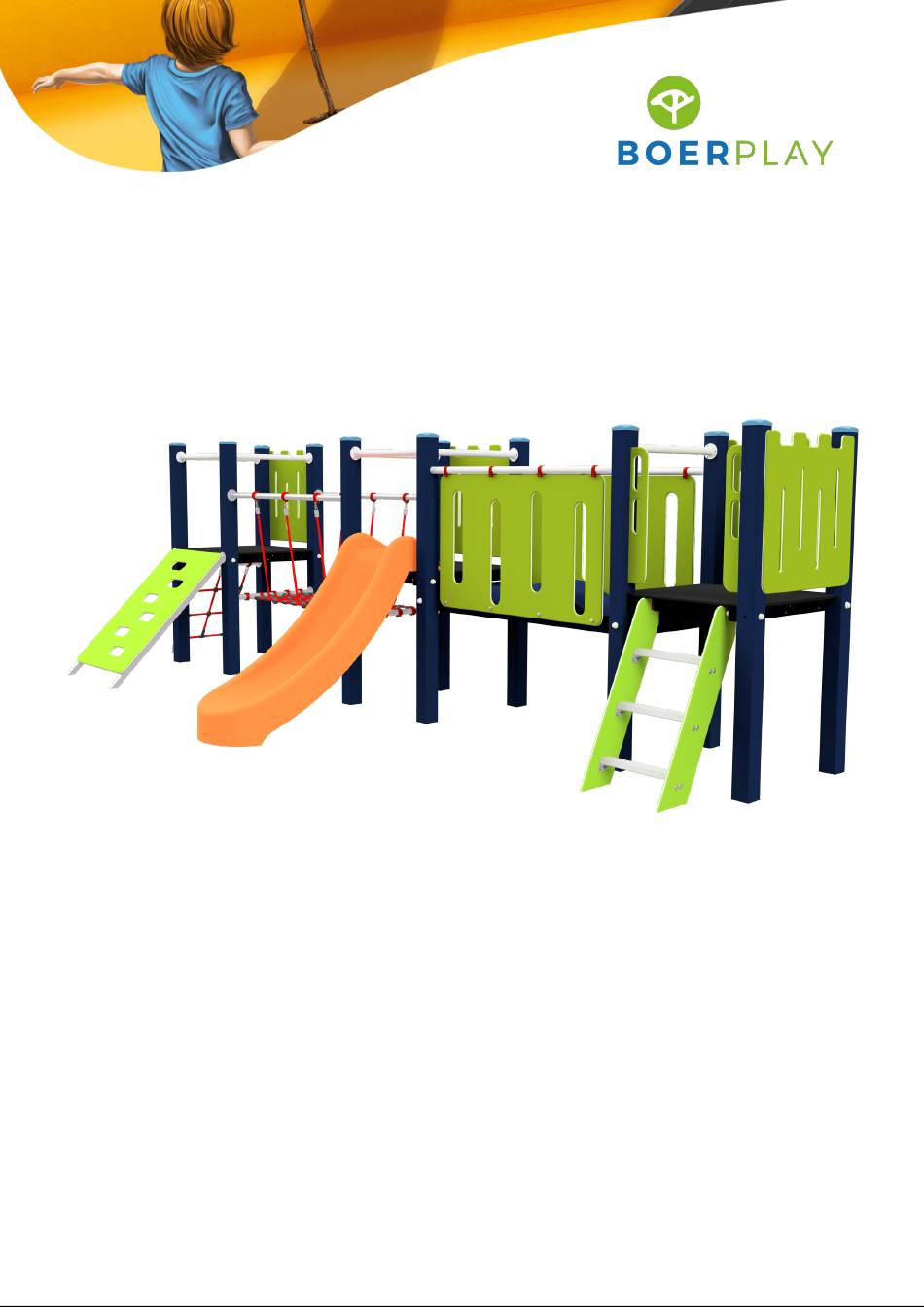

  • Page 1 Multi-play equipment BBPE360.9AP...
  • Page 2 * Vloerhoogte (Floor height) 2,19 m 2,19 m 2,14 m 0,95 m * 0,95 m * 1,74 m 0,95 m * 1,34 m 0,86 m 0,35 m 0,00 m 0,00 m 1,82 m 1,82 m 0,96 m 0,95 m 0,00 m 0,00 m Benaming TOE BBP 360 9AP...
  • Page 3 0,50 m 1,05 m 4,76 m 5,26 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 360 9AP Klimklauter 3 torens Title Tekening Opmerking Basic Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 30-8-2018 Date...
  • Page 4 1,93 m 0,80 m 1,59 m 0,80 m 1,59 m 0,80 m 1,57 m 0,10 m 0,41 m 0,40 m 0,75 m 0,50 m 0,55 m 0,75 m Grondmarkering Ground level marker 0,51 m 0,50 m Benaming TOE BBP 360 9AP Klimklauter 3 torens Title Tekening...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 1,82 m 1,80 m 1,70 m 1,74 m 1,63 m 1,43 m 0,95 m 0,95 m 0,90 m 0,78 m 0,68 m 0,60 m 0,41 m 0,15 m 0,00 m 0,00 m Voor (Front) 1,82 m 1,77 m 1,18 m 0,95 m 0,78 m 0,64 m...
  • Page 7 1,82 m 1,82 m 1,77 m 1,77 m 1,63 m 1,43 m 0,90 m 0,90 m 0,78 m 0,00 m 0,00 m Achter (Back) 1,82 m 1,82 m 1,77 m 1,74 m 0,90 m 0,96 m 0,84 m 0,84 m 0,64 m 0,64 m 0,00 m...
  • Page 8 LOGBOOK Type indication Basic Play Article number BBPE360.9AP Product Name Multi-play equipment Maximum fall height 1,0 m Construction year 2023 Certificate 140843 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 10: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Staander 2,3m 0,95m vloer Voetplaat 100 x 100 Benaming MOD BBP 001 A Staander 0,95m Title Tekening Opmerking Boer Basics Drawing Comment BOER Datum Samenstelling module Assembly module 8-10-2014 Date SPEELTOESTELLEN...
  • Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking SLUITRING M10 VZ Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 190 - VZ 8.8 Beschermdop M10-M12 Donut wit Dop wit Beschermdop M10-M12 VLOER BOER BASIC PLAY Schroef Assy 6 x 120 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 Vloerplaat...
  • Page 15 Type Progr. Bew. Rev. Benaming Volgnr Opmerking SCHROEF 5 x 50 Let op: toestel bij voorkeur niet met DOPMOER BORG RVS M10 de glijbaan op het zuiden plaatsen. Bolkopbout ISO 7380 M10 x 50 - RVS A2-70 SLUITRING Attention: it is advisable not to oriënt Carrosserie ring M10 - RVS A2-70 playground equipment with the slide...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 17 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 18 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 30 - RVS A2-70 Kasteelwand Streep Basic Play Benaming MOD BBP 017 A Kasteelwand Spleten Title Tekening Opmerking Boer Basic play Drawing Comment Datum Samenstelling module Assembly module 23-2-2018 Date...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 20 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 21 SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.030.006.002 BSR.011.006.012 BSR.025.006.030 BSR.030.006.002 BSR.030.006.002 BSR.025.006.030 SME.BBP.077.xxx SNT.BBP.009.xxx MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 22 Detail C (2x) BSV.020.006.040 BSV.035.006.020 BSV.035.006.020 BSV.010.006.006 KST.APL.075 BSV.010.006.006 BSV.020.006.040 BSV.035.006.020 KST.APL.075 MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 23 ✔ 0,25 m 0,70 m MOD BBP 036 x © Copyright BOERplay 22-4-2022 Revision: D...
  • Page 24 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Blindklinknagel bolkop 4.8 X 30 - Huls ALU, trekpen staal Schroef Assy 5 x 50 - RVS A2-70 Borgdopmoer M10 - RVS A2-70 SLOTBOUT M10 x 90 M10 x 40 - RVS A2-70 Slotbout SLUITRING Hoekje rood...
  • Page 25 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 30 - RVS A2-70 Klinknagel bolkop 4,8 x 18 - RVS A2-70 Klimwand 1,5m Basic Play Steun oploop Basic Play Steun oploop rechts Basic Play Benaming MOD BBP 042 A Oploopwand schuin Title Tekening...
  • Page 26 5 12 8 2 13 12 8 13 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgmoer M6 - RVS A2-70 Borgmoer M10 - RVS A2-70 Borgdopmoer M10 - RVS A2-70 Klinknagel bolkop 4,8 x 18 - RVS A2-70 M10 x 120 - RVS A2-70 Zeskantbout Veiligheids Bout Pin-Torx - RVS A2-70...
  • Page 27 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 28 Poteaux en plastique ou en bois OME.KAP.100.xxx xxx: 204 Orange RAL2004 Oranje / Orange / Naranja / Orange xxx: 524 Light blue RAL5024 Licht blauw, Hellblau, Azul claro, Bleu clair BSR.002.005.050 OME.KAP.100.xxx MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 29 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 22-9-2022 Revision: A MOD BBP 052 X...
  • Page 30 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 © Copyright BOERplay 22-9-2022 Revision: A MOD BBP 052 X...
  • Page 31 SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.030.006.002 SNT.BBP.010.xxx BSR.030.006.002 SME.BBP.077.xxx BSR.025.006.030 BSR.025.006.030 BSR.030.006.002 BSR.011.006.012 © Copyright BOERplay 22-9-2022 Revision: A MOD BBP 052 X...
