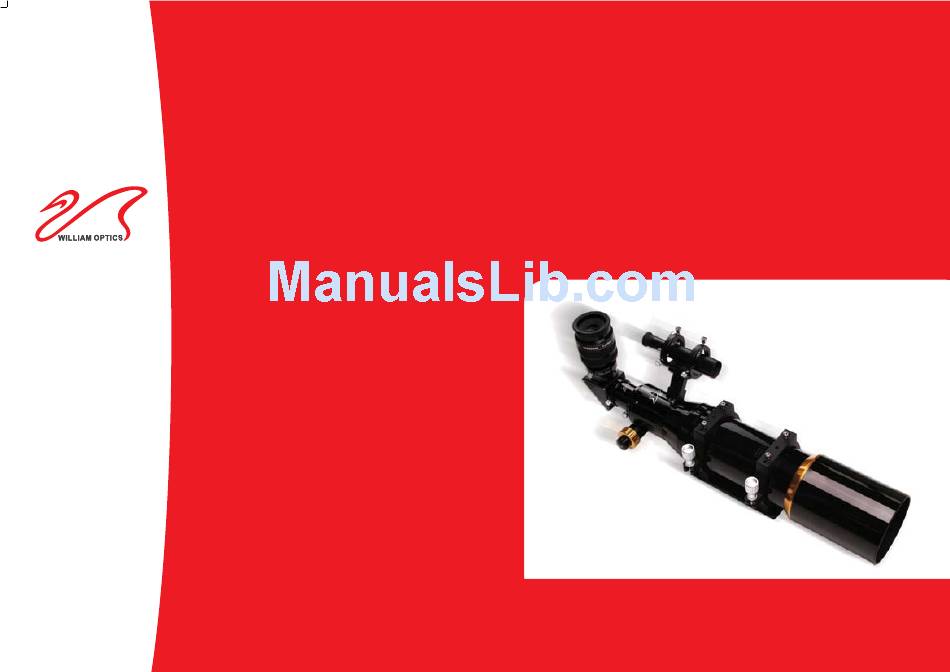

WILLIAM
OPTICS USA
Crafting the Earth's Finest Astronomical Instruments
CONTACT US
WILLIAM OPTICS USA
Toll Free: +1-866-918-6888 (For USA only)
Tel: +1-714-898-7989
Fax: +1-714-892-6067
web: www.william-optics.com
e-mail: wo@william-optics.com
w ww. wi lli a m- o p t ic s. c o m
William Optics Corp.

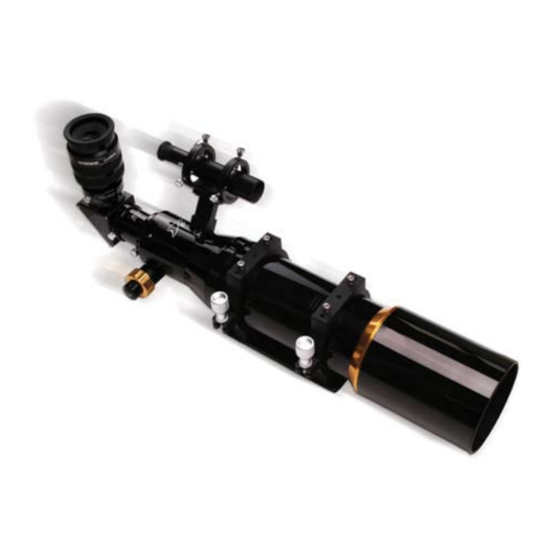

ZenithStar 110
I N S T R U C T I O N M A N U A L
Crafting the Earth's Finest Astronomical Instruments
Advertisement
Table of Contents
Related Manuals for William Optics ZenithStar ZenithStar 110
Summary of Contents for William Optics ZenithStar ZenithStar 110
- Page 1 WILLIAM OPTICS USA Crafting the Earth's Finest Astronomical Instruments CONTACT US WILLIAM OPTICS USA Toll Free: +1-866-918-6888 (For USA only) Tel: +1-714-898-7989 Fax: +1-714-892-6067 web: www.william-optics.com e-mail: wo@william-optics.com w ww. wi lli a m- o p t ic s. c o m William Optics Corp.
-
Page 2: Table Of Contents
Thank you for choosing a William Optics ZenithStar 110, William Optics flagship refractor. This simple step-by-step instruction manual is designed to provide ZenithStar 110 owners with a better understanding of how to operate their new telescope by providing precise, updated information. -
Page 3: Getting To Know Your Telescope
G e t t i n g t o k n o w y o u r t e l e s c o p e Dew shield cover Retractable dew shield 360 rotatable focuser lock 360 rotatable 2" nosepiece lock 2"... -
Page 4: Connection Instructions (Mounting Rings)
ZenithStar Accessories Chart Extender Above diagram is only for future connectivity purposes. Please contact our Authorized Dealers for accessories purchase. Connection Instructions ( Mounting Rings ) Step-1 Safely secure the 115mm mounting rings to the WO dovetail. Step-2 Fully extend the dewshield cover before placing the OTA in the rings. -
Page 5: Connection Instructions (Aligning Finderscope)
Solar eyepiece filters are not considered safe, and should not be used. With proper front mounted Solar filters, the telescope will not be harmed by viewing the Sun. Contact your Authorized WO Dealer for further information on the brands, sizes, and prices of proper solar filters. -
Page 6: Important Notice
Important Notice William Optics warranty does not cover damage to the focuser due to inappropriate tension setting. This focuser is designed to hold many pounds without problems. If nonetheless your setup requires additional tension adjustment, please use the tension allen screw under the focuser. -
Page 7: Optional Equipment
At least one or two high quality eyepieces (9mm to 40mm wide-field recommended) depending on the application. For astrophotography, a photo adapter plus a T-Mount connection are necessary. William Optics offers a TMB-designed reducer / field flattener optimized for the 110mm TMB Triplet APO lens. Also available from WO: WO 2"... - Page 8 S W A N E y e p i e c e s 1.25" Eyepieces Super Wide Angle (72 ). 9mm, 15mm, 20mm focal lengths. 5 elements in 4 groups, fully multi coated. Parfocal. U W A N E y e p i e c e s 2"...
- Page 9 Made in Switzerland by our partner company AOK, this mount allows you to be ready to go in 5 minutes even with a 4" telescope! P h o t o A d a p t e r sacrificing...
