Summary of Contents for William Optics FluoroStar 110

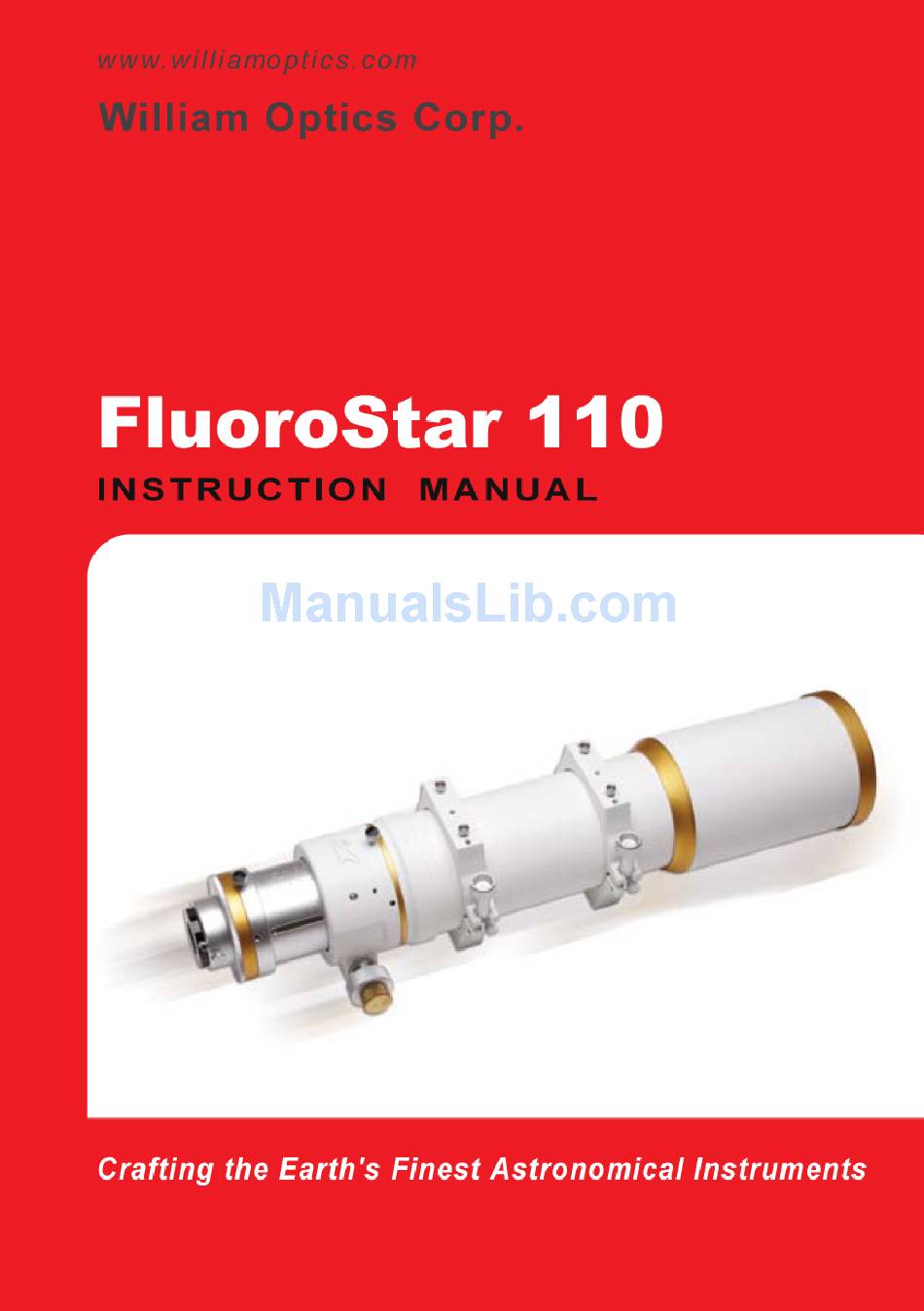

  • Page 2 Thank you for choosing a William Optics FLUOROSTAR 110, William Optics flagship refractor. This simple step-by-step instruction manual is designed to provide FLT-110 owners with a better understanding of how to operate their new telescope by providing precise, updated information.
  • Page 3: Table Of Contents

    CONTENTS Getting to know your telescope FluoroStar 110 Specifications FluoroStar 110 Acessories Chart Connection Instructions (Mounting Rings) Connection Instructions (2" Diagonal Mirror) Connection Instructions (Erecting Finderscope) Connection Instructions (Aligning Finderscope) Usage Important Notice Storage and Cleaning Caution for Safety Bundled Equipment...
  • Page 4: Getting To Know Your Telescope

    G e t t i n g t o k n o w y o u r t e l e s c o p e Dew shield cover Retractable dew shield Extend Main tube 360 rotatable focuser lock 360 rotatable Focuser knob 2"...
  • Page 6: Fluorostar 110 Acessories Chart

    FluoroStar Accessories Chart Above diagram is only for future connectivity purposes. Please contact our Authorized Dealers for accessories purchase.
  • Page 7: Connection Instructions (Mounting Rings)

    Connection Instructions ( Mounting Rings ) Step-1 Step-2 Step-3 Safely secure the 115mm mounting rings to the WO dovetail. Fully extend the dewshield cover before placing the OTA in the rings. Remember to insure that the mounting rings knobs are tight before operations.
  • Page 8: Connection Instructions (2" Diagonal Mirror)

    Connection Instructions ( 2" Diagonal Mirror ) Step-1 Remove 2" to 1.25" adapter. Loosen lock screw for release. Step-2 Tighten lock screw. Step-3 Tighten lock screw.
  • Page 9: Connection Instructions (Erecting Finderscope)

    Connection Instructions Step-1 Extract the black plastic screw and place the finder bracket on FluoriteStar 110 focuser and attach with lock screw. Connection point for finderscope bracket. Step-2 Insert finderscope into finder bracket. Step-3 Insert illuminator into finderscope. Step-4 Tighten the knob on finderscope.
  • Page 10: Connection Instructions (Aligning Finderscope)

    Connection Instructions Align the finderscope pointing at the same object as the telescope. Alignment Screws. View Field of Finderscope. (with WO Erecting Illuminated Finderscope) ( Aligning Finderscope ) Step-1 Find a distant object in the telescope with a low power eyepiece.
  • Page 11: Usage

    Usage The Fluorostar 110 is designed to work with both 1 1/4 inch and 2 inch diameter eyepieces in various focal lengths, for both daytime and nighttime viewing. Because the Fluorostar 110 is well suited to viewing nebulae, clusters, large galaxies and comets, we recommend the use of high quality wide angle eyepieces.
  • Page 12: Important Notice

    The above-mentioned indications are not necessary if you carefully protect your telescope. The multi-layer paint white finish of your Fluorostar 110 is easy to ruin. Please take care of the exterior body tube by wiping it down with a slightly damp soft cloth from time to time.
  • Page 13: Caution For Safety

    Authorized WO Dealer for service instructions. Do not disassemble or attempt to repair your telescope without a written authorization from William Optics Corp., as this violates the warranty terms under the limited product warranty, and negates any guarantee. Bundle Equipment 1.
  • Page 14: Optional Equipment

    At least one or two high quality eyepieces (9mm to 40mm wide-field recommended) depending on the application. For astrophotography, a photo adapter plus a T-Mount connection are necessary. William Optics offers a TMB-designed reducer / field flattener optimized for the 110mm TMB Triplet APO lens. Also available from WO: WO 2"...
  • Page 15: Recommended For This Scope

    Our 2" Diagonals are what you need for your best observing sessions. Only from William Optics. Z e n i t h S t a r 8 0 I I E D D o u b l e t A P O...
  • Page 16 S W A N E y e p i e c e s U W A N E y e p i e c e s 1.25" Eyepieces Super Wide Angle (72 ). 9mm, 15mm, 20mm focal lengths. 5 elements in 4 groups, fully multi coated. Parfocal.
  • Page 17 B i n o v i e w e r R e d D o t F i n d e r ( R . D . F . ) This very practical r.d.f. comes with a handy, quick-release bracket included in the price.
  • Page 18 4 5 E r e c t i n g P r i s m s 2" 45 Perfect both for astronomical and terrestrial observations. Revolutionary and sophisticated design, extra-smooth feel. 2 " 9 0 High quality prism, coating and finish, for High quality prism, coating and finish, for good correct-image views of celestial good correct-image views of celestial...
  • Page 19 It's ease of use: EAZY TOUCH is the mount need, without sacrificing stability, looks and portability. Made in Switzerland by our partner company AOK, this mount allows you to be ready to go in 5 minutes even with a 4" telescope!
