ZENITHSTAR
103 APO
Owner's Manual ver. 1.0
2018.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zenithstar 103 APO and is the answer not in the manual?

Questions and answers

Related Manuals for William Optics Zenithstar 103 APO

Summary of Contents for William Optics Zenithstar 103 APO

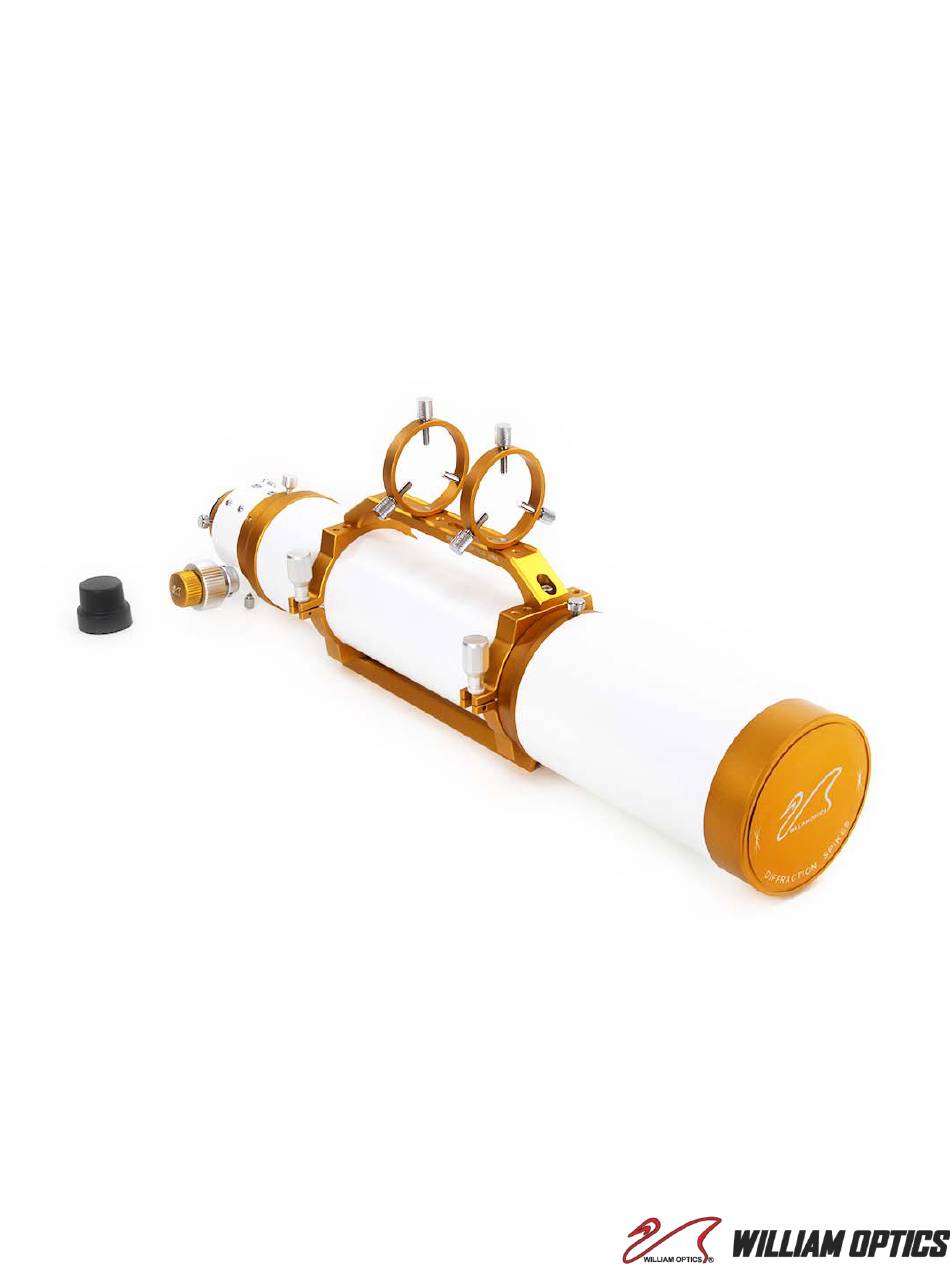

  • Page 1 ZENITHSTAR 103 APO Owner’s Manual ver. 1.0 2018.09...

  • Page 2: Table Of Contents

    Contents Specification Package Contents Tools necessary for this scope Telescope Diagram Accessories Map...

  • Page 3: Specification

    Specification Aperture 103mm Focal Ratio F/6.9 Focal Length 711mm Image Circle Z103 with Flat 6A II Φ 43mm Limiting magnitude 10 Synthetic Flourite FPL 53 Doublet, Air Spaced, APO Objective Type Fully Multi-Coated, SMC coating. Lens Shade Retractable 2.5”R&P Ultra robust focuser Focuser with 1:10 Dual Speed micro focuser Field Stops...

  • Page 4: Package Contents

    Package Contents [2] Guiding Rings [1] 2.5” R&P Focuser [4] Innovative Bahtinov Mask Cover (Patented) [3] CNC Carry Handle Bar [6] Long Vixen Style Dovetail Plate [5] Mounting Rings Tools necessary for this scope 5.0mm Allen key Your Hands 2.5mm Allen key...

  • Page 5: Telescope Diagram

    3. Main Tube 1. Bahtinov Mask Your Hands Dew Shield Lock Screw Extend 2. Retractable Dew Shield...
  • Page 6 4. Focuser Rotation Locking Screw 5.Draw Tube Tension Adjustment 2.5mm Allen key Your Hands 6. Temperature Gauge 7. 1.25” Adapter...
  • Page 7 9. Vixen Style Bracket Holder Screws for Finder bracket (remove both screws before use) 8. Two inch draw tube locking screws 2.5mm Allen key Your Hands 2.5mm Screw 10. 10:1 Ratio Fine Knob...
  • Page 8 M5x15L 2mm Screw The focuser drawtube smoothness can be adjusted using a 2 mm Allen key and tension should be adjusted ONLY when necessary by progressively tightening the screw until you reach the desired smoothness. NOTE: DO NOT ADJUST IT BEFORE ASKING WO...
  • Page 9 M5x11L 11. Handle & Guiding Rings M5x7L 5.0mm Allen key M5x15L 12. Dovetail & Mounting Rings...

  • Page 10: Accessories Map

    SPL 12.5mm (1.25 inch) Eyepiece 1.25” Dielectric CF Plate SWAN 9mm 1.25” 45 °Ecreting Prism Guiding scope 2.5” M63 Angle Rotator Adjustable Flat6A II T-Mount 2” Diagonal SWAN 33mm 2” to 1.25” Adapter M63 to M48 Photo adapter CCD Camera Equatorial Mount...
