- Page 1 V20231201 Sliding Gate Opener User Manual SGO-0000-01 1400 lb. Complete Kit SGO-EC06-02 1400 lb. Essentials Kit SGO-1801-GY 1800 lb. Home Use Kit Read Carefully Before Use Keep for Future Reference...
- Page 3 PLEASE READ THIS FIRST Thank you for purchasing our sliding gate opener. ® This manual only applies to the following CO-Z products. Name Model Sliding Gate Opener 1400 lb. SGO-0000-01 Sliding Gate Opener 1400 lb. Essentials Kit SGO-EC06-02 Sliding Gate Opener 1800 lb. Home Use Kit...
- Page 4 Audience This manual is intended for adult readers who are capable of independent behavior and autonomy and who possess a basic awareness of mechanical and electrical safety precautions. Users must be fully aware of the mechanical and electrical risks that may be involved in the installation and use of such products before use.
- Page 5 FOR YOUR RECORDS You can record the following information for future reference in case you require service for your automatic gate opener. Model: Date of Purchase: Place of Purchase:...
-
Page 6: Table Of Contents
Contents 1. General Safety Information....................1 2. Product Description ......................2 2.1 Specifications ........................2 SGO-0000-01 ...............................3 SGO-EC06-02 ..............................5 SGO-1801-GY ..............................7 2.2 Package List ........................9 Main Components ............................9 Base Components ............................9 Chain Support Components ........................10 Magnetic Limit Switch Components ......................11 Infrared Sensor (SGO-1801-GY Only) ....................... 11 Optional Accessories for Function Expansion ....................12... - Page 7 6.4 System Powering......................30 6.5 Direction Reversal ......................30 6.6 Limit Switch Magnets......................31 6.7 Fixation ...........................32 6.8 Infrared Equipment Connection (SGO-1801-GY Only) ..........34 6.9 Wire Connection Guidance of Optional Accessories ............35 Warning Light .............................35 Push Button ..............................35 Swipe Card, Digital Keypad, and Other External Devices ................35 Loop Detector .............................36 7.
-
Page 8: General Safety Information
General Safety Information 1. General Safety Information Read the following information carefully before installation and use. This section provides general safety precautions. For particular precautions, consult the dedicated operation instructions related to those tasks. Warning • Any actions or elements not explicitly covered in these instructions are strictly prohibited. •... -
Page 9: Product Description
Product Description 2. Product Description Designed for installation on a slide-to-open single leaf gate, this opener system autonomously manages gate control for seamless vehicle entry and exit from your property. This operator accommodates a range of accessories, which are outlined in Optional Accessories below. Equipped with a safety feature, this operator halts and reverses gate movement upon encountering an obstruction. -
Page 10: Sgo-0000-01
Product Description SGO-0000-01 Main Unit Input Voltage & Freq. 110 V AC 60 Hz Components Motor Type Alternating Current (AC) Motor Coil Material Copper Brushed/Brushless Motor Single-Phase Induction Motor Rated Voltage 110 V AC Rated Current 2.5 A Rated Power... - Page 11 Product Description SGO-0000-01 Functions Motor Thermal Cutoff Gate Operation Operating Time 60 sec. Sliding Speed Slow Start Time Slow Stop Time Obstacle Stop/Reversal Opening: Obstacle Stop / Closing: Obstacle Reversal Auto-Close Timer Range 0–99 sec. Sliding Direction Pedestrian Mode Limit Switch Type...
-
Page 12: Sgo-Ec06-02
Product Description SGO-EC06-02 Main Unit Input Voltage & Freq. 110 V AC 60 Hz Components Motor Type Alternating Current (AC) Motor Coil Material Aluminum Brushed/Brushless Motor Rated Voltage 110 V AC Rated Current Rated Power 270 W Torque 14 N·m Motor Speed 1400 rpm Gear Speed... - Page 13 Product Description SGO-EC06-02 Functions Motor Thermal Cutoff Gate Operation Operating Time 60 sec. Sliding Speed Slow Start Time Slow Stop Time Obstacle Stop/Reversal Opening: Obstacle Stop / Closing: Obstacle Reversal Auto-Close Timer Range 0–99 sec. Sliding Direction Pedestrian Mode Limit Switch Type Magnetic Steel Notification Opening/Closing...
-
Page 14: Sgo-1801-Gy
Product Description SGO-1801-GY Main Unit Input Voltage & Freq. 110 V AC 60 Hz Components Motor Type Alternating Current (AC) Motor Coil Material Copper Brushed/Brushless Motor Single-Phase Induction Motor Rated Voltage 110 V AC Rated Current 2.8 A Rated Power 180 W Torque 26 N·m... - Page 15 Product Description SGO-1801-GY Functions Motor Thermal Cutoff Gate Operation Operating Time 60 sec. Sliding Speed Slow Start Time Slow Stop Time Obstacle Stop/Reversal Opening: Obstacle Stop / Closing: Obstacle Reversal Auto-Close Timer Range 0–99 sec. Sliding Direction Pedestrian Mode Limit Switch Type Magnetic Steel Notification Opening/Closing...
-
Page 16: Package List
Product Description 2.2 Package List Main Components Item Name Qty. Image Main Unit Chain Box Cover Chains Manual Keys Base Components Item Name Qty. Image Base Frame 4-in-1 M6×20 Hex Bolts M6 Hex Nuts M6 Spring Washers... -
Page 17: Chain Support Components
Product Description Base Components (Continued) Item Name Qty. Image M6 Flat Washers M10×45 Hex Bolts M10 Flat Washers M10 Spring Washers M10×80 Anchor Bolts Chain Support Components Item Name Qty. Image Arched U-Bolts Square U-Bolts M6 Hex Nuts M6 Flat Washers M6 Spring Washers Chain Brackets... -
Page 18: Magnetic Limit Switch Components
Product Description Chain Support Components (Continued) Item Name Qty. Image M8 Bolts M8 Hex Nuts M8 Flat Washers M8 Spring Washers Chain Joints Magnetic Limit Switch Components Name Qty. Image Limit Switches (Incl. one M8 Nuts & two ST6×25 Screws) Infrared Sensor (SGO-1801-GY Only) Name Qty. -
Page 19: Optional Accessories For Function Expansion
Product Description Optional Accessories for Function Expansion • Warning Lights (Powered by AC) • Push Button Using components from other suppliers will void the manufacturer’s responsibility • Swipe Card in regard to the automation safety and • Digital Keypad proper operation. Warning •... -
Page 20: Preparation
Preparation 3. Preparation This chapter describes the preparation work that needs to be done before installation. Please carefully read and follow the instructions. Failure to do so may cause unsuccessful installation, shorten the lifespan of your gate, or even result in personal injury and property damage. NEVER install this product in an explosive atmosphere. -
Page 21: Check Installation Conditions
Preparation 3.2 Check Installation Conditions Before you start to install the gate opener, check to ensure that the installation conditions are appropriate. • Ensure your gate fulfills Gate Compatibility in Specifications above. • Ensure your gate’s pillars are firmly secured to the ground with concrete, contributing to stability and reliability when in use. -
Page 22: Prepare Components And Tools
Preparation The opener should: • only be installed on the inside of your gate. • not interfere with your vehicle access. • be installed where it will not collide with the gate frame during movement, leaving at least 11.8 inches (30 cm) from any part. The power line should be covered by PVC conduits (not included), and the external wiring should be buried underground to ensure safe use. -
Page 23: Install Safety Guards
Install Safety Guards 4. Install Safety Guards For your safety, adapt following safety protection measures: • Post at least two warning signs at prominent positions on both sides of your gate. Controls intended for user activation MUST be located at least 10 feet (3 m) away from any •... -
Page 24: Mechanical Installation
Mechanical Installation 5. Mechanical Installation 5.1 Safety Precautions Put on appropriate personal protective equipment such as work gloves and be sure your gate is completely closed. Warning Be careful with any moving parts and avoid close proximity to areas where fingers or hands could be pinched. -
Page 25: Base Component Assembly

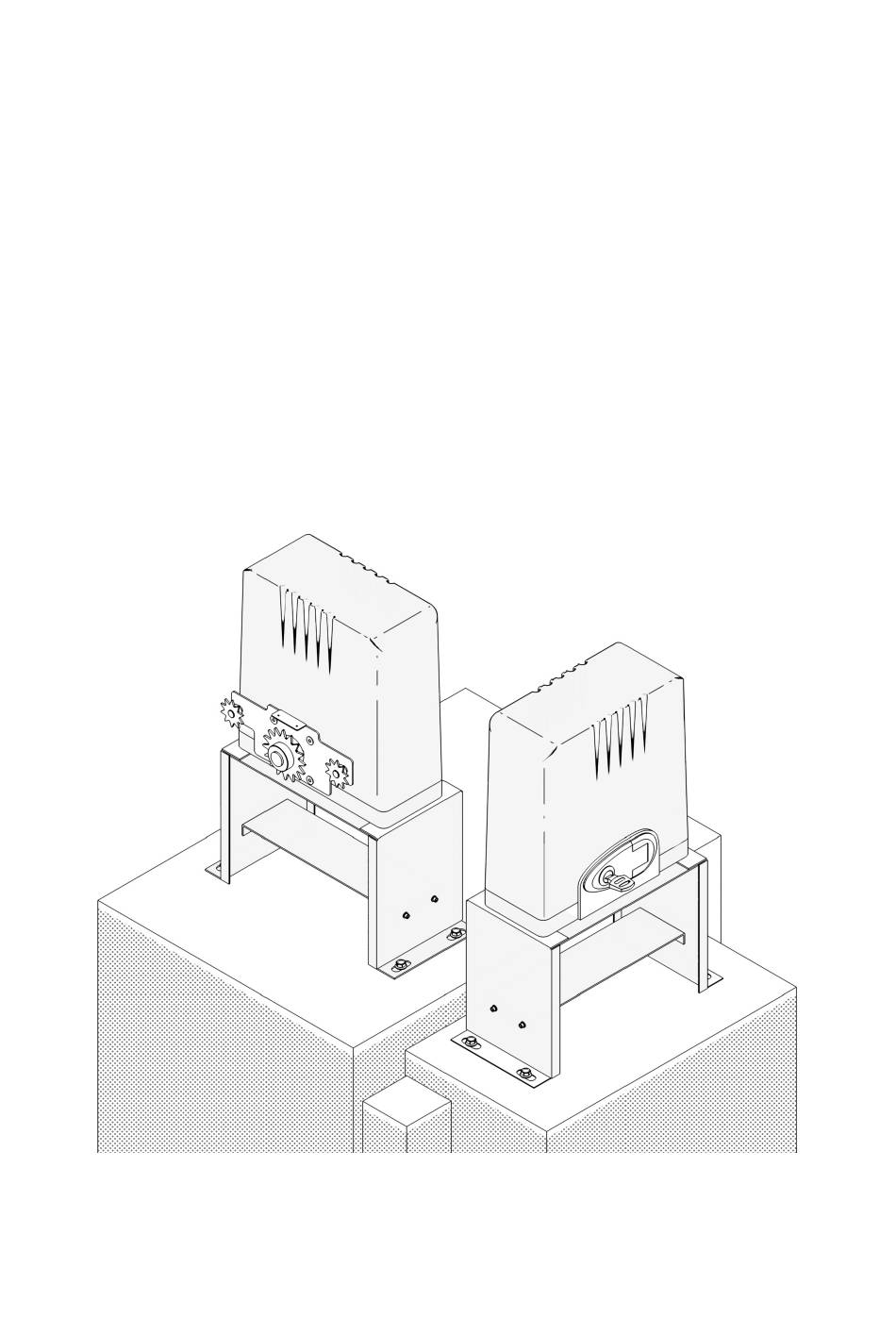

Mechanical Installation 5.2 Base Component Assembly Connect these base components as shown. Parts to be used: • M6×20 Hex Bolts (×4) • M6 Spring Washers (×4) • M6 Flat Washers (×4) • M6 Hex Nuts (×4) 5.3 Base-Main Unit Connection 1. -
Page 26: Chain Installation
Mechanical Installation 5.4 Chain Installation Below is a diagram of chain installation. Idler Wheels Chain Bracket Chain Sprocket Schematic diagrams of chain bracket assemblies installed on square gate frame and round gate frame are shown below. Square Bolt Gate Gate Post Chain Bracket M8 Flat Washer M6 Flat Washer... - Page 27 Mechanical Installation 1. Determine the height of the marked idler wheel using a tape measure (not included). This value represents the mounting height of each chain bracket based upon its horizontal centerline. On your gate, mark the mounting height for both chain brackets. 2.
- Page 28 Mechanical Installation 3. Attach the M8 bolts to the chain brackets as shown. Fine tune the pins on the brackets as needed. • M8 Bolts (×2) • M8 Hex Nuts (×4) • M8 Spring Washers (×4) • M8 Flat Washers (×4) Do not tighten these fasteners completely for now.
- Page 29 Mechanical Installation 5. Install the chain adjacent to the main unit. Connect both ends of the chain using either of the provided chain joints, pressing the clip into place with pliers (not included) as shown. Chain Bolt and Chain Joint Fixation 6.
- Page 30 Mechanical Installation 7. Pull the chain onto the other bracket. Repeat Steps 5–6 to complete the connection and installation. If necessary, fine tune the M8 bolts to achieve your desired positioning. Front View Top View 8. Adjust the nuts on each M8 bolt until your preferred tension is reached. Cut off any excess chain section if needed.
-
Page 31: Chain Test
Mechanical Installation 5.5 Chain Test 1. Unlock the motor to enable manual control mode. This device is equipped with manual control mode. Only activate this mode in case of power loss or for emergency. Note Insert either manual key and turn it 90° clockwise. Then, pull the release lock to its maximum extent and the sprocket is separated from the shaft and is free to rotate. -
Page 32: Electrical Component Installation
Electrical Component Installation 6. Electrical Component Installation Make sure ALL exposed wires are TIGHTLY twisted and FULLY inserted into the terminals WITHOUT loose strands. Warning This chapter introduces electrical connection operations required for installing the gate opener. Please follow the instructions for installation. 6.1 Important Information •... -
Page 33: Control Board Description
Electrical Component Installation 6.3 Control Board Description Overview... -
Page 34: Indicator Lights
Electrical Component Installation Indicator Lights Item Name Description Turns on upon the system’s initialization after power-on and remains on if the system is operating normally System Status (“State”, red) Flashes once every 1 second during the closing countdown Provides instructions including code learning and clearing Radio Frequency (“Rf”, blue) -
Page 35: Control Buttons
Electrical Component Installation Control Buttons Item Name Description Activates the preset mode, causing your Starting Button (“Start”) gate to open, stop, and close alternately Decrease Button (“DEC”) Decreases values Opens setting menus, confirms changes, Function Button (“FUNC”) and saves data Increase Button (“INC”) Increases values Learning Button (“LEARN”) Programs or removing the remote control... -
Page 36: Interfaces
Electrical Component Installation Interfaces Interface Name Description Warning Light Ports Warning light power control (AC power (“Lamp”) output) “Com”: Common terminal of AC motor power supply Motor Communication “Open” and “Close” determine the opening Ports (“Motor”) direction of the gate opener (either right to left, or left to right). -
Page 37: System Powering
Electrical Component Installation 6.4 System Powering This device is compatible with 110V AC 60Hz power sources. 1. Use conduits to protect the electrical cables and then thread one end of the cables connected to the gate opener through the hole in the base. 2. -
Page 38: Limit Switch Magnets
Electrical Component Installation 6.6 Limit Switch Magnets This product employs magnetic limit switches to achieve distance limitation of a gate’s movement during the process of opening or closing. After the gate reaches its intended position, its motor automatically stops. This product includes two magnetic components, one in blue and the other one in red, which are corresponding to their identically colored indicator lights—blue for opening and red for closing. - Page 39 Electrical Component Installation 1. Install the gate-open and gate-close limit switch magnets separately on the magnet bracket. You can adjust their positions as needed during the subsequent processes. 2. Install the gate-close limit switch magnet. Close the gate completely and determine the exact position for installation.
-
Page 40: Fixation
Electrical Component Installation Right-Slide Opening Gate-Close Magnet Gate-Open Magnet Left-Slide Opening Gate-Close Magnet Gate-Open Magnet 6.7 Fixation Mark the locations of the mounting holes and then place everything in a safe place nearby. The motor must be firmly secured for safe use. Do not attempt to use it when the base is loose or only secured to thin pavement. - Page 41 Electrical Component Installation If the area is covered by concrete that is no less than 10 inches (25 cm) thick, drill four matching holes and fasten the base to the ground using the provided anchor bolts. Necessary Tool and Fastener: •...
-
Page 42: Infrared Equipment Connection (Sgo-1801-Gy Only)
6. Secure the casing of the transmitter and receiver using their locking bolts. If you have purchased SGO-0000-01 and SGO-EC06-02, you can optionally install an infrared sensing device as needed. The wiring methods provided above are for your reference, but for specific installation instructions and precautions, follow the manual provided with the infrared equipment you have purchased. -
Page 43: Wire Connection Guidance Of Optional Accessories
Electrical Component Installation 6.9 Wire Connection Guidance of Optional Accessories Warning Light You can choose to connect a warning light to Ports 1 and 2. When the gate is in motion, the light will flash. When the gate stops, the light will turn off. Flashing Light Push Button You can also use an additional manual switch (push... -
Page 44: Loop Detector
Electrical Component Installation Loop Detector You can install a loop detector (i.e., vehicle detector or ground sensor) to enhance the convenience of using the gate opener. If the gate opener receives a signal from the loop detector when your gate is opening or at its fully open position, it will hold the gate where it is. -
Page 45: Operation
Operation 7. Operation 7.1 Remote Control Description The system can support 120 remotes at most. Each of the provided remote control is as below. The remote control applies three-button control mode by default and can be toggled to single-button control mode. Refer to Function Configuration—Advanced Configuration—... -
Page 46: Infrared Obstruction Feedback
Operation Infrared Obstruction Feedback The transmitter emits infrared light. If an obstacle is encountered, some of the infrared light will be reflected to the receiver. While your gate is closing, if the receiver detects an infrared signal, the gate will reverse and reopen until it is in the designated position. 2 seconds after the infrared signal disappears, the gate will automatically close. -
Page 47: Motor Running Protection
Operation Motor Running Protection The motor will automatically stop running after continuous operation for 90 seconds. Manual Mode This mode allows manual operation to replace intelligent control in case of power failure or other unexpected situations. Use the emergency release key for activation or deactivation. ONLY use the emergency release key when the gate is not moving or the device is disconnected from power. -
Page 48: Basic Function Configuration
Operation 7.4 Basic Function Configuration Accessing the Setting Menus Hold FUNC until “P0” is displayed, opening the setting menus. Selecting Menus and Adjusting Values Use INC+ or DEC− to select a menu and increase or decrease a value. Confirming Selections and Saving Changes After adjusting a value, press FUNC to confirm and save your change. -
Page 49: Travel Learning
Operation Travel Learning While the system is at its closing limit position, hold INC and DEC simultaneously until a long buzz sounds. The system should automatically cause the gate to open and close once and then a long buzz should go off again, with low-speed and high-speed times being allocated and shown on the digital display. - Page 50 Operation Parameter Adjustment Custom Default Parameter Function Description Remark Value Value Auto-close time in 0: Off 0–99 standard mode 1: Minimum value required (sec.) Auto-open time in 0: Off 0–20 pedestrian 1: Minimum value required mode (sec.) Remote control 0: Three-Button Control 0 &...
-
Page 51: Troubleshooting
Troubleshooting 8. Troubleshooting If any component of the system is known or suspected to malfunction or be improperly adjusted, DO NOT use before professional servicing is completed. Using with malfunctional or improperly adjusted components may pose safety risks. The following table outlines common problems and their respective standard solutions. Consult this table to address any encountered problems as needed. - Page 52 Troubleshooting Problems Possible Causes Usual Solutions Check that the power supply is Power failure working properly. Seek professional assistance if necessary. Reposition the two magnets and try again. If this fails, hold the magnets against the limit switches and test using a Limit switch failure multimeter.
- Page 53 Troubleshooting Problems Possible Causes Usual Solutions Incorrect installation of limit Correct their positions and try again. The gate stops switch magnets moving before fully Direction mismatch for a Adjust cable connection opening and does left-slide-open gate according to Direction Reversal. not return to its Enlarge the distance between the original position...
-
Page 54: Maintenance
Maintenance 9. Maintenance • Keep the gate opener clean. Disconnect this device from power and remove dirt or dust from its external surface using a soft cloth wetted with water or a mild cleaning solution. Do not use harsh abrasive or caustic chemicals and do not allow any electrical components to become wet. - Page 55 Maintenance Record Record Record Item Result Date Result Date Result Date Lubrication for moving parts Loose anchor bolts Loose or corroded wiring Proper earthing and termination Obstacle stop/reversal function Record Record Record Item Result Date Result Date Result Date Lubrication for moving parts Loose anchor bolts Loose or corroded wiring Proper earthing and termination...
-
Page 56: Disposal
Disposal & Contact Us 10. Disposal Electrical products should not be disposed of with household products. In the EU and UK, according to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation in national laws, used electrical products must be collected separately and disposed of at the collection points provided for this purpose.
