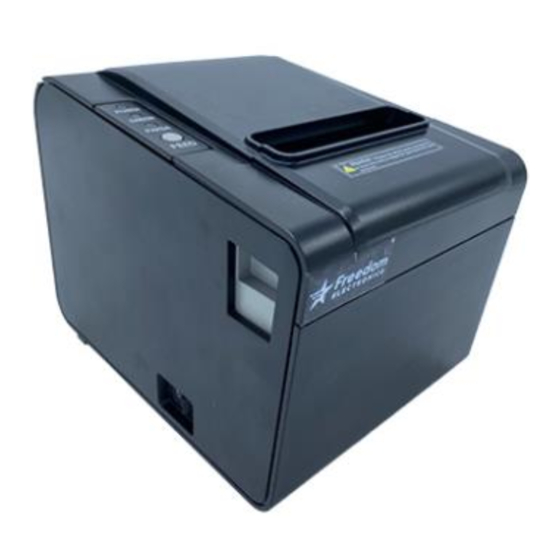

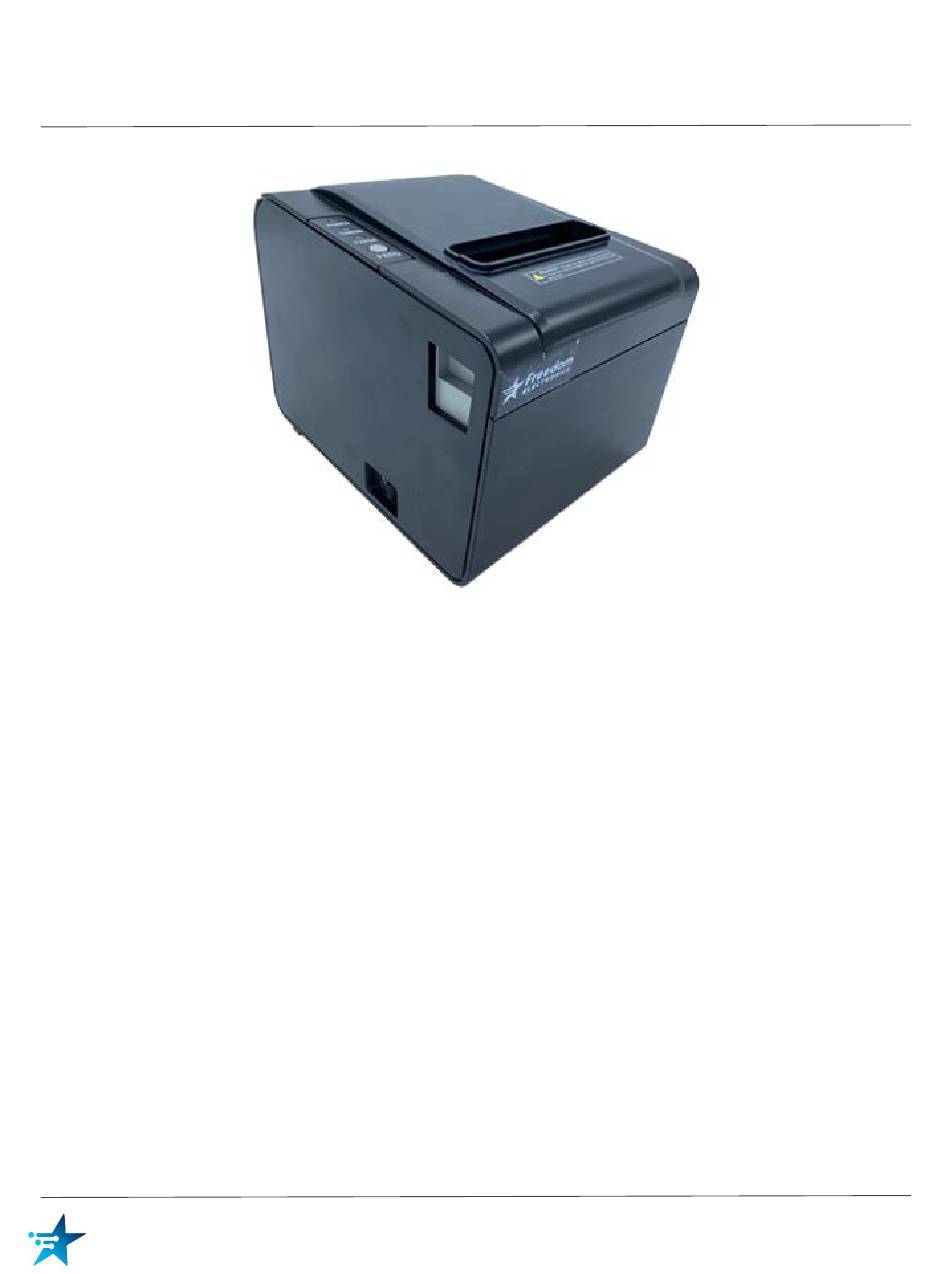

- Page 1 Thermal Receipt Printer for Verifone POS User’s Guide Rev 1 ● 12/2023 Part # FE-P040-02-030 Description Freedom Electronics Thermal Printer for Verifone POS Model Topaz, Ruby2, C18 Freedom Electronics: FE-P040-02-030...
-
Page 2: Table Of Contents
Freedom Electronics Verifone POS Printer Table of Contents 1. Connecting to a Verifone Console……………………………………………………..…...3 2. Loading Paper…………………………………………………...…………………………...4 3. Keys and Indicators………………………………...……………………………………..…5 4. Self-Test Print………………………………………………………..………..…....5 5. Cleaning the Print Head………………………………………..…………………...………6 6. Cleaning the Paper Sensor…………….…........………..………….7 7. Cleaning the Rubber Roller……………………….……………........8 8. Release the Jammed Cutter......…………..……………..…...……….9 ATTENTION: •... -
Page 3: Connecting To A Verifone Console
Freedom Electronics Verifone POS Printer 1. Connecting to a Verifone Console (1) Connect the power cable to the printer either using the auxiliary power port/cable from the console or the provided power supply. (2) Connect the serial cable to COM4(or applicable port) on the Verifone console and the other end(DB9 connector) to the printer at the serial interface connector. -
Page 4: Loading Paper
Freedom Electronics Verifone POS Printer 2. Loading Paper (1) Open the upper cover of the printer. (2) Insert the roll of paper as shown in illustration 1. (3) Pull out some paper and close the cover as shown in illustration 2 and 3. -
Page 5: Keys And Indicators
Freedom Electronics Verifone POS Printer 3. Keys and Indicators POWER Indicator (green) On when power is applied. Flashing when WIFI interface is enabled, but no connection. EROR Indicator (red) Flashes when paper low, paper jam, printer head is overheating, printer heat error, or other abnormalities. -
Page 6: Cleaning The Print Head
Freedom Electronics Verifone POS Printer 5. Cleaning the Print Head When to clean the print head: 1) Printing is not clear. 2) A vertical column of the printed edge is not clear. 3) The paper feeding noise is high. How to clean the print head: 1) Disconnect power from the printer, open the upper cover and remove the paper. -
Page 7: Cleaning The Paper Sensor
Freedom Electronics Verifone POS Printer 6. Cleaning the Paper Sensor When to clean the paper sensor: 1) While printing, the printer may stop printing and alarm for paper low. 2) The printer does not give paper low alarms. How to clean the paper sensor: 1) Disconnect power from the printer, open the upper cover and remove the paper. -
Page 8: Cleaning The Rubber Roller
Freedom Electronics Verifone POS Printer 7. Cleaning the Rubber Roller When to clean the Rubber Roller: 1) Printing is not clear. 2) A vertical column of the printed edge is not clear. 3) The paper feeding noise is high. How to clean the Rubber Roller: 1) Disconnect power from the printer and open the upper cover. -
Page 9: Release The Jammed Cutter
Freedom Electronics Verifone POS Printer 8. Release the Jammed Cutter When the cutter is jammed, and the upper cover of the printer cannot be opened: (1) Cycle power to the printer to attempt to reset the cutter. If the jammed cutter does not reset: (1) Disconnect power from the printer.
