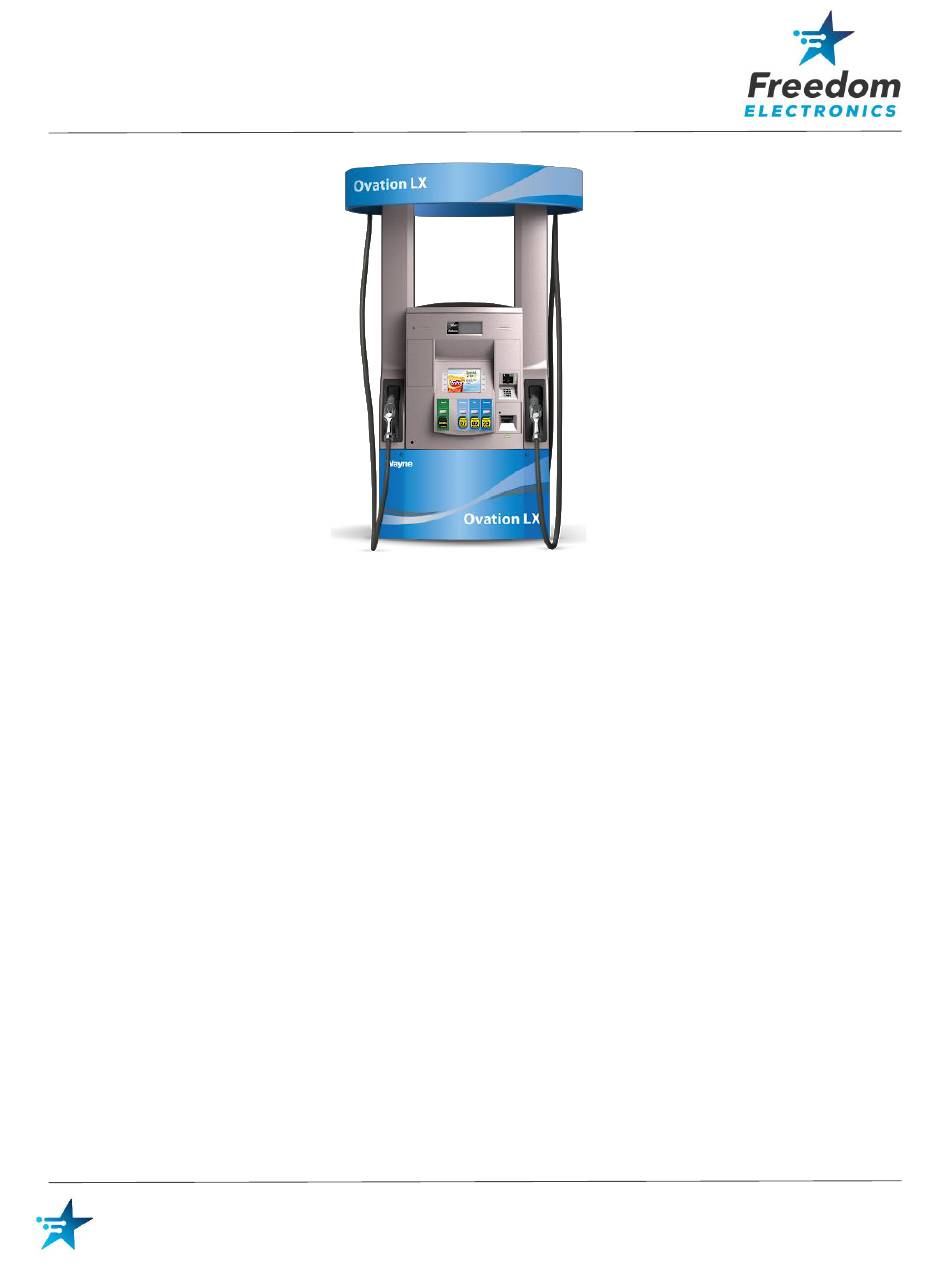

FE-22 Printer
Installation Manual

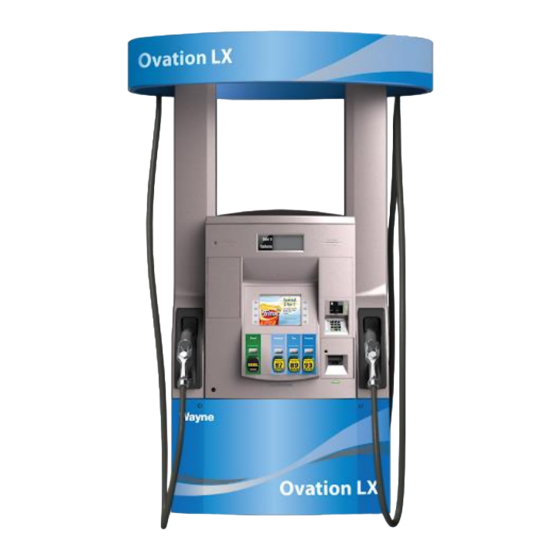

Replacing the Wayne Ovation
the Freedom Electronics FE-22 Printer.
This kit will upgrade printers on Ovation 1 dispensers only.
The Ovation 2 dispensers are currently not supported.
Freedom Electronics: FE-22 Install
Rev 4 • 3/2022
Kit #
Description
Model
®
printer using
FE-22 New
FE-22 Install
Ovation 1 Dispenser
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Freedom ELECTRONICS Wayne Ovation FE-22
Summary of Contents for Freedom ELECTRONICS Wayne Ovation FE-22
- Page 1 FE-22 Printer Installation Manual ® Replacing the Wayne Ovation printer using the Freedom Electronics FE-22 Printer. Rev 4 • 3/2022 Kit # FE-22 New Description FE-22 Install Model Ovation 1 Dispenser This kit will upgrade printers on Ovation 1 dispensers only.
-
Page 2: Parts List
FE-22 Security Kit Manufacturer Part# Description Quantity FW00014 Protective Shield 97975A205 Protective Shield Screws Tools Required • Flat Head screwdriver • 8-inch file • Phillips® Screwdriver • Hand saw • 1/4” Nut Driver • Pliers • Cutters/dykes Freedom Electronics: FE-22 Install... - Page 3 Knowledge of all related manufacturer procedures, manuals and documents is important. Follow the Recommended Practices of The American Petroleum Institute (API). Understand the specific procedures before starting work. If you do not understand a procedure, call Freedom Electronics at 770-792-8888. Notify Site On arrival identify yourself to the site manager and inform them of the work you will be performing.
- Page 4 5. If the dispenser has a contactless reader on the cash acceptor panel as shown to the right, then disconnect the contactless reader cable from iX board”. 6. Remove the cash acceptor panel by removing the (6) screws marked in yellow. Freedom Electronics: FE-22 Install...
- Page 5 9. Install the Printer Door Overlay (FW00008) and Printer Door Frame Overlay (FW00009). 10. Disconnect and remove the OEM printer power cable. 11. Disconnect and remove the OEM printer data cable. Printer power cables connections at distribution board Freedom Electronics: FE-22 Install...
- Page 6 FE-22 printer as shown. 18. Route the grounding cable along with the other cables and attach it to a grounding point in the dispenser. Power Data 19. Secure the cables with zip ties. FE-22 Power & Serial connections Freedom Electronics: FE-22 Install...
- Page 7 FW00013 panel 25. Install the provided Contactless Panel Overlay (FW00012). 26. Connect the Contactless Reader Extension Cable (FC00012) to the reader and reconnect it to the iX board. Contactless panel mounted on OEM printer opening Freedom Electronics: FE-22 Install...
- Page 8 34. Open the printer door and make sure there are not any obstructions and close the printer door when done. 35. Finally make sure that there are no errors displayed on the POS system inside the store. Freedom Electronics: FE-22 Install...
-
Page 9: Additional Information
Jumper settings for FE-22 printer ❑ Wayne Ovation dispenser with SPM: ▪ JP1-JP4 at RS232 position ▪ JP5-JP7 at RS232 position ❑ Wayne dispenser with QCAT ▪ JP1-JP4 at TTL position ▪ JP5-JP7 at RS232 position Freedom Electronics: FE-22 Install...
