FE-12 Printer
Installation Manual

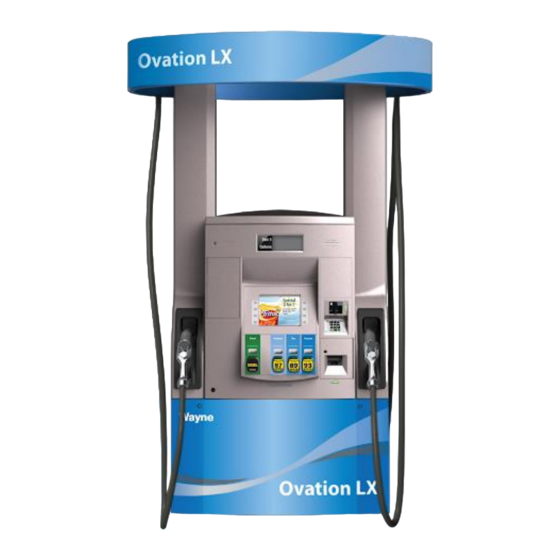

Replacing the Wayne Ovation 1 DW10/12 and Clamshell
printer using the Freedom Electronics FE-12 Printer.
This kit will upgrade printers on Ovation 1 dispensers only.
The Ovation 2 dispensers are currently not supported.
Freedom Electronics: FE-12 Install
Rev 4.1 • 3/2022
Kit #
Description
Model
FE-12 New
FE-12 Printer Install
Ovation 1 Dispenser
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Freedom ELECTRONICS FE-12 New
Summary of Contents for Freedom ELECTRONICS FE-12 New
- Page 1 FE-12 Printer Installation Manual Replacing the Wayne Ovation 1 DW10/12 and Clamshell printer using the Freedom Electronics FE-12 Printer. Rev 4.1 • 3/2022 Kit # FE-12 New Description FE-12 Printer Install Model Ovation 1 Dispenser This kit will upgrade printers on Ovation 1 dispensers only.
- Page 2 Freedom FE-12 printer assembly FE-12 Gasket FE-12 Printer Gasket Tools Required • Ovation 1 main door key • Ovation 1 printer door key • Flat Head screwdriver • Phillips Screwdriver • 1/4” Nut Driver • Cutters/dykes Freedom Electronics: FE-12 Install...
- Page 3 Knowledge of all related manufacturer procedures, manuals and documents is important. Follow the Recommended Practices of The American Petroleum Institute (API). Understand the specific procedures before starting work. If you do not understand a procedure, call Freedom Electronics at 770-792-8888. Notify Site On arrival identify yourself to the site manager and inform them of the work you will be performing.
- Page 4 OEM DW/Clamshell printer from the dispenser door. 8. Remove the top and bottom brackets from the OEM DW/Clamshell printer. 9. Attach the top and bottom brackets removed from OEM DW/Clamshell printer to the FE-12 printer. BOTTOM Freedom Electronics: FE-12 Install...
- Page 5 16. Insert the paper into the printer mechanism and close the paper guide. As soon as the sensor in the paper guide detects paper, the controller starts the automatic paper insertion. Freedom Electronics: FE-12 Install...
- Page 6 FE-12 printer without any obstructions and close the printer door when complete. 23. Make sure that there are no errors displayed on the POS system inside the store. Freedom Electronics: FE-12 Install...
- Page 7 Jumper settings for FE-12 printer ❑ Wayne Ovation dispenser with SPM: ▪ JP1-JP4 at RS232 position ▪ JP5-JP7 at TTL position ❑ Wayne dispenser with QCAT ▪ JP1-JP4 at TTL position ▪ JP5-JP7 at TTL position Freedom Electronics: FE-12 Install...
