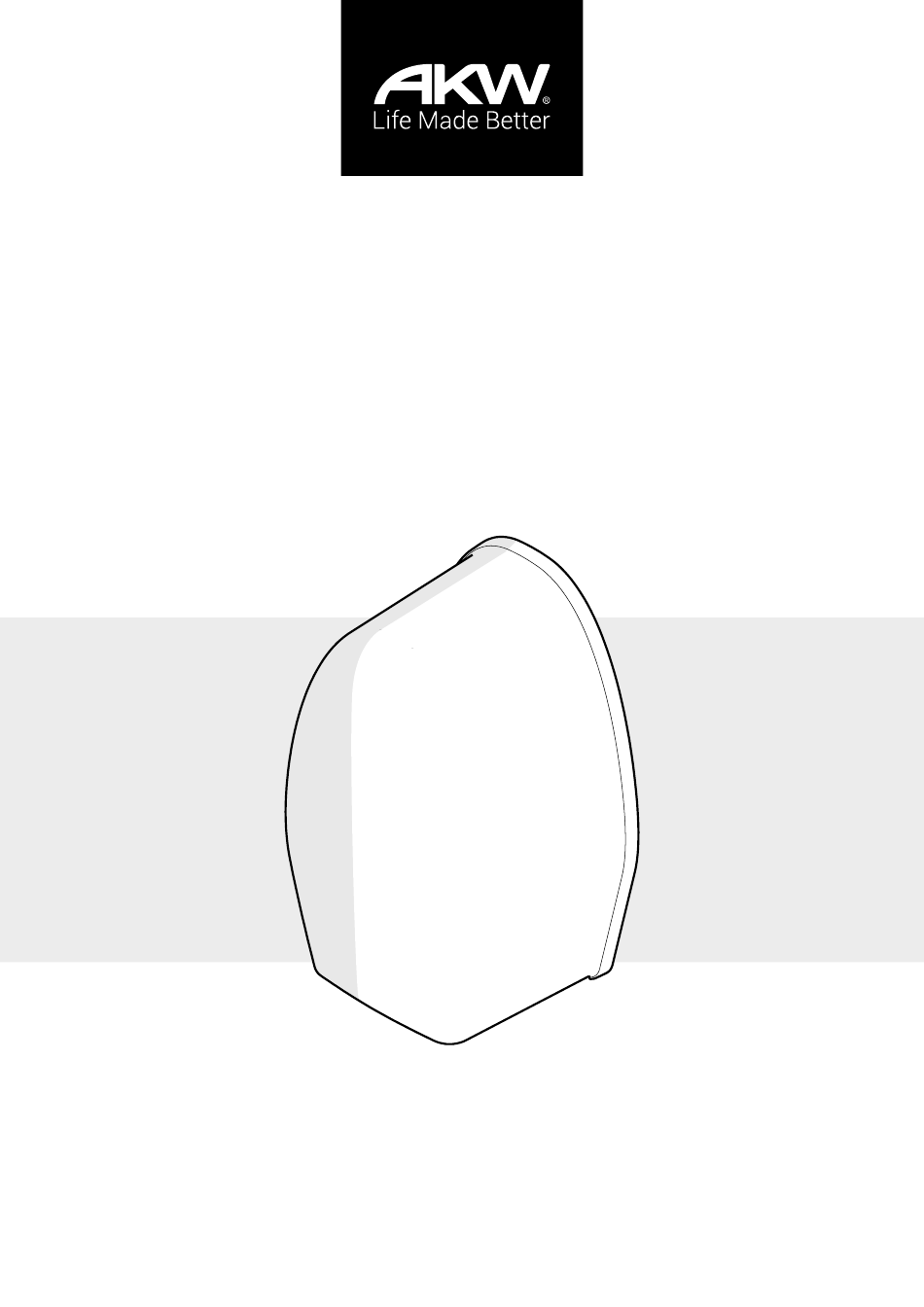

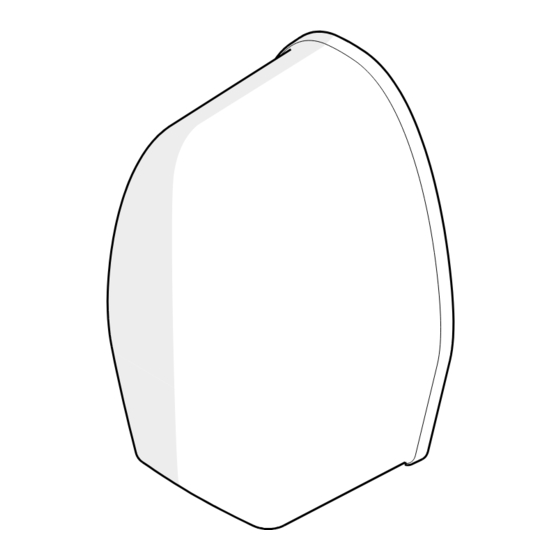

- Page 1 P12 Shower Waste Pump INSTALLATION MANUAL Please read all instructions before installation and leave this document with the end user for future reference as it contains important warranty information...
-
Page 2: Table Of Contents
Main Components ................................5 Plumbing Zone ..................................6 Preparing the Pump ................................7 Plumbing Connections ..............................8 - 9 Setting flow Direction ...............................10 electrical Installation ................................11 Commissioning Checks ..............................12 Troubleshooting ................................13 - 14 notes .....................................15 Contact Us ...................................16 General: 01905 823 298 www.akw-ltd.co.uk... -
Page 3: Specification
Specification P12 Shower Waste Pump Specification electric Shower Shower Compatibility Mixer Shower Maximum Capacity 12 lpm Ingress Protection IPX4 Inlet Connectors 22 mm outlet Connectors 22 mm Max. outlet head Max. Inlet lift 350 mm Variable Speed Yes (with P12D Controller) -
Page 4: Dimensions
Dimensions 133.2 92.0 209.5 Mounting Dimensions General: 01905 823 298 www.akw-ltd.co.uk... -
Page 5: Main Components
Wall Plate assembly Pump P12 flexible Installation Kit - Standard (see page 8) Confirm you have all the correct parts required. Ensure the volume of water from the shower does not exceed the pumps drainage capacity. note: Increased Head/lift conditions will affect the pump’s performance. -
Page 6: Plumbing Zone
If the shower has no tray then zone 1 extends to 1.2m around the fixed shower head. Zone 2 is the area extending 0.6m beyond Zone 1 and up to the same height as Zone 1. Diagram for guidance only - please refer to bS7671 for further details. General: 01905 823 298 www.akw-ltd.co.uk... -
Page 7: Preparing The Pump
Use all the screw fixing positions. Mount the backplate to the finished surface and attach pump component. ensure it is secure by locking the pipe connectors, closing the bracket and tightening the bolt. Order: 01905 823 299 orders.akw-ltd.co.uk Technical Support: 01905 560 219... -
Page 8: Plumbing Connections
Plumbing Connections P12 Flexible Installation Kit - Standard (Stock Code: 05PP21) Item No. Title Qty. 3 m flexible Hose Ø43 mm Straight Solvent Weld Coupler abS 22 mm Pipe flexible Hose Collar Pipe Coupling Kit note: Item 1 will need cutting down to create two hoses. - Page 9 MINIMISE PIPEWORK LENGTH WHEREVER POSSIBLE. DO NOT LEAVE EXCESS PIPE COILED UP BENEATH SHOWER TRAY Important: pipe connections must be easily accessed and pipework must be secured to prevent vibration and noise. Order: 01905 823 299 orders.akw-ltd.co.uk Technical Support: 01905 560 219...
-
Page 10: Setting Flow Direction
Select the direction using the table shown and connect the a to a and b to b left to Right pump cable to the P12 using the spades and wire end to the control interface. b to a and a to b... -
Page 11: Electrical Installation
Wired connection option - Showers with pump control output Mains Supply Consumer unit Wireless Pump Interface option - 30ma RCD compatible aKW showers only 5a double-pole electric Shower un-switched fused spur Controller and Pump Mixer Shower Isolating valves... -
Page 12: Commissioning Checks
Thoroughly clean out waste Confirm shower water supply pipework is flushed before connecting to the shower switch via the filter Refer to Controller Manual for Controller Commissioning General: 01905 823 298 www.akw-ltd.co.uk... -
Page 13: Troubleshooting
Replace unit. Pump flow rate Incorrect controller Refer to controller manual for correct settings. too fast/too setting(s). slow or delay time/run-on time too long/ too short. Continued... Order: 01905 823 299 orders.akw-ltd.co.uk Technical Support: 01905 560 219... - Page 14 If oK, check installed pipework from pump. flow direction reversed. Swap polarity of electrical connection to pump. faulty Pump. Replace unit. General: 01905 823 298 www.akw-ltd.co.uk...
-
Page 15: Notes
Order: 01905 823 299 orders.akw-ltd.co.uk Technical Support: 01905 560 219... -
Page 16: Contact Us
If the issue is still Follow us on Social: unresolved, contact AKW Technical Enquiries who will provide further advice and arrange for a maintenance engineer to visit if necessary. none of the foregoing affects your statutory rights.
