CyberPower CP1200EIPFCLCD Function Setup Manual

FUNCTION SETUP GUIDE
CP1200EIPFCLCD/CP1350EPFCLCD/CP1600EPFCLCD
Power On: Press the POWER button for approximately 2 seconds and you will hear
a short steady tone (1 second). Release the button after a short beep.
Power Off: Press the POWER button for approximately 2 seconds and you will hear
a short steady tone (1 second). Release the button after 2 short beeps.
(DISPLAY Button):
(1) ( ): Short press the button to scroll down the function / option menu and
view the information about the UPS.
(2) LCD On/Off: The default setting is the off position. The LCD display will dim if
the buttons are not touched in 60 seconds. In Line Mode, press the button for 2
seconds to keep the LCD display always on. The LCD display will illuminate (and
beep once). Press the button again for 2 seconds to turn off the LCD display. The
LCD display will be off (and beep twice).
In battery mode, the LCD is always on regardless of the settings.
(MUTE Button):
(1) ( ): Short press the button to scroll up the function / option menu and view the information about the UPS.
(2) Audible Alarm: Press the button for 2 seconds to enable the audible alarm (beeps once) or disable (beeps twice) the
audible alarm. The MUTE icon will appear on the LCD display when the audible alarm is disabled.
Note: The default setting for the alarm is the on position.
ENTER (SETUP Button):
Setup Mode: Press the button for 2 seconds to access the setup mode's 10 functions: Utility quality, High Transfer Voltage,
Low Transfer Voltage, Sensitivity, Low Battery Warning, Self Test,
Return to Status Display.
Short press the button ( ) or ( ) to view the functions. When a function is selected, short press the ENTER button to
access the function's options.
Short press the button ( ) or ( ) to view the options. When the desired option is selected, short press the ENTER
button to confirm the setting.
Note: If there is no action for 30 seconds during setup, the LCD will leave setup mode and go back to the status display.
The setting will not be confirmed.
DISPLAY + SETUP Button:
Press both buttons at the same time for 2 seconds will clear the EVENT counter (and beep twice).
You can also clear the EVENT counter in setup mode.
Refer to the following table for a detailed list of functions and their descriptions.
K01-0001038-00
LCD Test, Event Reset, Return to Default Settings, and
1

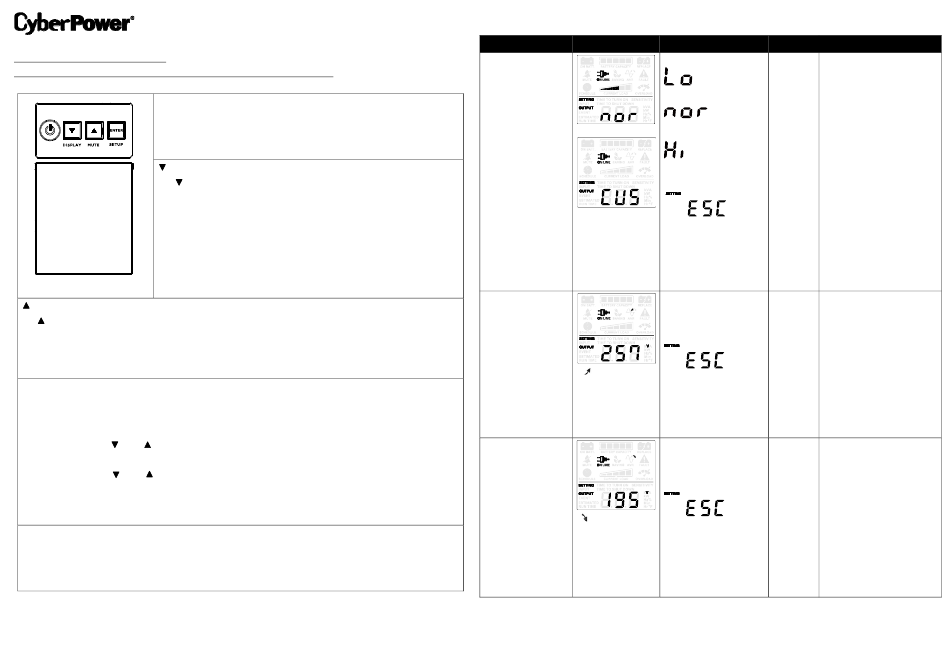

Function LCD Display
Utility Quality
(CUS)*
* Custom Setting:
Only when Low or
High Transfer Voltage
is configured.
High Transfer Voltage
* = fine tune the
MAX O/P voltage
Low Transfer Voltage
* = fine tune the
MIN O/P voltage
Options Default
Low (189V~271V) Normal Select the voltage quality of
the input utility power. If
High(207V~253V) is selected,
Normal (195V~257V) the UPS will go to the battery
mode more often to supply the
cleanest power to connected
High (207V~253V) devices. If Low(189V~271V) is
selected, the UPS will tolerate
more power fluctuations and
Escape to Function go to battery mode less often.
Menu
253~271 257 In Utility Quality settings, only
3 types of fixed voltage ranges
Escape to Function can be chosen. However, you
Menu can fine tune the MAX O/P
voltage in this function.
If the utility voltage is usually
high, and the connected
equipment can work in this
condition, you can set the
output voltage range higher to
reduce the UPS from going to
Battery Mode as often.
189~207 195 In Utility Quality settings, only
3 types of voltage ranges can
Escape to Function be chosen. However, you can
Menu fine tune the MIN O/P voltage
in this function.
If the utility voltage is usually
low, and the connected
equipment can work in this
condition, you can set the
output voltage range lower to
reduce the UPS from going to
AVR Mode or Battery Mode as
often.
