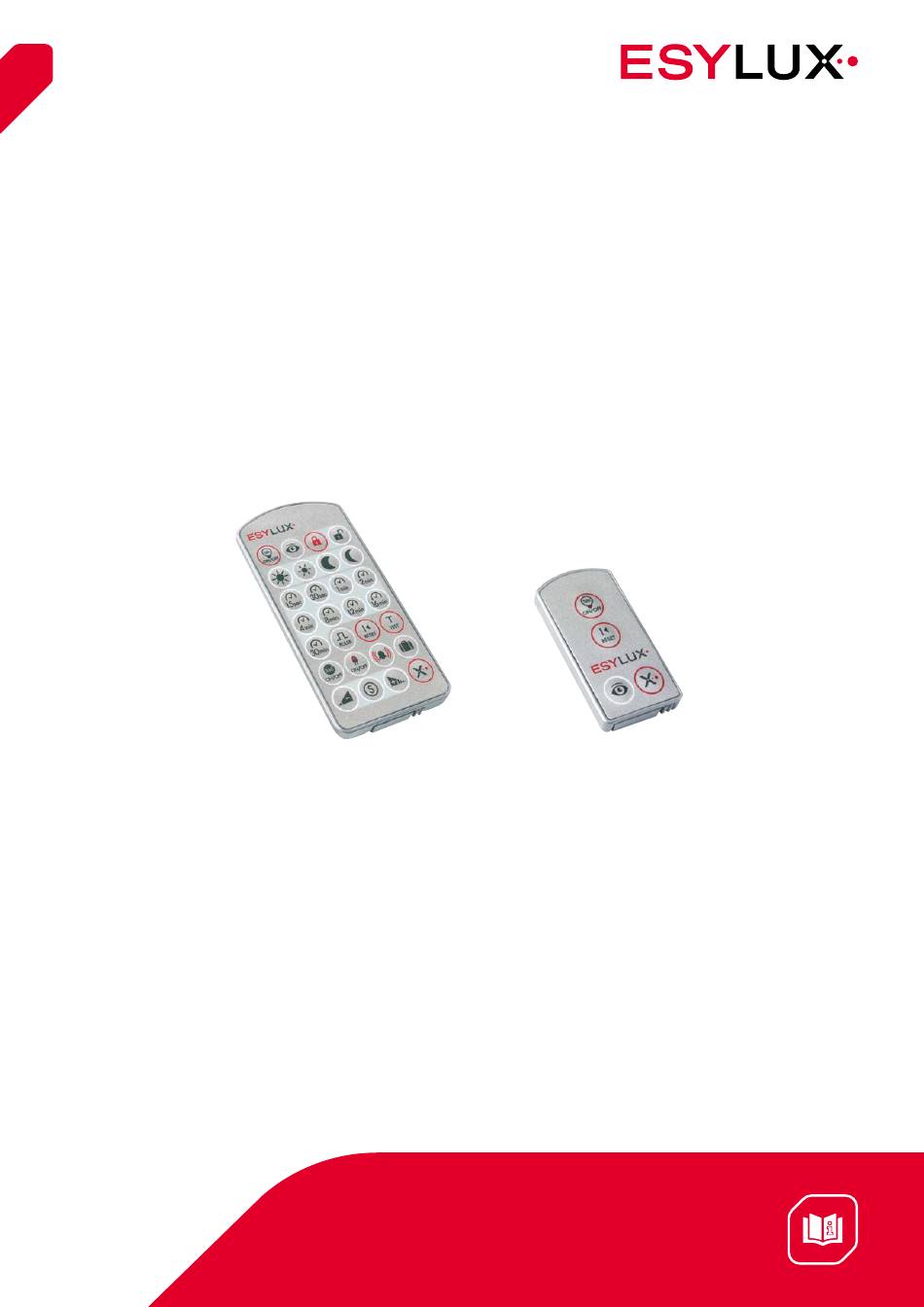

- Page 1 MA00655900 06/2015 Operating instructions Mobil-RCi Mobil-RCi-M EM10016004 EM10016011 ESYLUX GmbH | An der Strusbek 40 22926 Ahrensburg | Germany info@esylux.com | www.esylux.com...
-
Page 2: Table Of Contents
OPERATING INSTRUCTIONS Table of contents Description Safety instructions Operation/functionality Activation Settings Battery Technical drawing Technical data Cleaning Disposal ESYLUX manufacturer's guarantee Mobil-RCi 2 / 9 Mobil-RCi-M... -
Page 3: Description

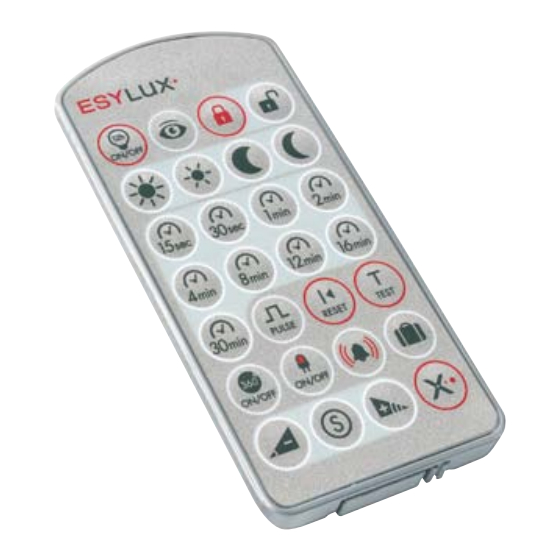

OPERATING INSTRUCTIONS Description The infrared Mobil-RCi and Mobil-RCi-M remote controls enable various parameters to be set easily and conveniently. Note: Use this product only as intended (as described in the operating instructions). The device must not be changed, modified or painted — doing so will void any warranty claims. -
Page 4: Operation/Functionality
Operation/functionality The device's range of approx. 5–6 m enables fast and precise programming without the need for tools or a ladder. For electrical installation technicians The ESYLUX infrared Mobil-RCi remote control is compatible with: • ESYLUX motion sensors RC...i • ESYLUX lamps AL S...i... -
Page 5: Settings
OPERATING INSTRUCTIONS Settings Note: Please note that settings may differ depending on the type of device. Descriptions of the functions of the respective product can be found online on the product page under “Operating instructions”. Options for configuring parameters using the Mobil-RCi 1. Open/close programming mode 2. Assign target brightness 3. Assign switch-off delay for lighting 4. -
Page 6: Battery
OPERATING INSTRUCTIONS Options for configuring parameters using the Mobil-RCi-M 1. Constant lighting for 12 h ON/OFF* 2. Reset configured settings ON/OFF 3. Cancel 12 h ON/OFF or switch-off delay* RESET 4. Storing the current light value *Only activates/deactivates the preset switch-off delay in ceiling presence sensors. Battery If the range is dramatically reduced under normal conditions or if remote setting is no longer possible, the battery may be depleted or empty. -
Page 7: Technical Drawing
OPERATING INSTRUCTIONS Technical drawing Mobil-RCi (wall holder for attachment of the remote control included) 14,5 mm 25 mm 14,5 mm 23 mm 50 mm 9 mm 100 mm Mobil-RCi-M 29 mm 7 mm 56 mm Mobil-RCi 7 / 9 Mobil-RCi-M... -
Page 8: Technical Data
OPERATING INSTRUCTIONS Technical data Mobil-RCi EM10016004 Battery Lithium CR 2032, 3 V Colour silver Mobil-RCi-M EM10016011 Battery Lithium CR 2032, 3 V Colour silver Cleaning No corrosive cleaning agents or solvents may be used for cleaning and care of the device. Please use a lint-free cloth that is either dry or dampened only with water. 9.1 Disposal Note: This device must not be disposed of as unsorted household waste. -
Page 9: 10 Esylux Manufacturer's Guarantee
The guarantor, ESYLUX Deutschland GmbH, Postfach 1840, 22908 Ahrensburg, Germany (for Germany) or the relevant ESYLUX distributor in your country (visit www.esylux.com for a complete overview) provides a guarantee against manufacturing/material defects in ESYLUX devices for a period of three years from the date of manufacture. This guarantee is independent of your legal rights with respect to the seller of the device.
