KaVo Kerr elements e-motion Instructions For Use Manual

Dental motor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions for use
elements e-motion
Dental Motor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the elements e-motion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KaVo Kerr elements e-motion

Summary of Contents for KaVo Kerr elements e-motion

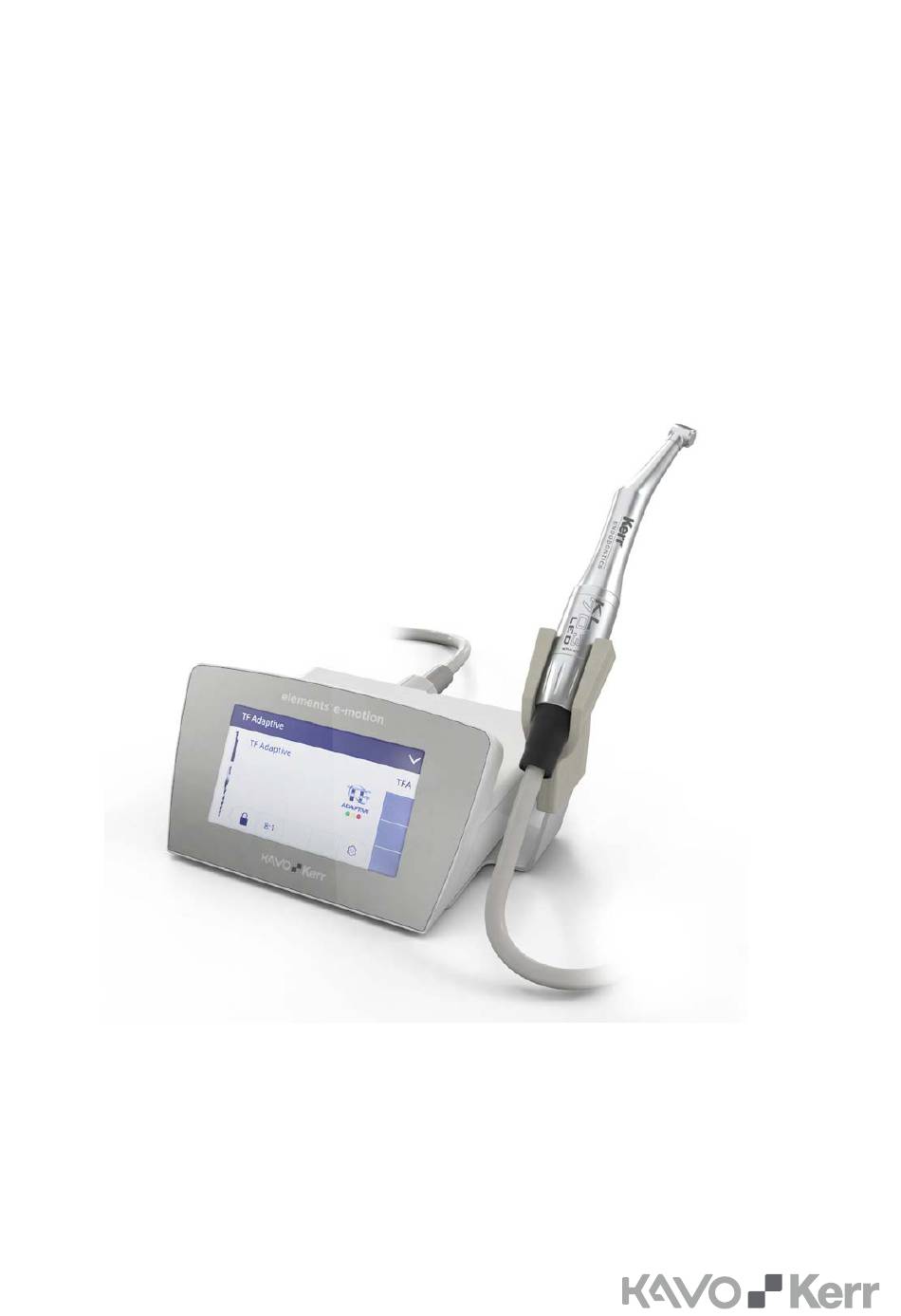

  • Page 1 Instructions for use elements e-motion Dental Motor...

  • Page 2: Table Of Contents

    3.3 Overview of elements e-motion..................16 3.4 Motor cord ........................16 3.5 Control panel ........................ 16 3.6 Technical specifications of the elements e-motion ............. 19 3.7 Symbols on product and rating plate ................20 3.8 Power supply ........................ 22 3.9 Technical specifications of the power supply 1.013.4796............ 22 3.10 Symbols on the nameplate of the power supply ..............
  • Page 3 Instructions for use elements e-motion Dental Motor Table of contents 6.2 Stand-by mode ......................30 6.3 Starting-up the motor ....................31 6.4 Operating the elements e-motion ..................31 6.4.1 Setting the speed....................32 6.4.2 Setting the torque ....................32 6.4.3 Selecting torque mode..................

  • Page 4: User Instructions

    Instructions for use elements e-motion Dental Motor 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first startup to avoid misuse and prevent dam- age. Requirement If other language versions are required, they can be requested from the cor- responding Kerr branch.

  • Page 5: Target Group

    Instructions for use elements e-motion Dental Motor 1 User instructions | 1.2 Target group DANGER In cases which – if not prevented – directly lead to death or severe in- jury. WARNING In cases which – if not prevented – can lead to death or severe injury.

  • Page 6: Transport And Storage

    Instructions for use elements e-motion Dental Motor 1 User instructions | 1.5 Transport and storage The warranty expires if defects or their consequences could possibly have arisen because the product has been modified or changed. Warranty claims can only be asserted when they are immediately reported to Kerr in writing.
  • Page 7 Instructions for use elements e-motion Dental Motor 1 User instructions | 1.5 Transport and storage Caution Temperature limitation Atmospheric pressure limitation Humidity limitation Caution: Federal (USA) law restricts device to sale by or on the order only of a dental professional.

  • Page 8: Disposal

    Instructions for use elements e-motion Dental Motor 1 User instructions | 1.6 Disposal 1.6 Disposal Note Any waste which is generated must be recycled or disposed of in strict com- pliance with all applicable national regulations in a manner which is safe both for people and the environment.

  • Page 9: Safety

    Instructions for use elements e-motion Dental Motor 2 Safety | 2.1 Infection hazard 2 Safety Note All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides.

  • Page 10: Ingress Of Liquids

    Instructions for use elements e-motion Dental Motor 2 Safety | 2.4 Ingress of liquids ▪ Malfunctions ▪ Damage ▪ Irregular running noise ▪ Excessive vibration ▪ Overheating ▪ Endodontic files are not seated firmly in the handpiece Careless setup/installation of the product or accessories can cause injury to pa- tients, users and third parties.

  • Page 11: Qualification Of Personnel

    Instructions for use elements e-motion Dental Motor 2 Safety | 2.6 Qualification of personnel If the transmission ratio selected on the device differs from the transmission ra- tio of the dental instrument, the files may rotate too fast and cause injury.

  • Page 12: Electromagnetic Fields

    Instructions for use elements e-motion Dental Motor 2 Safety | 2.8 Electromagnetic fields 2.8 Electromagnetic fields Electromagnetic fields might interfere with the functions of implanted systems (such as pacemakers). Medical electrical devices are subject to special precautions regarding electro- magnetic compatibility and must be installed and operated in accordance with the tables of electromagnetic compatibility.

  • Page 13: Product Description

    3 Product description | 3.1 Intended use 3 Product description The elements e-motion is a dental treatment unit for endodontic treatments. The elements e-motion consists of the control unit, power supply, power cable, foot control, motor cord, motor, instrument tray, and the elements 8:1 hand- piece.

  • Page 14: Scope Of Delivery

    Instructions for use elements e-motion Dental Motor 3 Product description | 3.2 Scope of delivery 3.2 Scope of delivery Scope of delivery of the elements e-motion: ① Control unit ⑦ elements 8:1 handpiece ② Power supply ⑧ Instrument tray, base plate (preinstalled) ③...

  • Page 15: Overview Of Elements E-Motion

    Instructions for use elements e-motion Dental Motor 3 Product description | 3.3 Overview of elements e-motion 3.3 Overview of elements e-motion Front and rear of the elements e-motion ① Control panel ⑤ Power supply connector ② Control unit ⑥ Motor cord connector ③...
  • Page 16 Instructions for use elements e-motion Dental Motor 3 Product description | 3.5 Control panel Example, display information Pos. Description active/deactivated Presentation Display/toggle switch Torque is deactivated grey font color ① "Speed"/"Torque"* = 3.00 Ncm ② Selection list "File se- KERR ROTARY FILES blue background quence"...
  • Page 17 Instructions for use elements e-motion Dental Motor 3 Product description | 3.5 Control panel Pos. Description active/deactivated Presentation ⑦ Menu "Settings" deactivated Menu "Settings" See also: 2 5.2 Changing the device settings, Page 28 ⑧ Toggle switch "Direc- Clockwise rotation is tion of motor rotation"...

  • Page 18: Technical Specifications Of The Elements E-Motion

    Instructions for use elements e-motion Dental Motor 3 Product description | 3.6 Technical specifications of the elements e-motion 3.6 Technical specifications of the elements e-motion Dimensions of the package Length 525 mm / 20.67" Width 230 mm / 9.06" Altitude 255 mm / 10.04"...

  • Page 19: Symbols On Product And Rating Plate

    Instructions for use elements e-motion Dental Motor 3 Product description | 3.7 Symbols on product and rating plate Mode: intermittent operation Operating time 0.5 minutes Pause time 9 minutes ▶ Do not exceed the threshold load of the motor of 0.5 minutes operating time / 9 minutes pause.
  • Page 20 Instructions for use elements e-motion Dental Motor 3 Product description | 3.7 Symbols on product and rating plate Certification CE mark (Communauté Européenne) VDE mark MET mark Product characteristics Manufacturer Type Device type Serial number Material number Type B applied part...

  • Page 21: Power Supply

    Instructions for use elements e-motion Dental Motor 3 Product description | 3.8 Power supply 3.8 Power supply ① Mains connection ③ Connection cord ② Standby LED display ④ DC connector for elements e-mo- tion 3.9 Technical specifications of the power supply 1.013.4796...

  • Page 22: Symbols On The Nameplate Of The Power Supply

    Instructions for use elements e-motion Dental Motor 3 Product description | 3.10 Symbols on the nameplate of the power supply Requirements Class of protection II with functional earthing Protection class IP 40 Ambient conditions Permissible installation sites Indoor use Permissible ambient temperature...

  • Page 23: Installation

    Instructions for use elements e-motion Dental Motor 4 Installation | 4.1 Location 4 Installation 4.1 Location CAUTION Power supply and cords/hoses are on the floor. Slipping and tripping. ▶ Power supply and cord/hoses need to be set-up/routed appropriately such that they are not on the floor.
  • Page 24 Instructions for use elements e-motion Dental Motor 4 Installation | 4.2 Installing the instrument tray ▶ If preferred, twist the attachment and plug it on. Rotate the base plate ▶ Undo the two screws on the underside of the unit using the Torx T20 offset screwdriver.

  • Page 25: Startup

    INTRAmatic LUX KL703 motor and the power supply (Mat. no. 1.013.4796). 5.1 Connector 5.1.1 Connecting the foot control ▶ Plug the jack of the foot control into the elements e-motion. 5.1.2 Connecting the motor ▶ Slightly wet the O-rings on the connection hose with KAVOspray.

  • Page 26: Connect The Motor Cord

    Instructions for use elements e-motion Dental Motor 5 Startup | 5.1 Connector 5.1.3 Connect the motor cord ▶ Plug the motor cord onto the motor cord connector on the rear of the ele- ments e-motion and screw it tight. 5.1.4 Connect the power supply CAUTION Power supply and cords/hoses are on the floor.

  • Page 27: Changing The Device Settings

    Instructions for use elements e-motion Dental Motor 5 Startup | 5.2 Changing the device settings ▶ Plug the power supply into the socket of the elements e-motion. ▶ Connect the power cable first to the power supply and then to the supply mains socket.
  • Page 28 Instructions for use elements e-motion Dental Motor 5 Startup | 5.2 Changing the device settings Display information Setting The shifting of the files in the file editor can be switched on or off. Press the "ON/OFF" control element to switch the shifting of files in the file editor on or off.

  • Page 29: Operation

    The unit is ready for operation as soon as it is connected. ▶ To switch the product on, connect the device to the power circuit. ð The display of the elements e-motion shows the input values: Display elements e-motion ▶ To switch the device off, unplug the unit from the mains.

  • Page 30: Starting-Up The Motor

    Instructions for use elements e-motion Dental Motor 6 Operation | 6.3 Starting-up the motor 6.3 Starting-up the motor ▶ Press the foot control to start the motor. ð The motor rotates at the speed and motion set on the display.

  • Page 31: Setting The Speed

    Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion Reduction ratio of con- Torque of the file Minimum/maximum tra-angle handpieces attainable torques 1:1 (M20 L with L68 B) 0.1 – 2.0 Ncm 0.1/2.0 Ncm...

  • Page 32: Selecting Torque Mode

    Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion This file has a torque of, e.g., 4.00 Ncm assigned to it. ▶ If the speed is active, activate the torque by touching the torque value.
  • Page 33 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion Autorev / Forward function Note Autorev / Forward function is the default torque mode for all rotary files. Autorev / Forward is active. ▶ Press the foot control.

  • Page 34: File Database

    A notice signal is issued once a level of 90% of the set torque is reached. 6.4.4 File database The elements e-motion possesses an integrated file database. It is necessary to check if the file data are up-to-date by comparing them to the respective man- ufacturer information.

  • Page 35: Selecting A File Sequence

    Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion 6.4.5 Selecting a file sequence ▶ Select the file sequence using the "File sequence" selection list by pressing the desired file sequence (presently KERR ROTARY FILES).
  • Page 36 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion ▶ Tap the "Pen" control element to edit the sequence. ð The display shows file sequence "KERR ROTARY FILES" in editing mode. ▶ Tap the "Pen" control element again to edit the sequence name.
  • Page 37 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion ▶ Tap the third column "File geometry" and shift the column vertically in order to select the file geometry. ð Once the file system and file geometry have been selected, the columns "Torque", "Speed"...
  • Page 38 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion Defining/changing user-defined files By selecting and adapting the data of user-defined files, the user can insert a file system that is not stored in the database into a sequence.
  • Page 39 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion ▶ Tap the "Pen" control element again to edit the file name. ð All other data need to be selected manually by the user. ▶ Assign all other data in accordance with the specifications of the file manu- facturer.
  • Page 40 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion ð The display shows file sequence "CUSTOM SEQUENCE" in editing mode. ▶ Tap the second column "File system" and shift the column vertically until "TF Adaptive" is shown with a blue background.

  • Page 41: Deleting A File Sequence

    Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion ▶ Tap the "Pen" control element to edit the sequence. ð The display shows file sequence "KERR ROTARY FILES" in editing mode. ▶ Select the file to be deactivated.
  • Page 42 Instructions for use elements e-motion Dental Motor 6 Operation | 6.4 Operating the elements e-motion ▶ Confirm the command. ð File sequence with all associated files will be deleted. Note This command deletes the file sequence completely, with name and all files associated with the sequence.

  • Page 43: Decommissioning

    ▶ Unplug the power cable from the device. 7.2 Disconnecting the foot control ▶ Unplug the jack of the foot control from the elements e-motion. 7.3 Unplugging the motor ▶ Unscrew the plug of the motor cord from the connector on the device. Make sure to grasp the plug as close to the device as possible.

  • Page 44: Reprocessing Steps In Accordance With Iso 17664

    ▶ Dampen a soft cloth with tap water or a mild cleaning solution (weak soapy water). ▶ Wipe all external surfaces of the elements e-motion housing and the ex- ternal surfaces of the motor cord with the lightly dampened cloth.

  • Page 45: Disinfection

    Instructions for use elements e-motion Dental Motor 8 Reprocessing steps in accordance with ISO 17664 | 8.2 Disinfection Note The reprocessing steps for the elements 8:1 handpiece or the INTRA LUX motor KL 703 LED are described in the corresponding Instructions for use.

  • Page 46: Storage

    Instructions for use elements e-motion Dental Motor 8 Reprocessing steps in accordance with ISO 17664 | 8.5 Storage Note The reprocessing steps for the elements 8:1 handpiece or the INTRA LUX motor KL 703 LED are described in the corresponding Instructions for use.

  • Page 47: Servicing

    Instructions for use elements e-motion Dental Motor 9 Servicing | 9.1 Replacing the LED lamp of the KL 703 motor 9 Servicing Kerr recommends to use original parts for operation and repair only, since their safety, function, and specific suitability have been tested in extensive tests.

  • Page 48: Replacing The Motor Cord

    ▶ If the motor cord is defective, disconnect the motor cord from the motor and unscrew it and pull it off the rear of the elements e-motion device. ▶ Connect a new motor cord to the device and the motor.

  • Page 49: 10Troubleshooting

    Instructions for use elements e-motion Dental Motor 10 Troubleshooting 10 Troubleshooting Note This product displays error messages and/or instructions optically on its dis- play. The motor is shut off in any case of malfunction. ▶ If the error message does not disappear or the error is reported again, con- tact Service.
  • Page 50 Instructions for use elements e-motion Dental Motor 10 Troubleshooting Malfunction Cause Remedy ▶ Comply with defined operating mode. Event E5 Automatic light and motor shut-off during continuous operation of the motor. ▶ Confirm message and check or correct the pro-...

  • Page 51: 11Accessories And Consumables

    Instructions for use elements e-motion Dental Motor 11 Accessories and consumables 11 Accessories and consumables Description Material number Motor INTRA LUX KL 703 LED 1.007.0150* Motor cord 815-1722 Mini LED for INTRA LUX KL 703 LED 1.007.8474* motor O-ring set 8.3x0.68 for INTRAmatic 0.200.6120*...

  • Page 52: 12Information About Electromagnetic Compatibility

    12.1 Guidelines and manufacturer's declaration - electromagnetic emission The elements e-motion is intended for use in an environment of the kind spe- cified below. The customer or user of the elements e-motion should make sure that the device is used in an environment of the specified type.

  • Page 53: Guidelines And Manufacturer's Statement - Electromagnetic Immunity

    12.3 Guidelines and manufacturer's statement - Electromagnetic immunity The elements e-motion is intended for use in an environment of the kind spe- cified below. The customer or user of the elements e-motion should make sure that the device is used in an environment of the specified type.
  • Page 54 If the measured field strength at the site, at which the elements e-motion is used, exceeds the compliance levels shown above, the elements e-motion should be monitored to demonstrate proper function.

  • Page 55: Recommended Safe Distance Between Portable And Mobile Hf Telecommunications Equipment And The Elements E-Motion

    HF telecommunications equipment and the elements e-motion The elements e-motion is intended for use in an electromagnetic environment in which the HF interference parameters are controlled. The customer or user of the elements e-motion can help prevent electromagnetic interference by main-...
  • Page 58 Manufactured for: Distributed by: Kerr Corporation Kerr Australia Pty. Limited 1717 West Collins Avenue Unit 6, 12 Mars Road Orange CA 92867 Lane Cove West, New South Wales 2066 U.S. Australia +1-800-KERR-123 +61-2-8870-3000 www.kerrdental.com Manufacturer: Importer KaVo Dental GmbH Ormco B.V. Bismarckring 39 Basicweg 20 NL-3821 BR 88400 Biberach...
